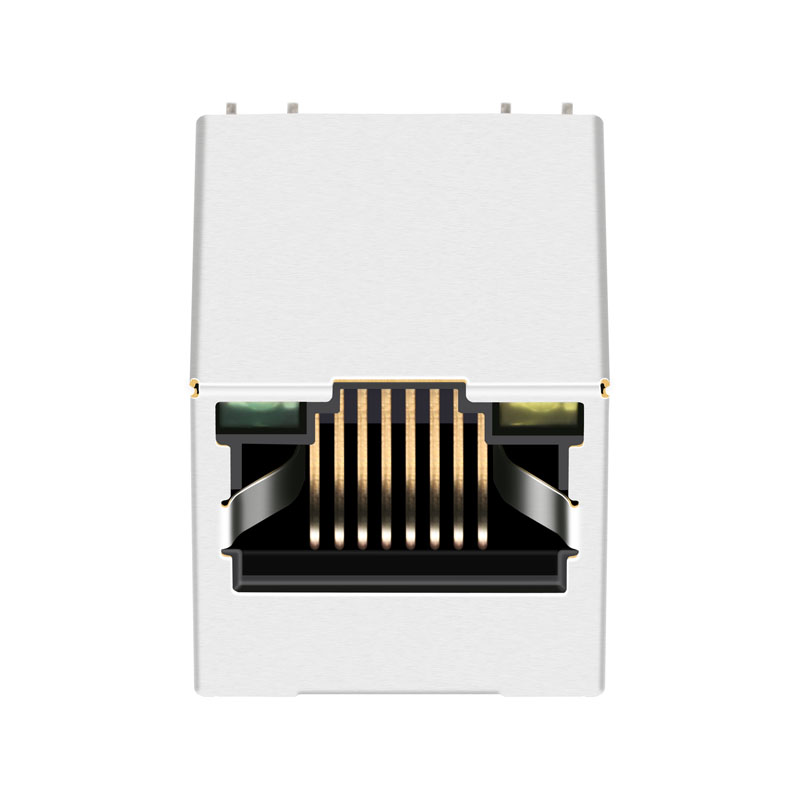

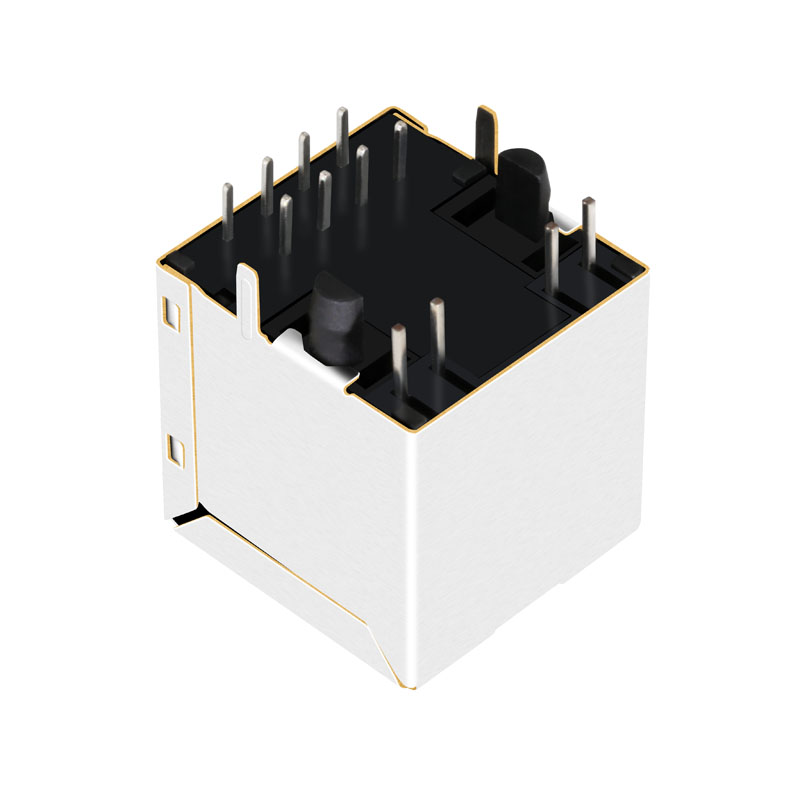

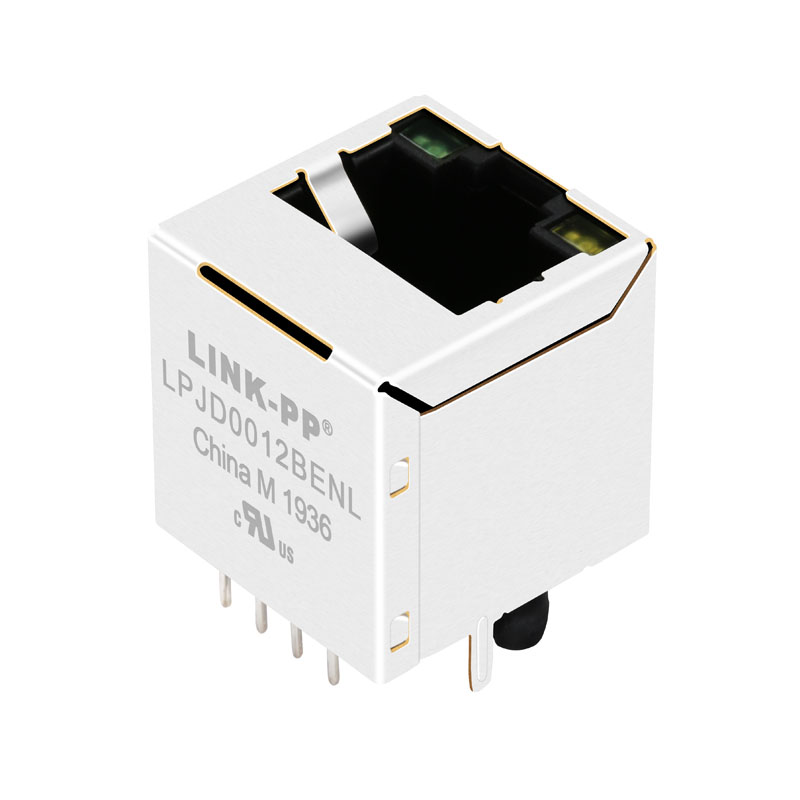

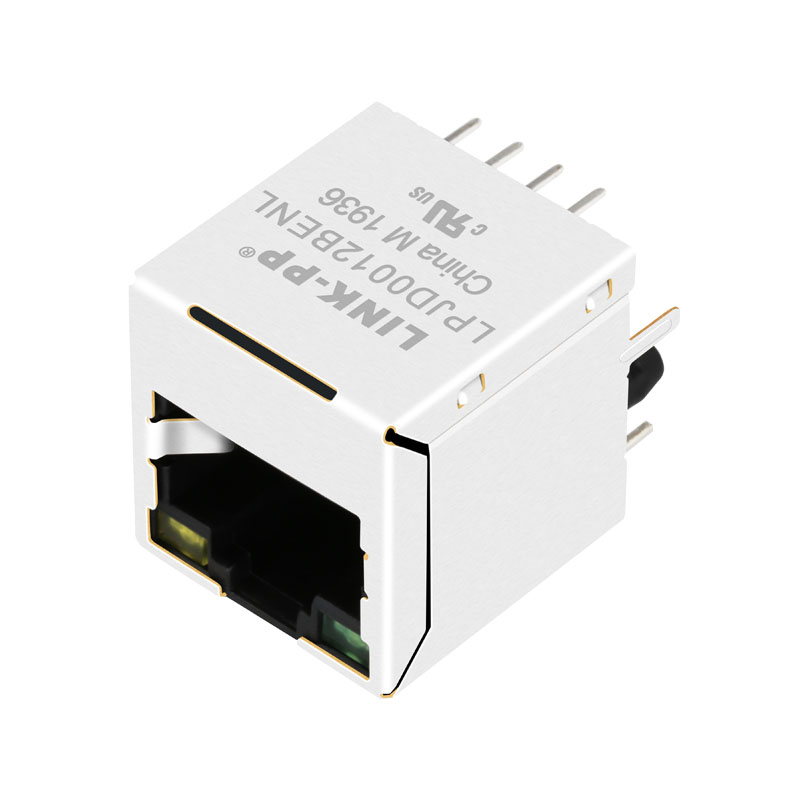

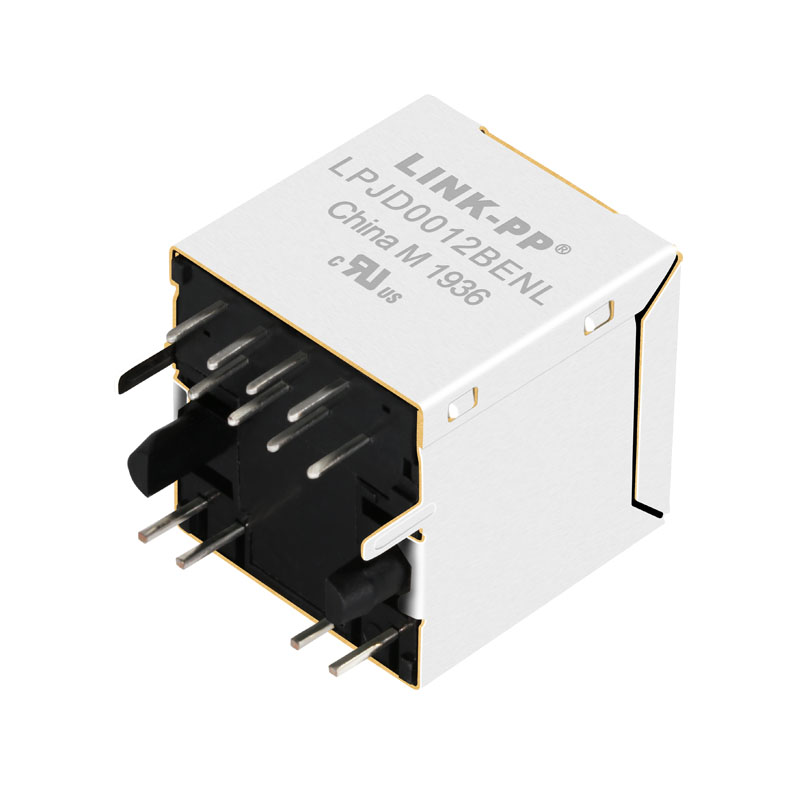

JD2-0001NL JD2-0010NL 10/100 Base-t Vertical Top Entry Straight Magnetic Ethernet RJ45 Connector With Leds
| Item |
RJ45 Female Connector |
| Part Status |
Active |
| Part Number |
LPJD0012BENL |
| Number of Positions/Contacts |
8p8c (RJ45, Ethernet) |
| Application-Lan |
Ethernet(NoN PoE) |
| Number of Ports |
1x1 Port |
| Speed |
10/100 Base-T |
| Cores per Port |
4 |
| Orientation |
180° Angle (Right) |
| PCB Mount Angle |
Top Entry |
| Shield EMI Tabs |
Without |
| LED Option |
With |
| PCB |
FR4 |
| PCB Retaining Post |
T POST |
| Temperature |
0°C TO 70°C |
| Bst Circuit |
Yes |
| AutomDX |
Yes |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX |
1CT:1CT |
| Configuration RX/TX |
T,C |
