| Part Number | 0855135109 |
| Application-LAN | ETHERNET(NON POE) |
| AutomDX | YES |
| Bst Circuit | YES |
| Configuration RX | T,C |
| Configuration TX | T,C |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Cores Per Port | 4 |
| Diodes | NO DIODES |
| LED Option | WITH LEDS/WITHOUT LEDS |
| Latch | UP/DOWN |
| Number of Ports | 1X1 |
| PCB | FR4 |
| PCB Mount Angle | SIDE ENTRY |
| PCB Retaining Post | T POST |
| Pin Type | THT SOLDER |
| RoHS Compliant | YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Search | YES |
| Shield EMI Tabs | WITH OR WITHOUT |
| Speed | 10/100/1000 BASE-T |
| Temperature | 0 TO 70°C/-40 TO 85°C |
| Turns Ratio RX | 1CT:1 |
| Turns Ratio TX | 1CT:1 |

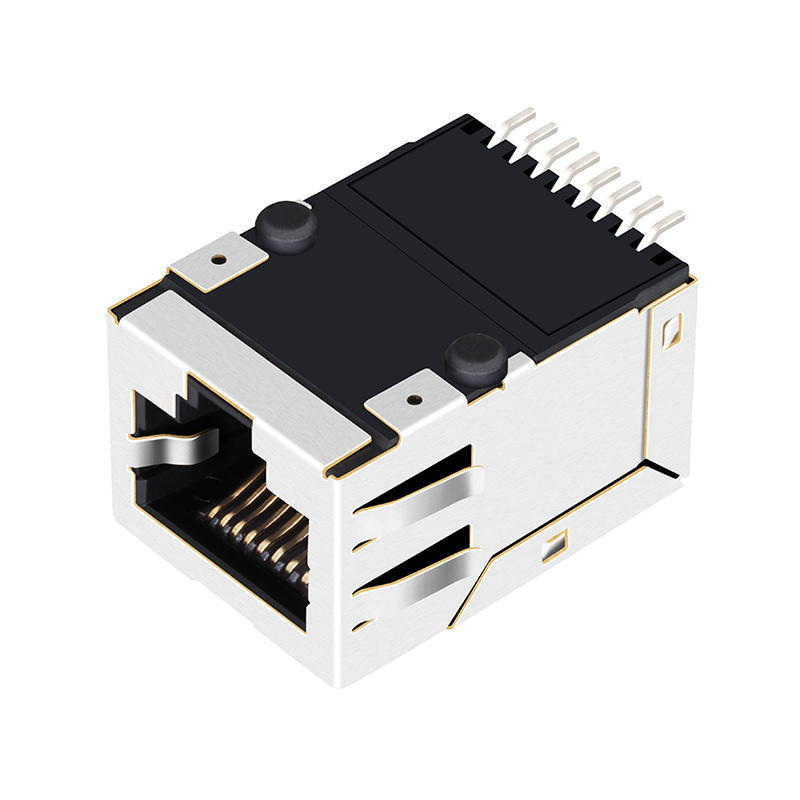

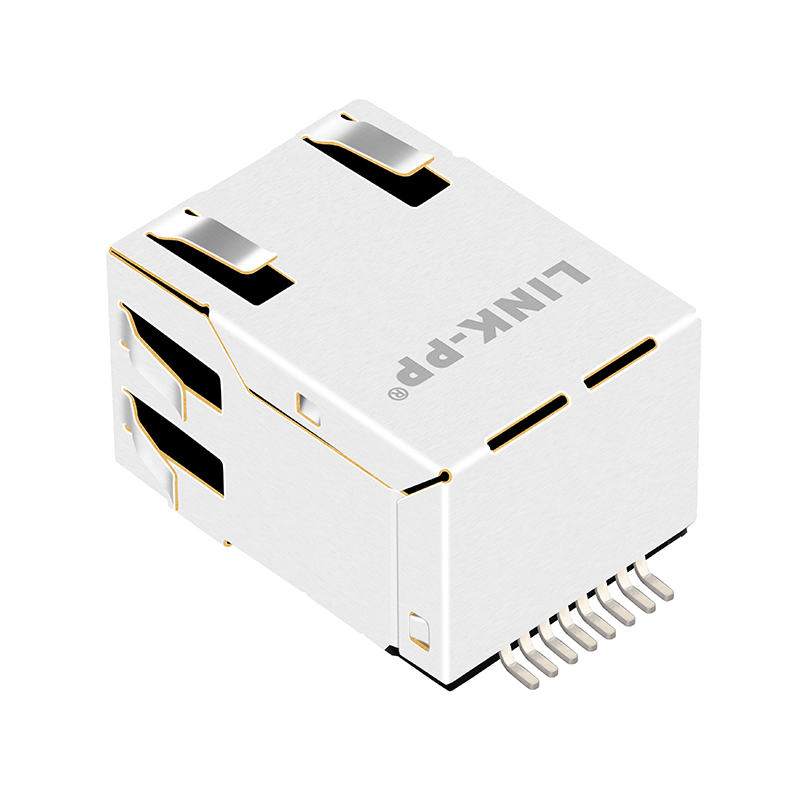

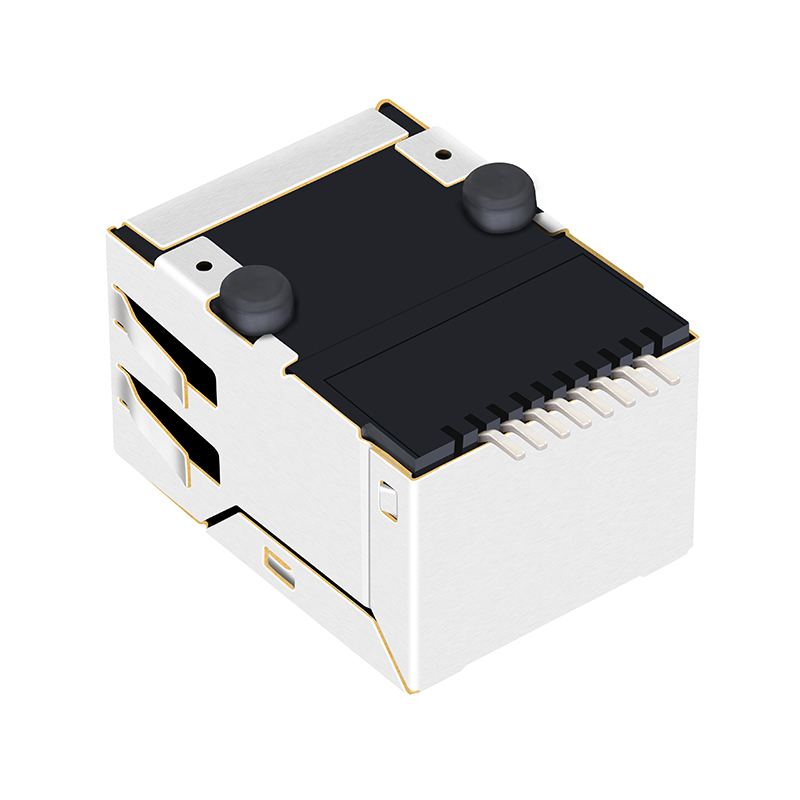

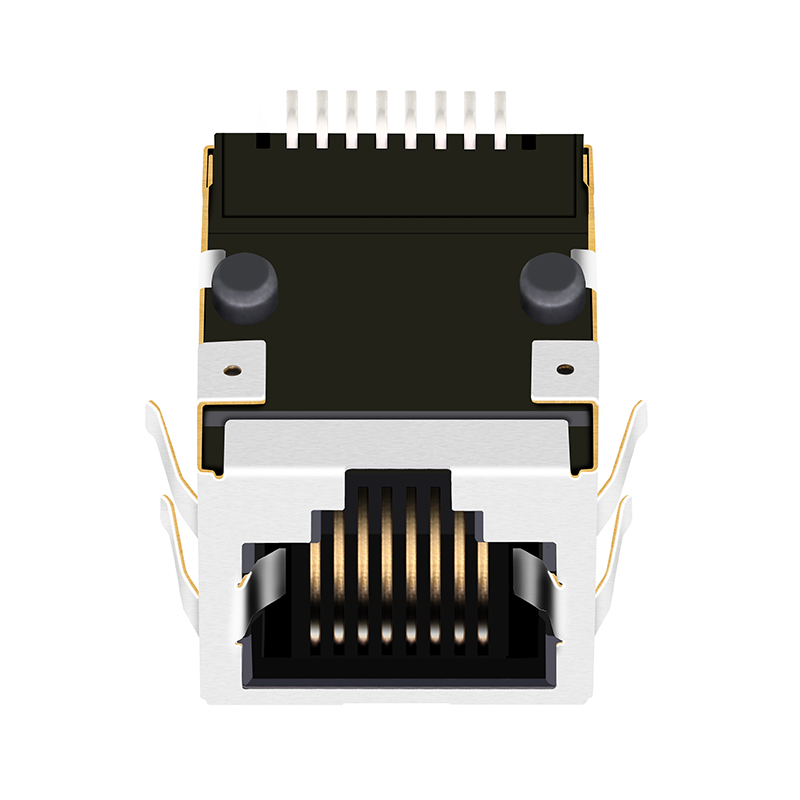

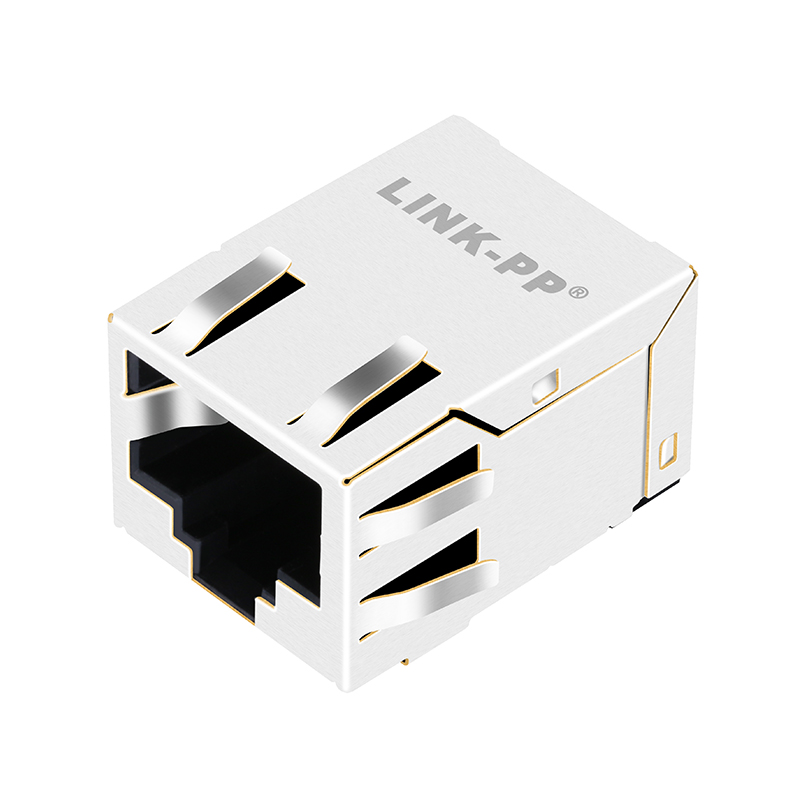

The 0855135109 is a low-profile 8P8C SMT (Surface Mount Technology) modular jack designed for top entry. It supports 10/100/1000 Base-T Ethernet transmission speeds, features 4 cores per port, and has a 1X1 port configuration.
Yes, this RJ45 connector is RoHS-5 compliant with a lead-in-solder exemption, ensuring it meets key environmental and safety compliance regulations.
It features THT solder pin types and side entry PCB mounting with T-post retaining mechanisms. The contact mating area is plated with high-quality gold, available in 6u", 15u", or 30u" specifications to suit different durability requirements.
Yes, this connector operates in standard temperatures of 0°C to 70°C and also supports industrial-grade operating ranges from -40°C to 85°C, making it suitable for varying environmental conditions.
This model offers flexible configuration options. It is available either with or without LED indicators, and also comes with or without EMI shielding tabs depending on your specific hardware requirements.
