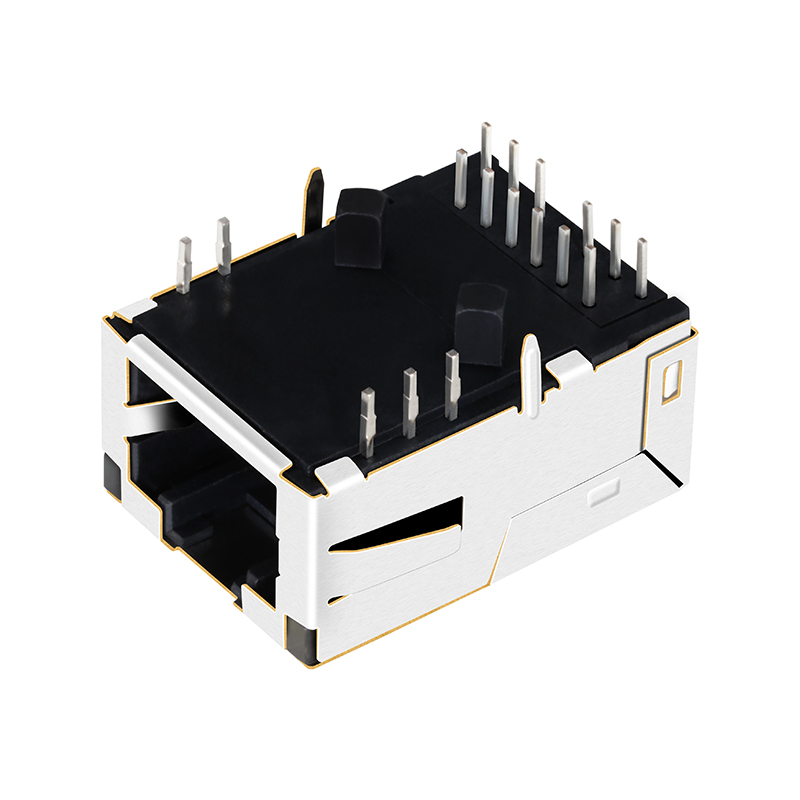

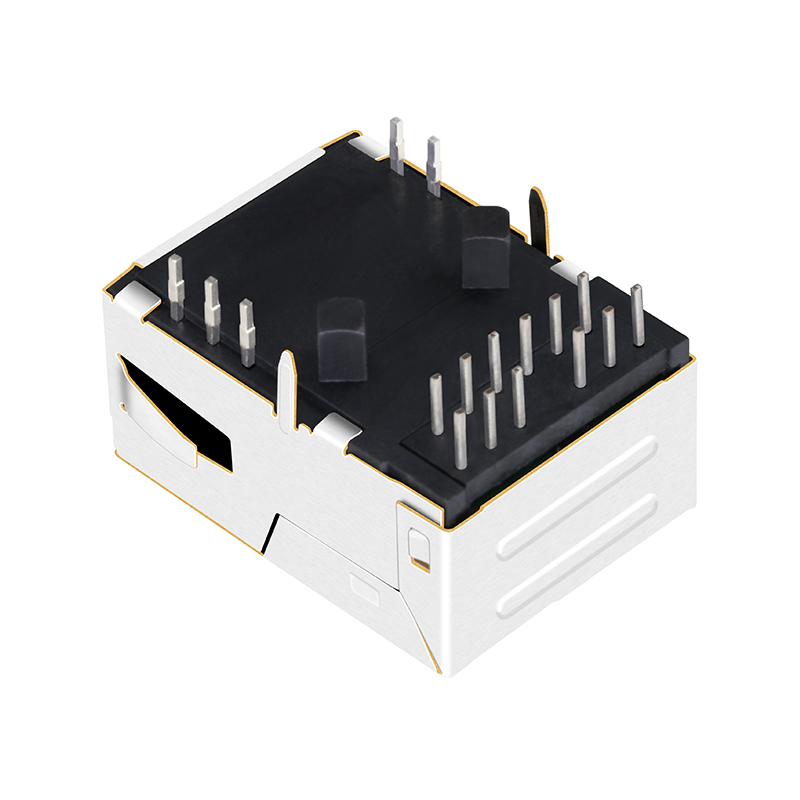

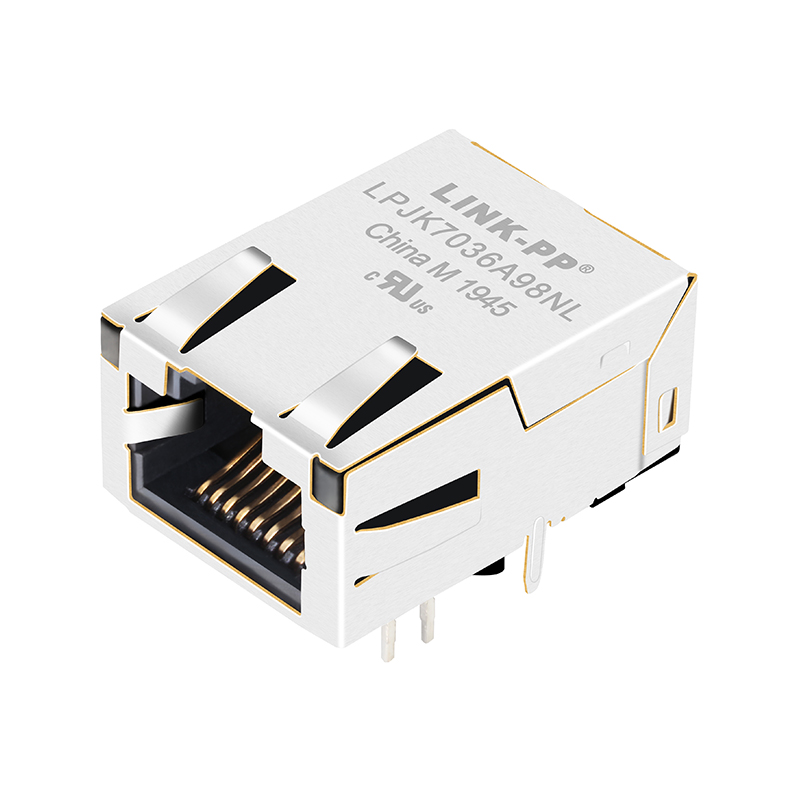

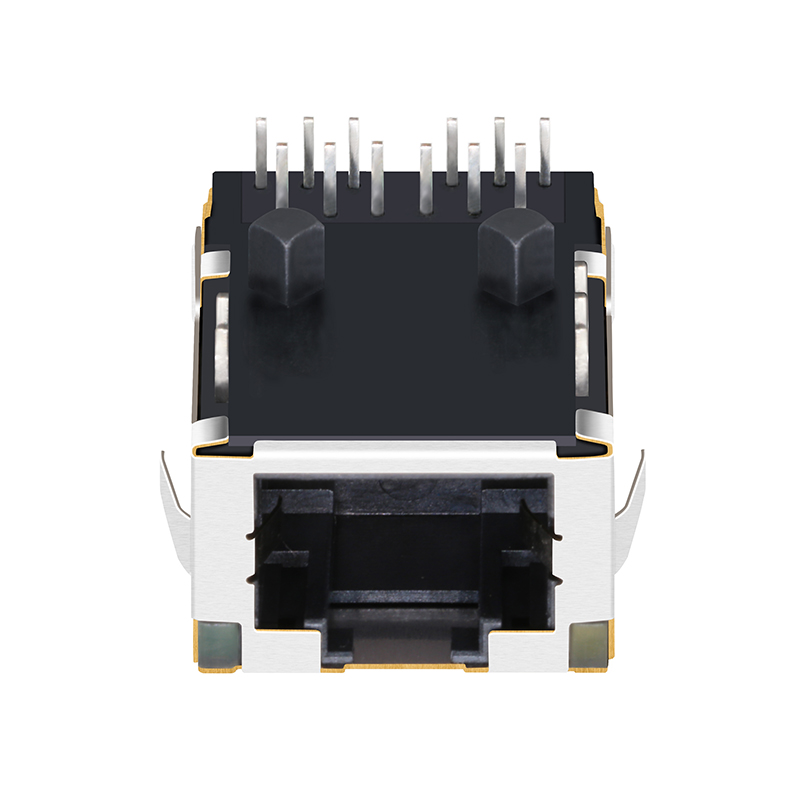

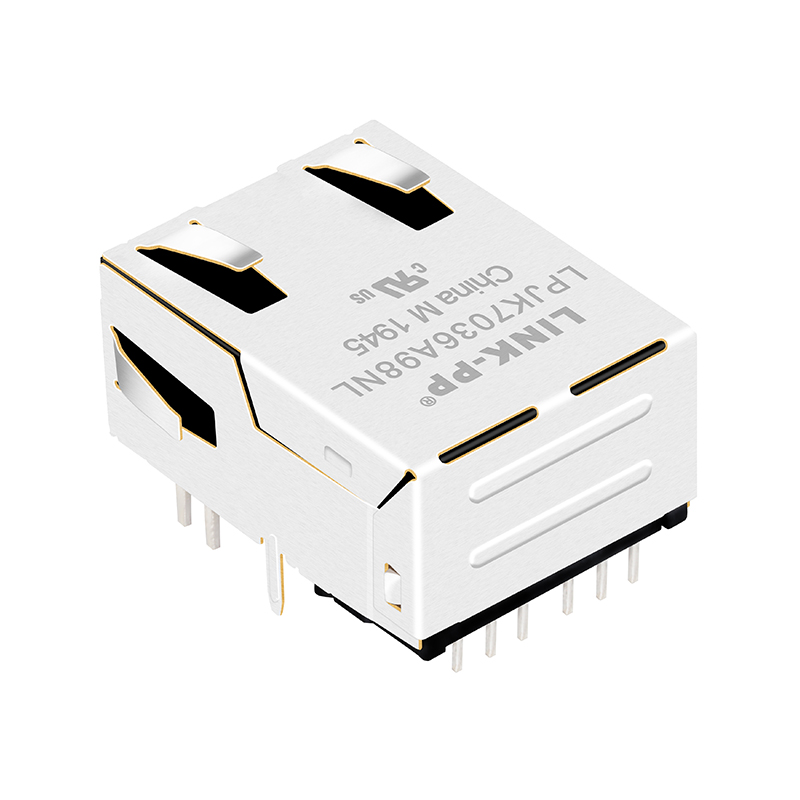

L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
1 / 5
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors
L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors

L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ 45 Connectors

Send Inquiry

Product Description

L829-1J1T-43 L829-1J1T-43-F J0G-0009NL 1000 Base-T Low Profile 8P8C RJ45 Connectors
RJ45 Female Connector Specifications
📋 Products Description
Item RJ45 Female Connector
Link-PP Part Number LPJK7036A98NL
Compatible With L829-1J1T-43 L829-1J1T-43-F J0G-0009NL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 1000 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
RJ45 Dimensions Image
RJ45 Type Selection Guide
Connector Drawing
🔧 Technical Schematics
Schematic Analysis 1
Schematic Analysis 2
Schematic Analysis 3
Schematic Analysis 4
Schematic Analysis 5
