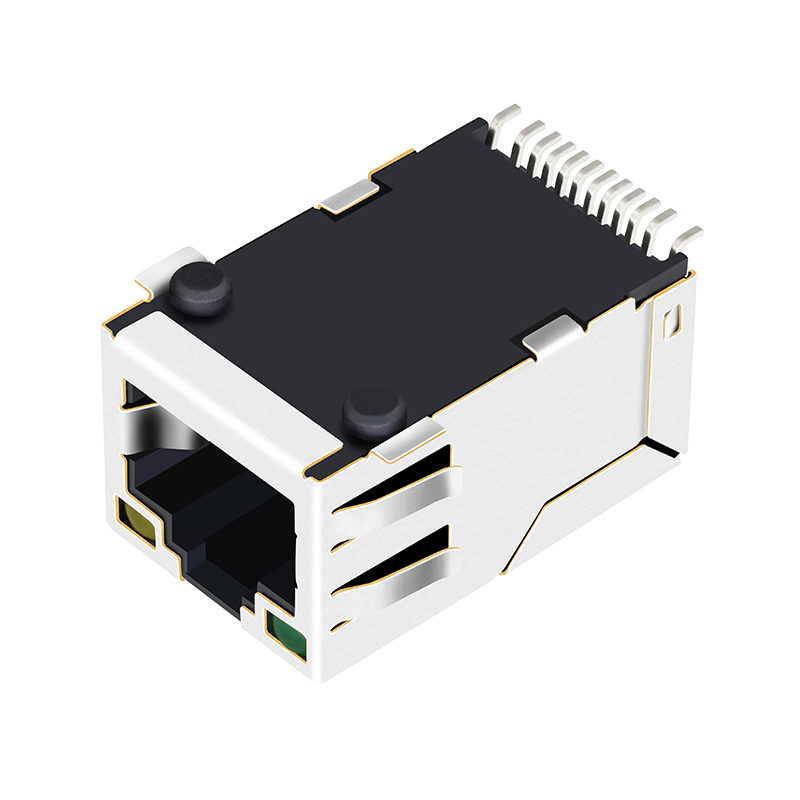

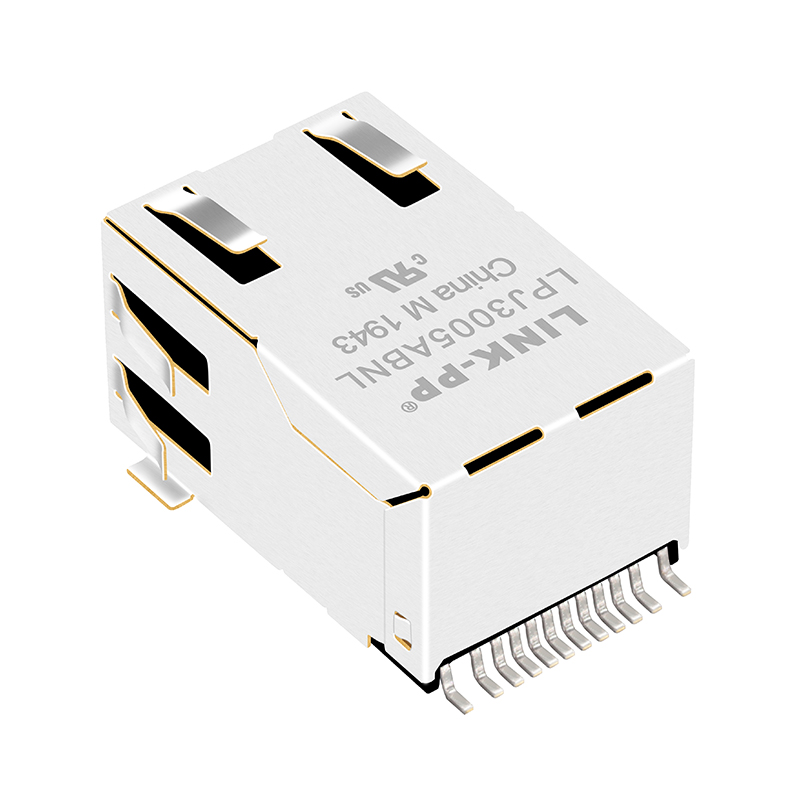

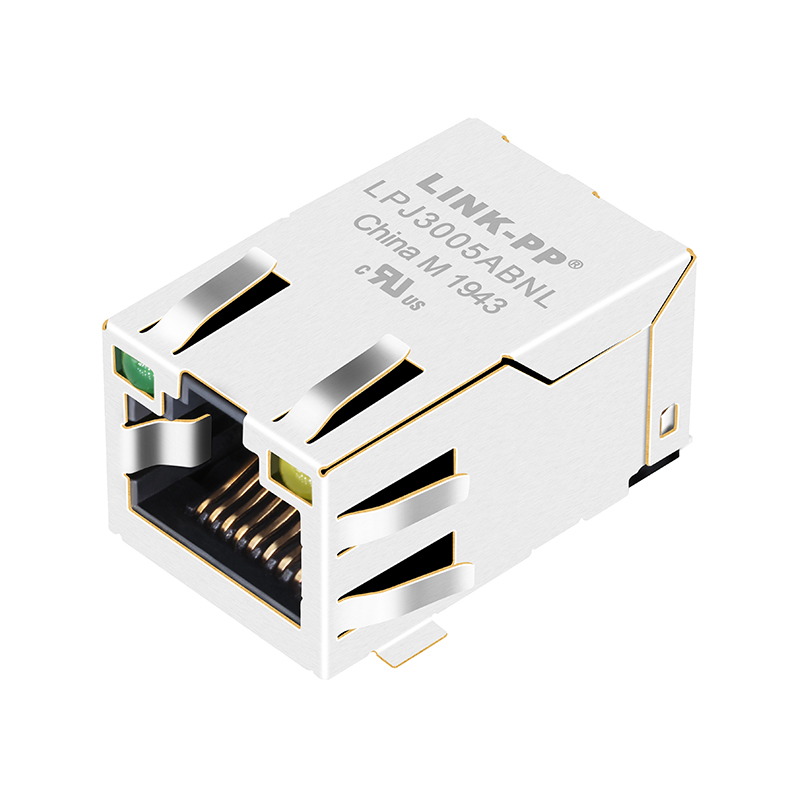

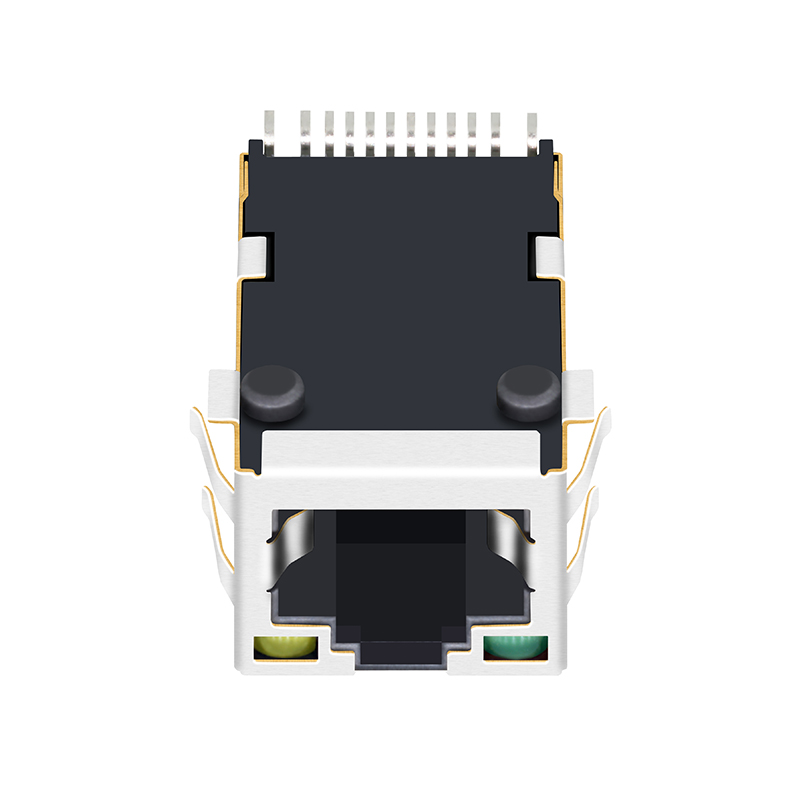

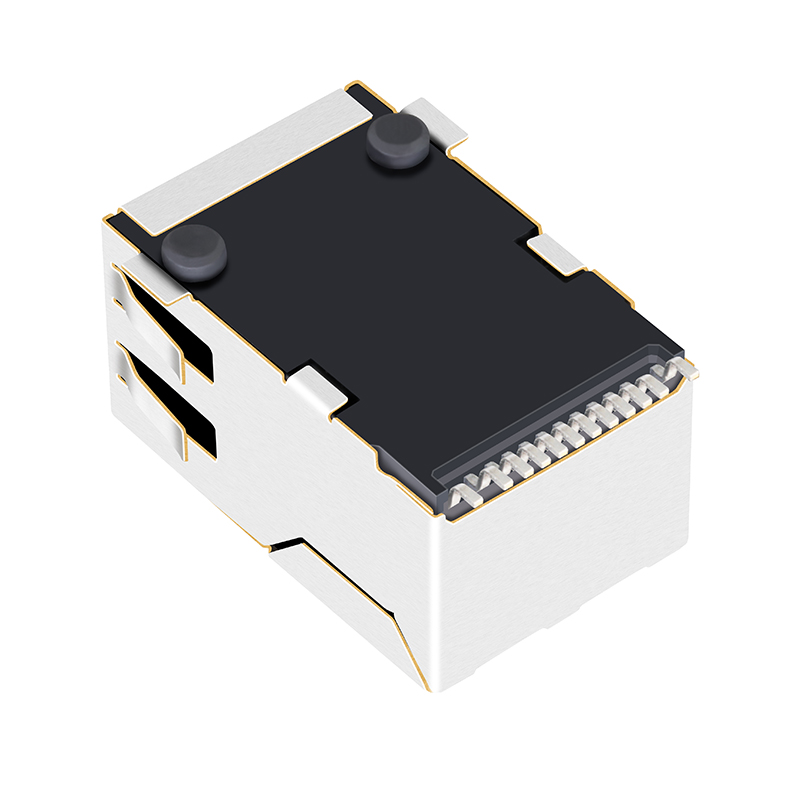

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

1 / 5

JX30-0005NL 74980111211 J3011G21DNL Surface Mount 8p8c RJ45 Female Connector

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	LPJ3005ABNL
Cross Reference Part Number	JX30-0005NL 74980111211 J3011G21DNL
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	-40°C TO 85°C
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Company Profile

Established in 1997, we are a professional designer and manufacturer of magnetic telecom and networking components, with an extensive line of state-of-the-art catalog products as well as custom capabilities. As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we serve more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.

FAQ

Q1: Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Q2: Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but shipping fees apply.

Q3: What is your delivery time?

Ready to ship for stock items, and 15-30 days for mass production.

Q4: What after-service can you offer?

We offer a one-year guarantee period and online technical support 24 hours a day.

Q5: Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion.

Q6: What is your advantage?

19 years of production experience and long-term partnership with leading global technology companies.
