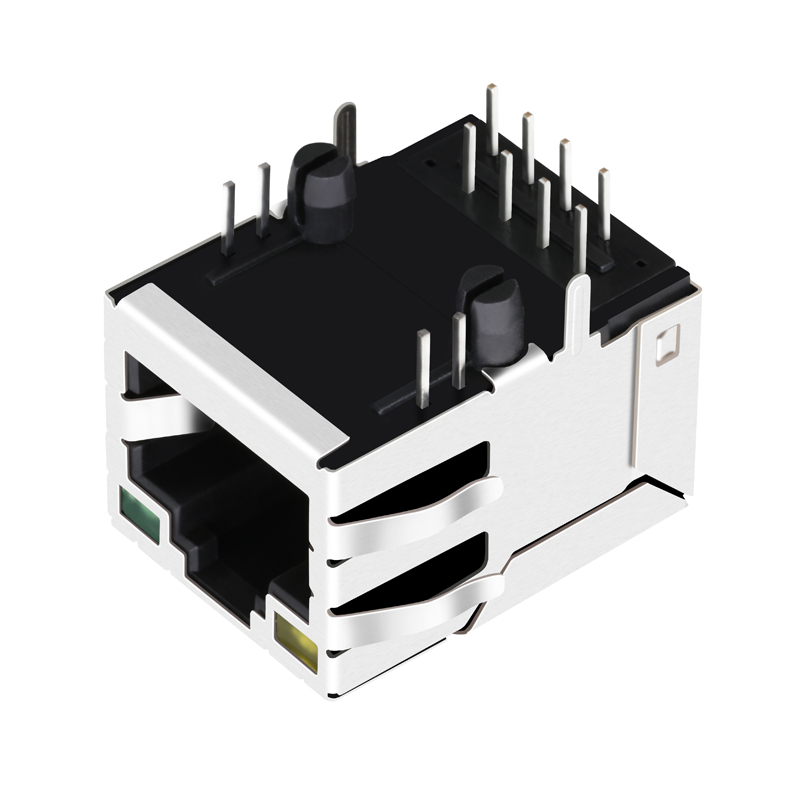

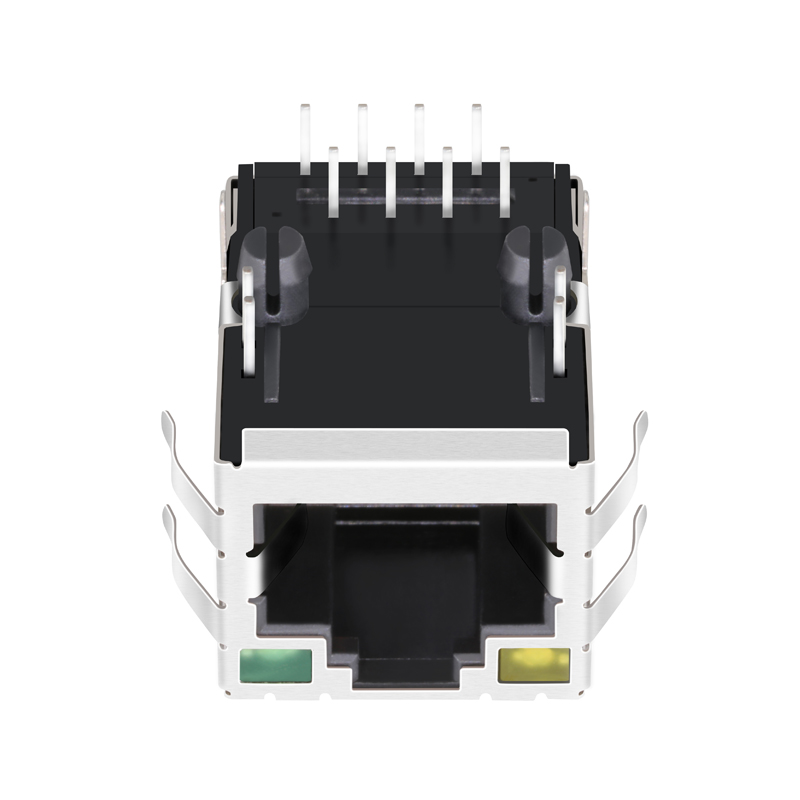

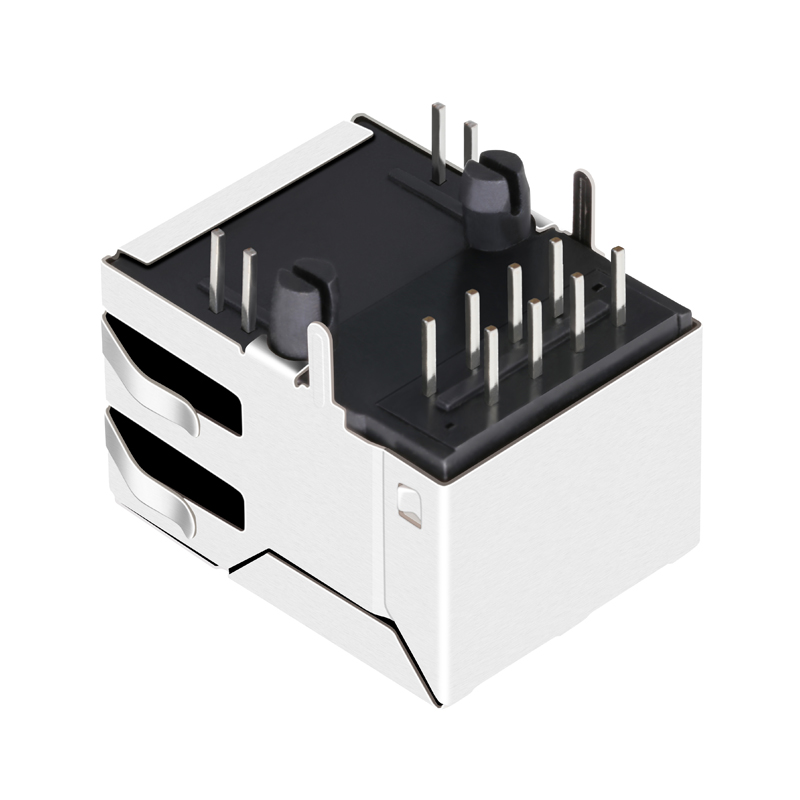

HR851110C RJ45 Connector Modular Jack With Magnetics

Product Description

RJ45 Connector Options
HR851110C RJ45 Connector Modular Jack With Magnetics
Products Description
Item RJ45 Female Connector
Bothhand Part Number HR851110C
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

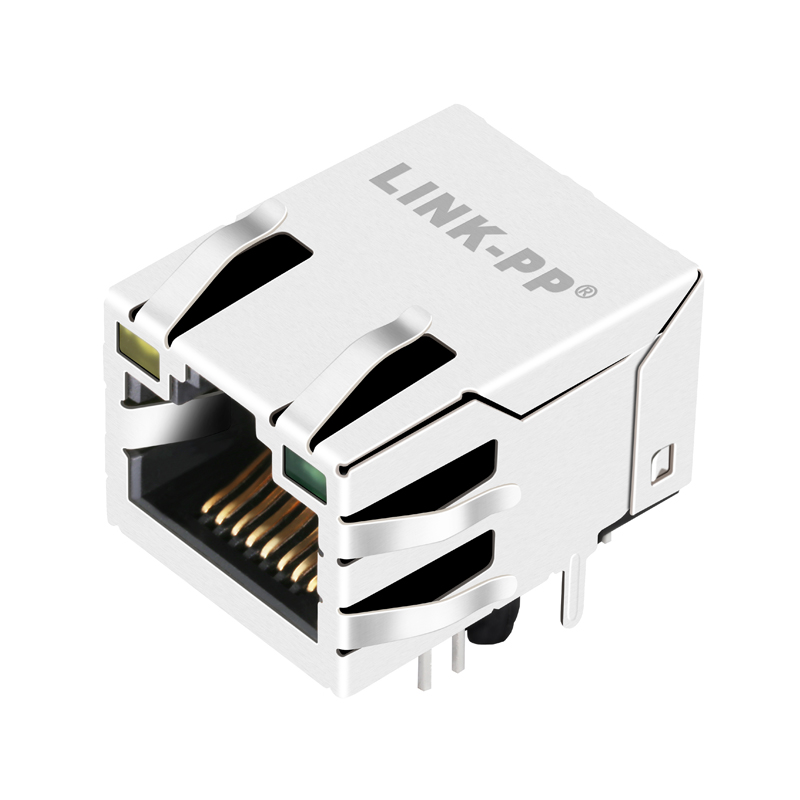

Product Display Front View

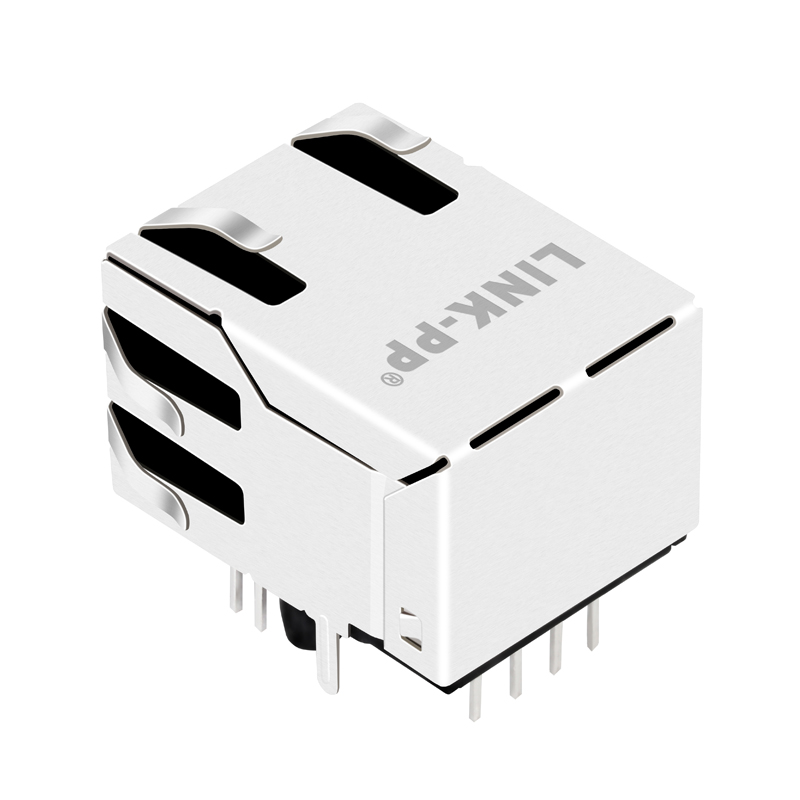

Product Display Side View
Detailed Dimension Diagram 1
Detailed Dimension Diagram 2
Detailed Dimension Diagram 3
Detailed Dimension Diagram 4
Product Range Specifications
Product Performance Detail 1
Product Performance Detail 2
Product Performance Detail 3
Product Performance Detail 4
Product Performance Detail 5
Product Performance Detail 6
