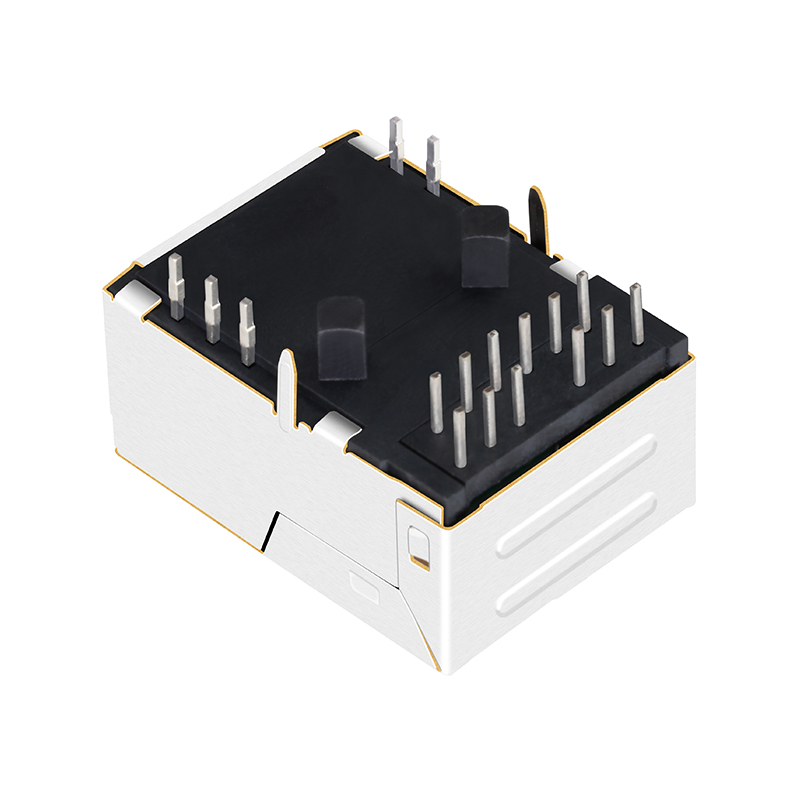

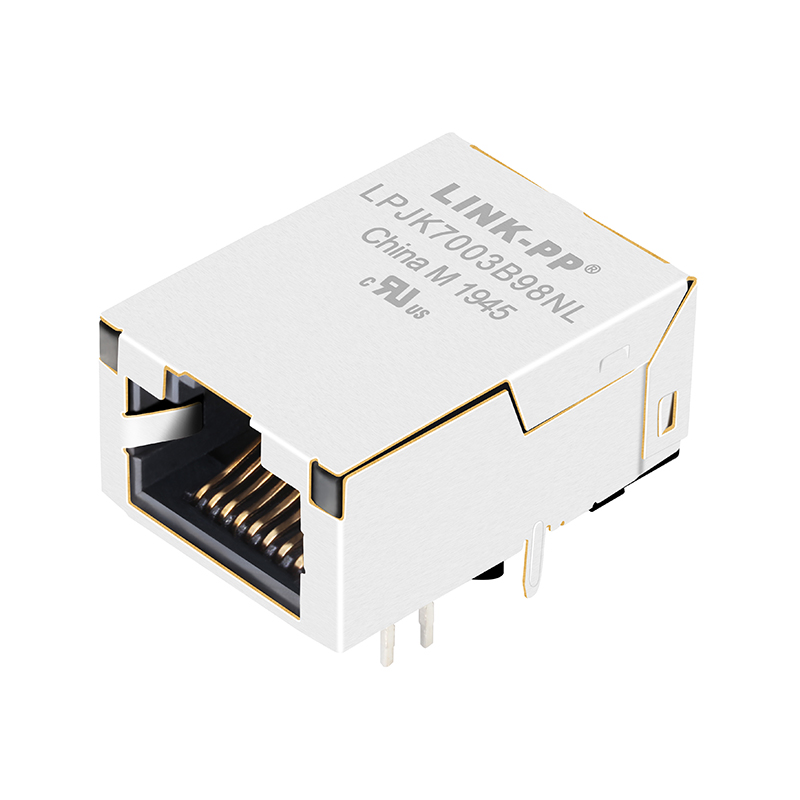

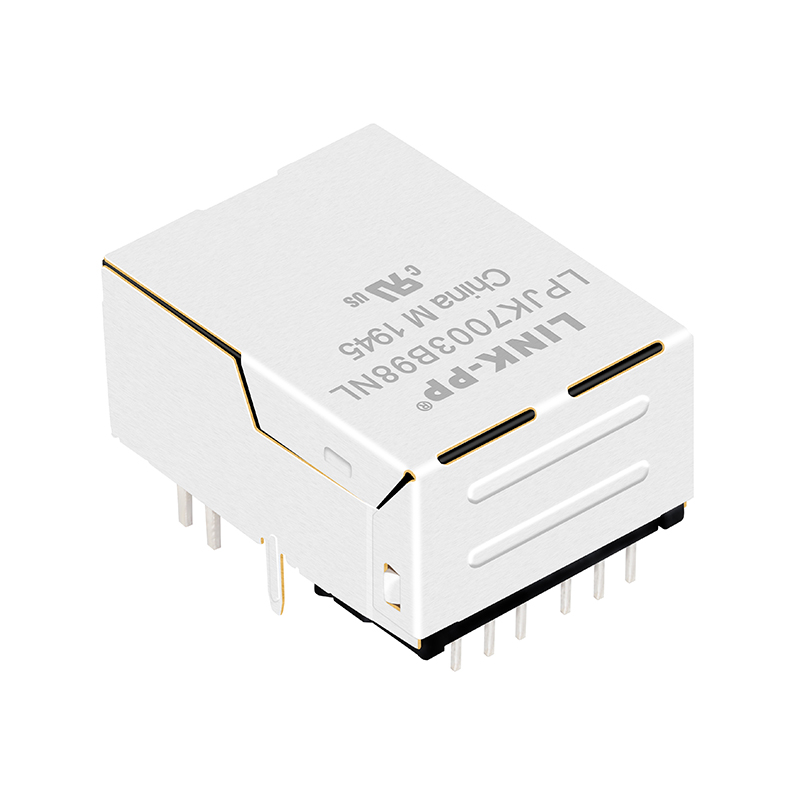

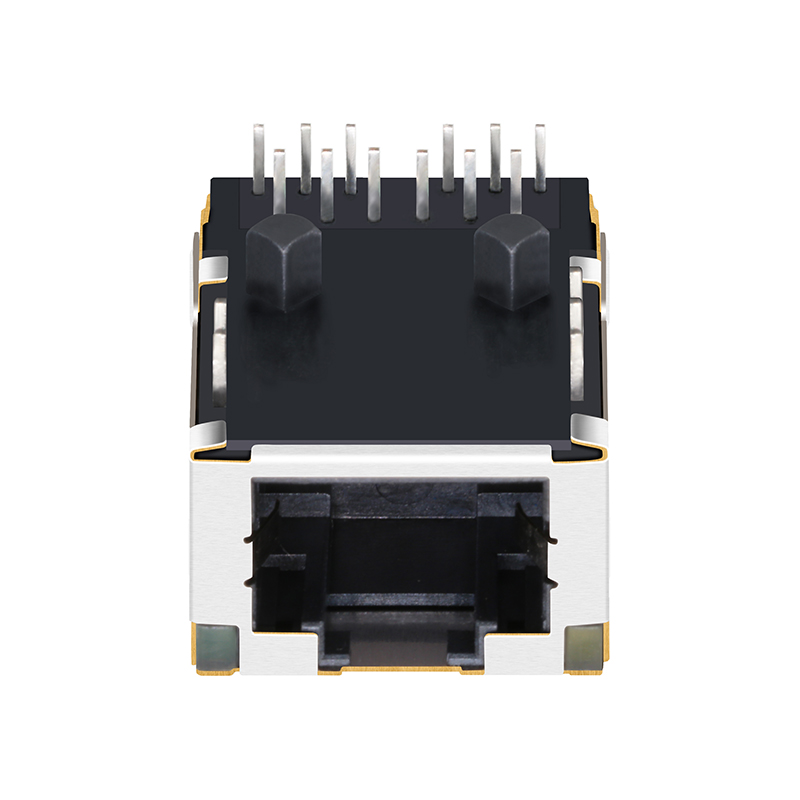

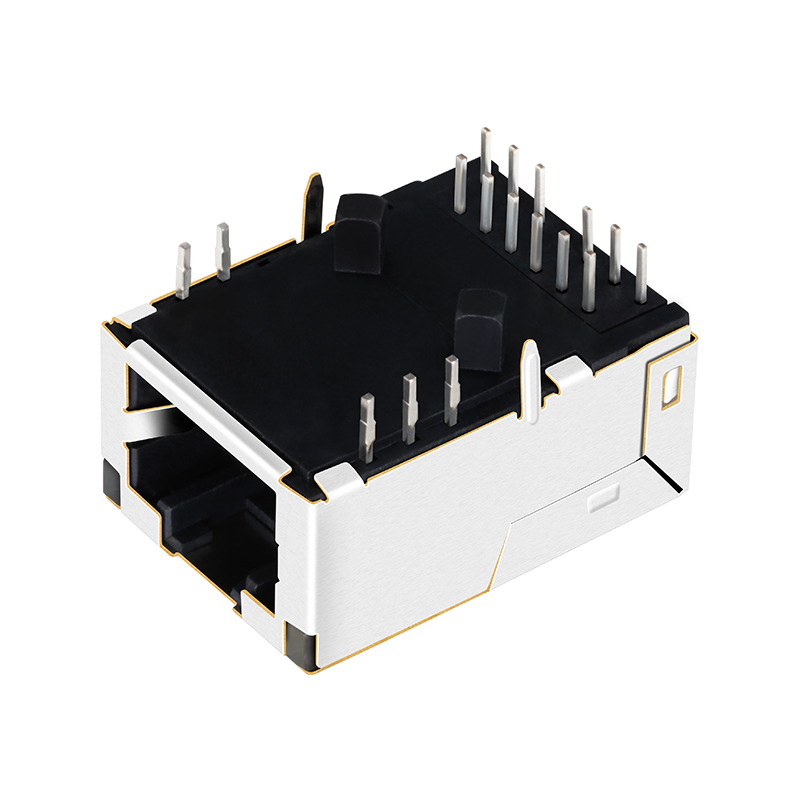

1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1 / 5
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED

1840718-6 for Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED

Send Inquiry

Product Description

RJ45 Female Connector Category
1840718-6 For Embedded Board Gigabit Low-Profile RJ45 Female Connector With LED
Products Description
Item RJ45 Female Connector
Part Number LPJK7003B98NL
Compatible With 1840718-6
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non-PoE)
Number of Ports 1x1 Port
Speed 10/100/1000 Base-T
Latch Down/Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without/With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C / -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T, C
Product Specification Drawing
Explore More Products
Product Range Overview
Production & Testing Showcases
Dimensional Drawing
Production Process
Quality Inspection
Testing Laboratory
Advanced Equipment
Certifications
Packaging & Storage
Company Profile
Established in 1997, our company is a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Manufacturing Workshop
Automated Production Line
Corporate Exhibition
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you should pay the shipping fee.
What is your delivery time?
We are ready to ship immediately for stock items, and 15-30 days for mass production orders.
What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your specific requirements.
What is your advantage?
We have over 19 years of production experience and have been a trusted partner for major global industry leaders for many years.
