Female RJ45 for Internet Modular Plug TIC-L003-11

Send Inquiry

Product Description

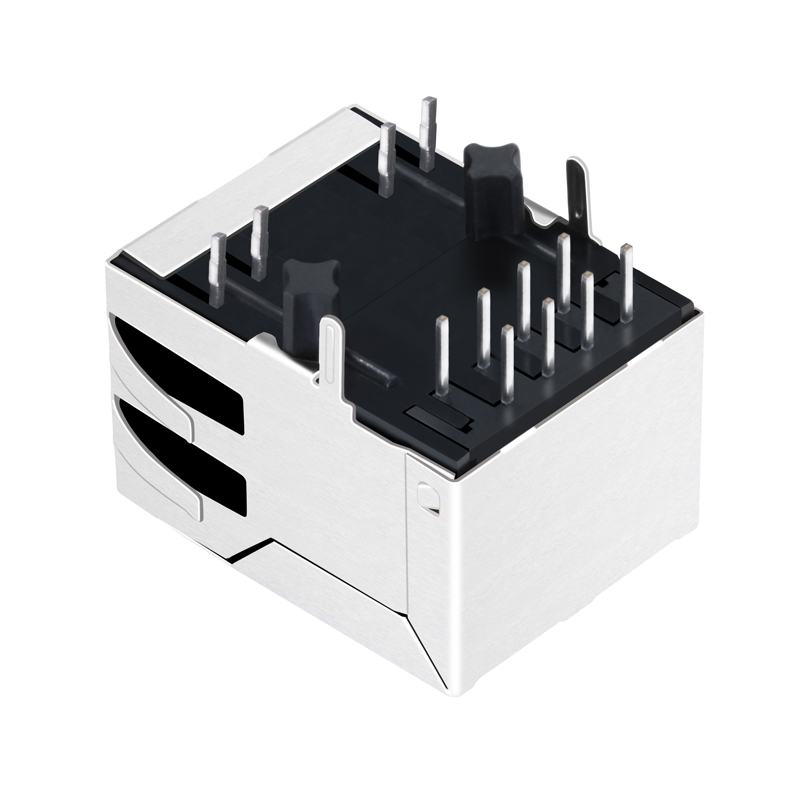

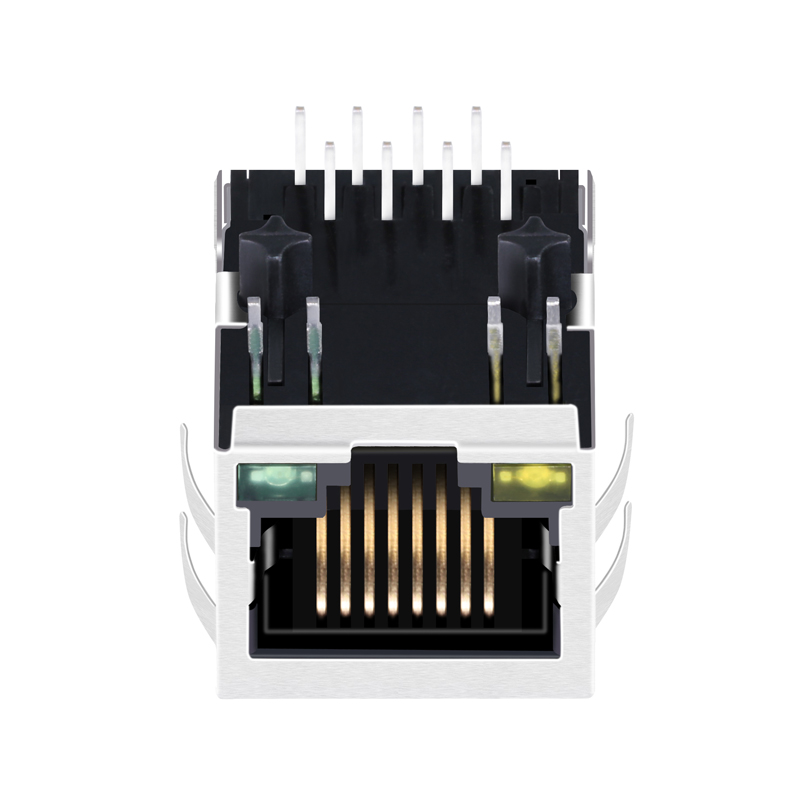

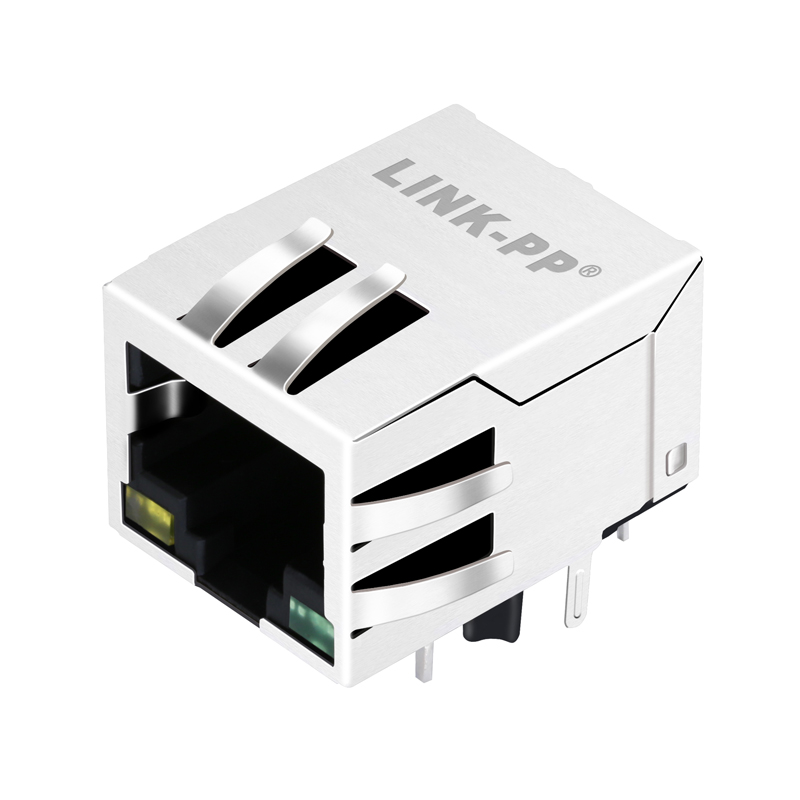

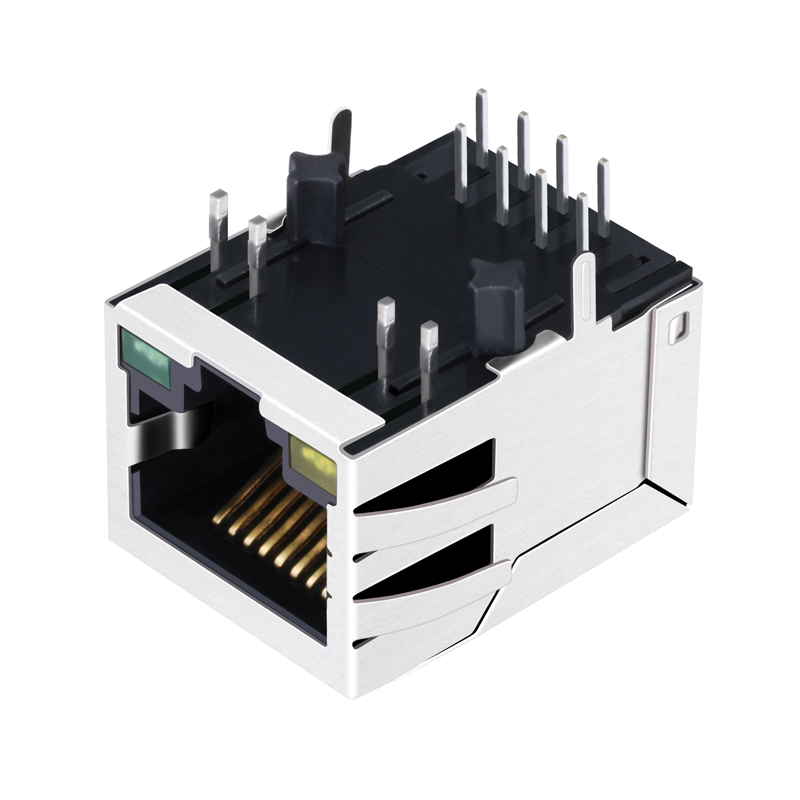

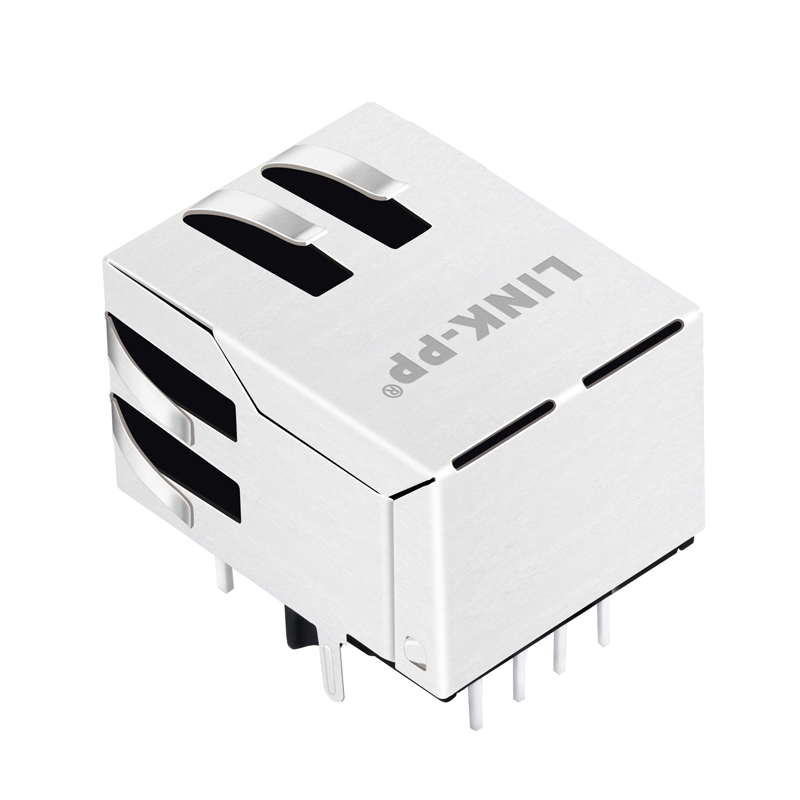

Female RJ45 for Internet Modular Plug TIC-L003-11

Part Number	TIC-L003-11
AutomDX	YES
Bst Circuit	YES
Configuration RX	T,C
Configuration TX	T,C
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores Per Port	4
Diodes	NO DIODES
LED Option	WithOUT LEDS
Latch	DOWN
Number of Ports	1X1
PCB	FR4
PCB Mount Angle	SIDE ENTRY
PCB Retaining Post	T POST
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 With LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	With OR WithOUT
Speed	10/100 BASE-T
Temperature	0 TO 70°C/-40 TO 85°C
Turns Ratio RX	1CT:1
Turns Ratio TX	1CT:1

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

ISO 9001:2008
UL Certification
Reach Certification
RoHS Compliance
Active Environmental Policy

100% Guarantee Quality

Manufactured Under Strict Controls.
100% Tested (Not Just Batch Tested)
OEM Of TE (Tyco) For 9 Years
Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…
Preferred Supplier Of TI (Texas Instruments)
Quality Guarantee: 6 Years

Competitive Price And Service

More Competitive Price Than Pulse Tyco Halo Wurth And Amphenol
Delivery Time: 2-3 Weeks After Orders
Free Samples Are Available
Provide New Design For Customer Requirements
90% Off Shipping Cost By DHL UPS DEDEX Or TNT

Corporate Policy

The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction Through Continuous Improvements In Quality, Delivery And Service
Committed To And Expects Quality Performance From Every Employee
The Company Standard Is Defect-Free Products And Services

Female RJ45 for Internet Modular Plug TIC-L003-11 Dimensions

Female RJ45 for Internet Modular Plug TIC-L003-11 Layout

Female RJ45 for Internet Modular Plug TIC-L003-11 Schematic

Female RJ45 for Internet Modular Plug TIC-L003-11 Board view

• Preferred Supplier Of TI Samsung Cisco Siemens …

Welcome To Visit The TI Website

You Will Look At The Logo On BeagleBone Board

Female RJ45 for Internet Modular Plug TIC-L003-11 Divider

Female RJ45 for Internet Modular Plug TIC-L003-11

Frequently Asked Questions (FAQ)

What is the speed rating of the TIC-L003-11 RJ45 modular plug?

The TIC-L003-11 supports 10/100 BASE-T transmission speeds, making it ideal for standard Fast Ethernet networking applications.

What is the operating temperature range for this RJ45 connector?

The product is designed to function stably in temperatures ranging from 0 to 70°C, and can withstand environmental conditions between -40 to 85°C.

Does the TIC-L003-11 feature integrated LEDs?

No, the TIC-L003-11 is configured without LEDs, and it does not contain integrated diodes.

What mounting and solder specifications apply to this plug?

This female RJ45 connector features a side-entry PCB mount angle, T-post PCB retaining system, and standard THT (Through-Hole Technology) solder pins.

What certifications do your RJ45 modular plugs meet?

The products are certified under ISO 9001:2008 standards, carry UL and Reach certifications, and conform strictly to RoHS-5 environmental policies (with lead in solder exemption).
