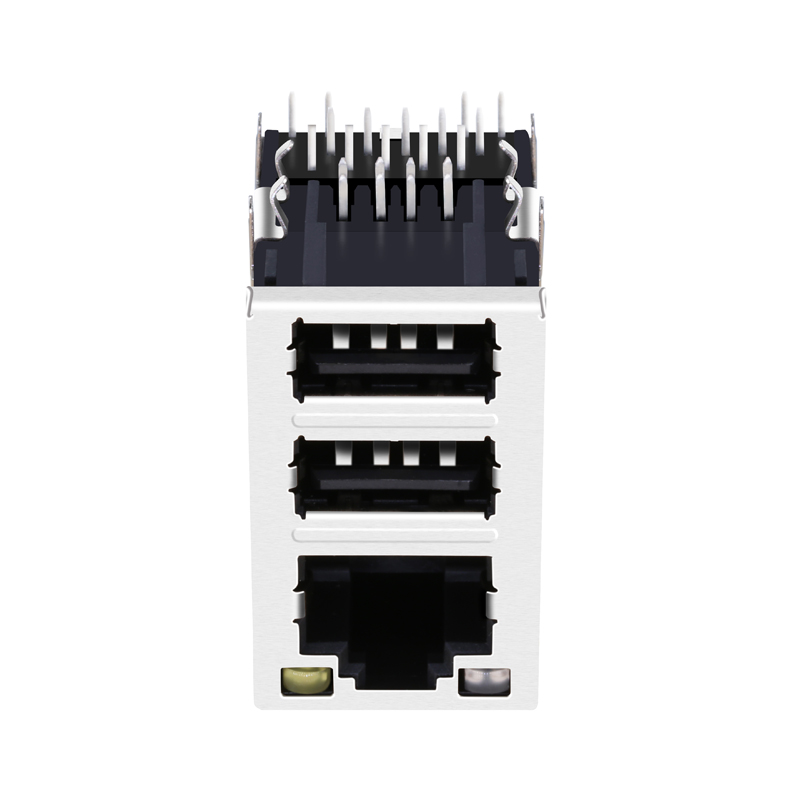

| Item | RJ45 Female Connector |
| Part Number | LPJU5125BONL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port With USB |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0°C TO 70°C / -40°C TO 85°C |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, our company is a professional designer and manufacturer of magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Yes, we can offer you free samples to test quality, but the shipping fee is covered by the customer.
Ready to ship for stock items and 15-30 days for mass production orders.
We provide a one-year guarantee period and offer comprehensive online technical support 24 hours a day.
Yes, please send your requirements to us so we can proceed with a detailed discussion.
We bring over 19 years of dedicated production experience and have partnered with major industry leaders like Intel and Jabil for many years.
