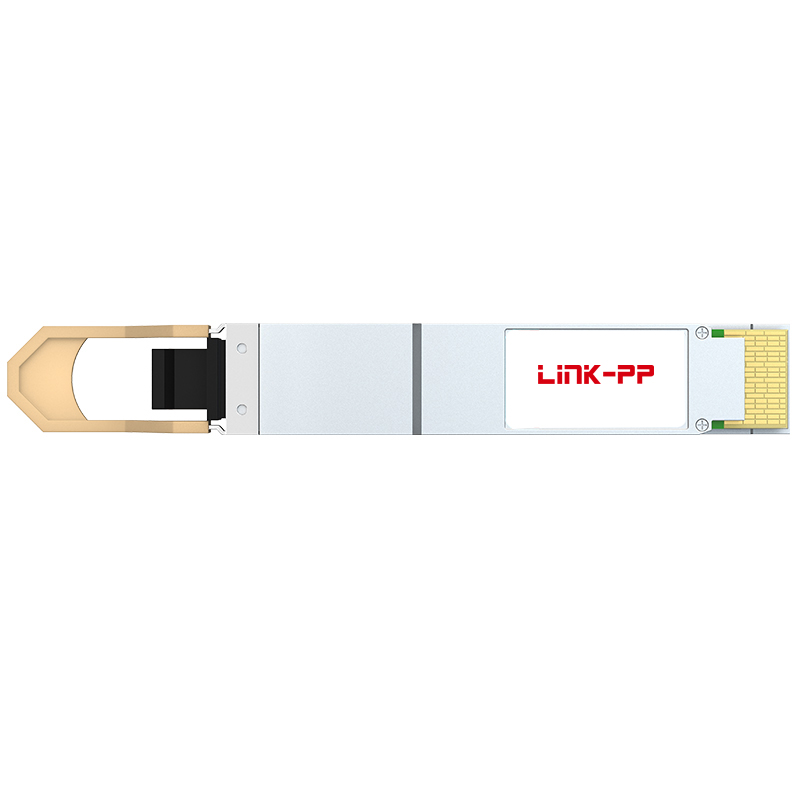

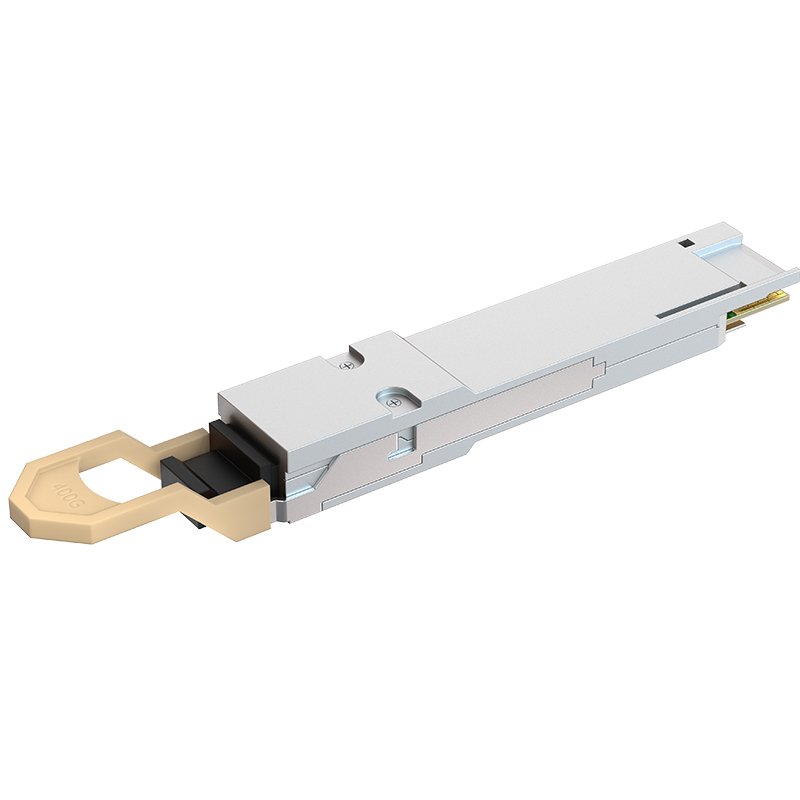

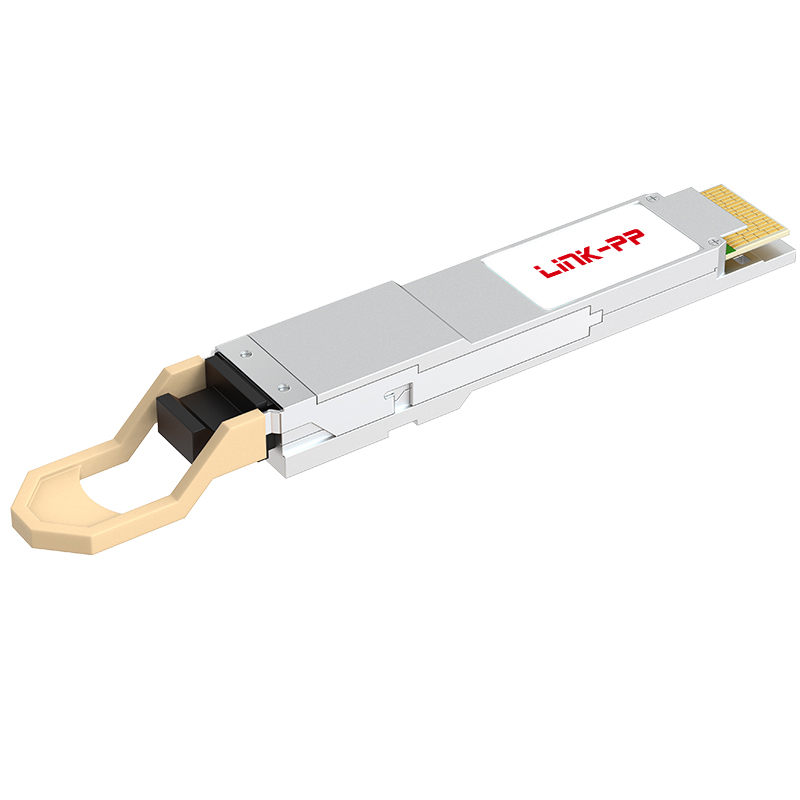

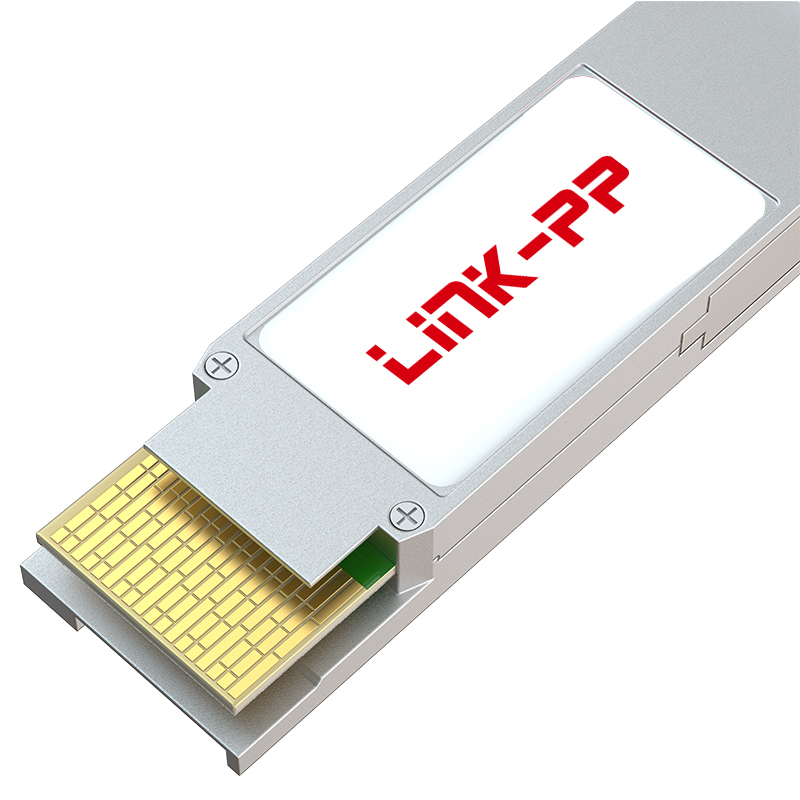

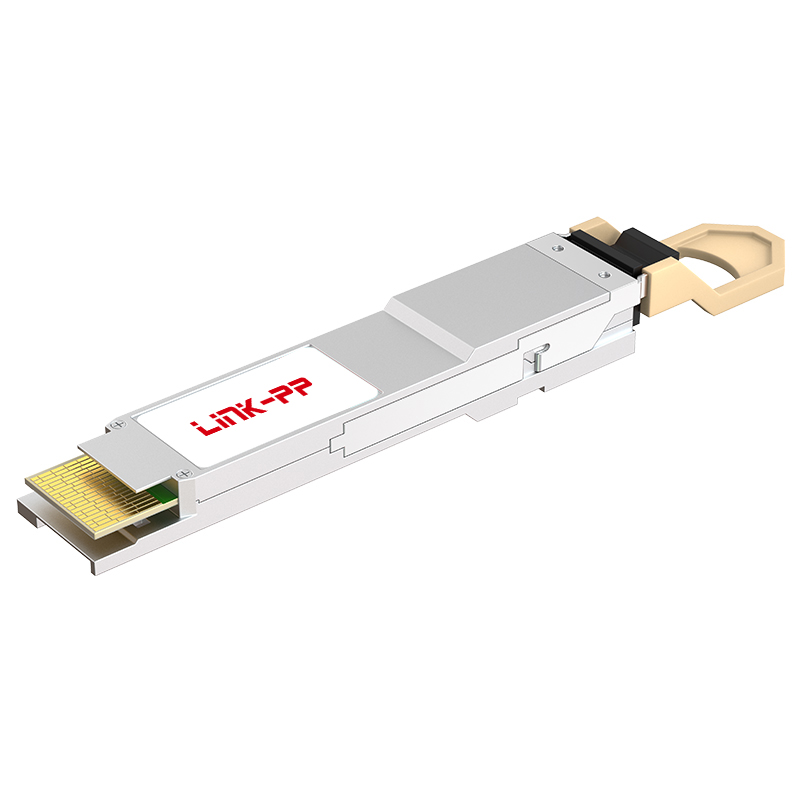

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module

Product Description

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 400Gbps
Max Cable Distance 70m@OM3/100m@OM4
Wavelength 850nm
Connector MTP/MPO-16 (APC)
Media MMF
Optical Component VCSEL/PIN
TX Power -6~4dBm
RX Power -7.9~4dBm
Modulation 8x 50G PAM4
Powerbudget 1.9dB
Power Consumption ≤10W
Extinction Ratio 3dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Module Solution 1
Optical Transceiver Module Solution 2
Optical Transceiver Module Solution 3
Optical Transceiver Module Solution 4
Optical Transceiver Module Map Overview
Optical Transceiver Product Details
Production Process 1
Production Process 2
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Strength Advantage 1
Strength Advantage 2
Strength Advantage 3
Strength Advantage 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE, and UL. We own advanced manufacturing facilities and testing equipment imported from abroad.

Established in 1997, we currently have around 2,000 staff members. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short timeframe.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronics technologies, we develop, manufacture, and sell products worldwide.
Factory Overview 1
Factory Overview 2
FAQ
Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, with the shipping fee covered by the buyer.
What is your delivery time?
We have products ready to ship for stock items, and it takes 15-30 days for mass production.
What after-service support do you offer?
We provide a one-year warranty period and offer online technical support 24 hours a day.
Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can discuss the details of your project.
What is your core advantage?
We bring over 19 years of professional production experience and have partnered with major global enterprises for many years.
