Product Description

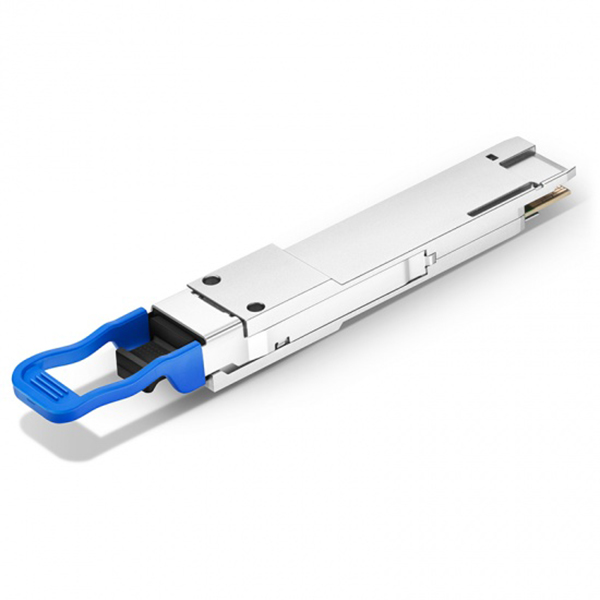

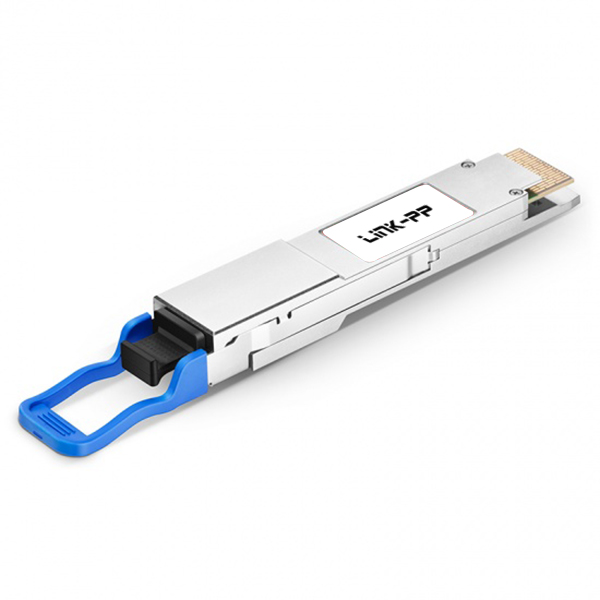

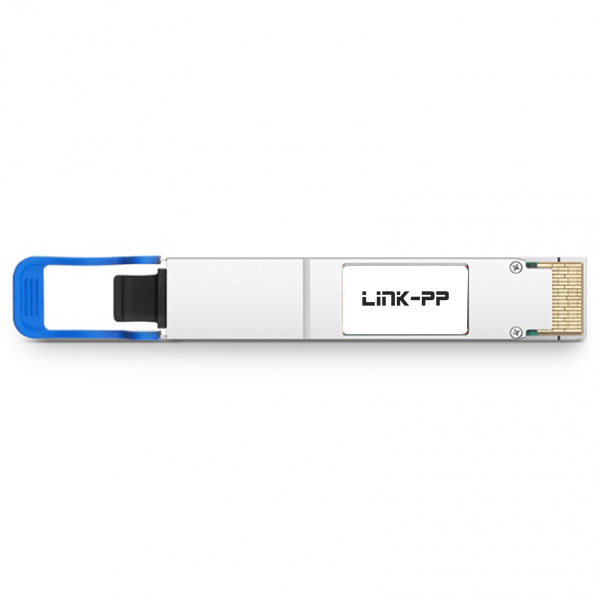

400GBASE-LR8 Duplex LC Optical Transceiver Module SMF 1310nm 400G QSFP-DD 10km
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 425Gbps
Max Cable Distance 10km
Wavelength 1310nm
Connector Duplex LC
Media SMF
Optical Component LWDM EML/PIN
TX Power -2.8~5.3dBm
RX Power -9.1~5.3dBm
Modulation 8x 50G PAM4
Powerbudget 6.3dB
Power Consumption ≤10W
Extinction Ratio 3.5dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1
