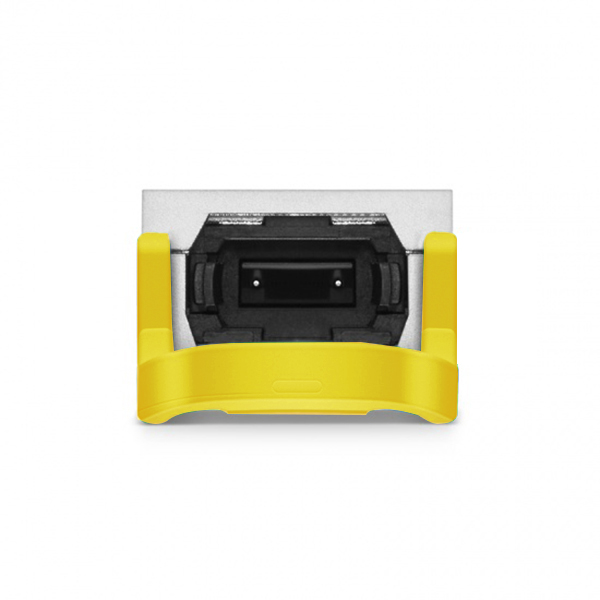

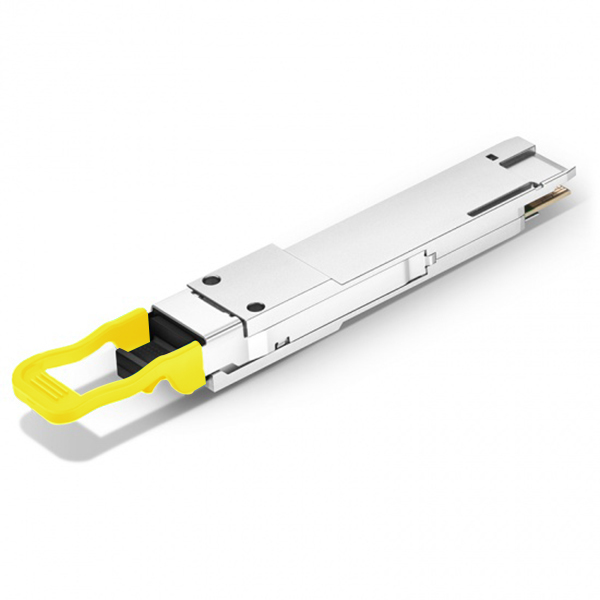

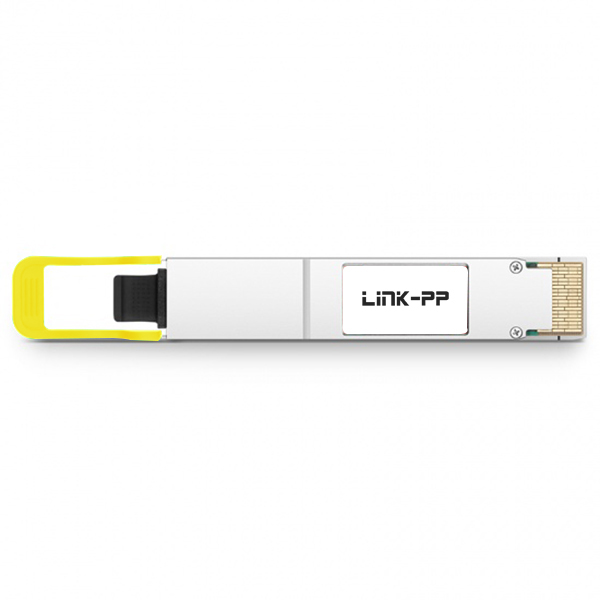

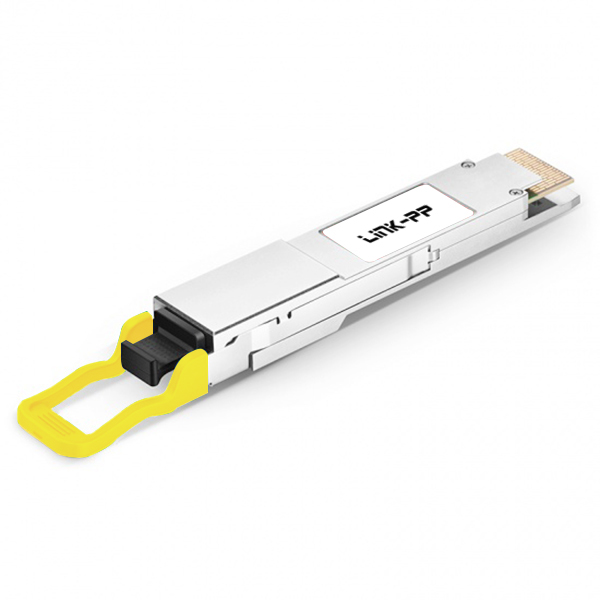

400G DR4 QSFP-DD PAM4 1310nm 500m MTP/MPO-12 APC SMF Optical Transceiver Module
Products Description
| Item |
Fiber Optical Modules |
| Part Status |
Active |
| Form Factor |
QSFP-DD |
| Max Data Rate |
425Gbps (4x106.25Gb/s) |
| Max Cable Distance |
500m |
| Wavelength |
1310nm |
| Connector |
MTP/MPO-12 APC |
| Media |
SMF |
| Optical Component |
DFB/PIN |
| TX Power |
-2.9~4dBm |
| RX Power |
-5.9~4.0dBm |
| Receiver Sensitivity |
-6.5dBm |
| Powerbudget |
3dB |
| Power Consumption |
≤10W |
| Extinction Ratio |
3.5dB |
| DDM/DOM |
DDM Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Warranty |
5 Years |
| Sample |
Available |
| Protocols |
IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
☞
Related Products SFP Cage
☞
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, RoHS, REACH, CE and UL, owning advanced manufacturing facilities and testing equipment imported from abroad.
Our company was established in 1997, and we have around 2,000 staff at present. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
FAQ
Q
1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Q
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but the shipping fee is your responsibility.
Q
3. What is your delivery time?
Items in stock are ready to ship, and mass production orders take about 15-30 days.
Q
4. What after-sales service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
Q
5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion about your requirements.
Q
6. What is your advantage?
We have 19 years of production experience and have partnered with global industry leaders for many years.
