| Item | Value |
|---|---|

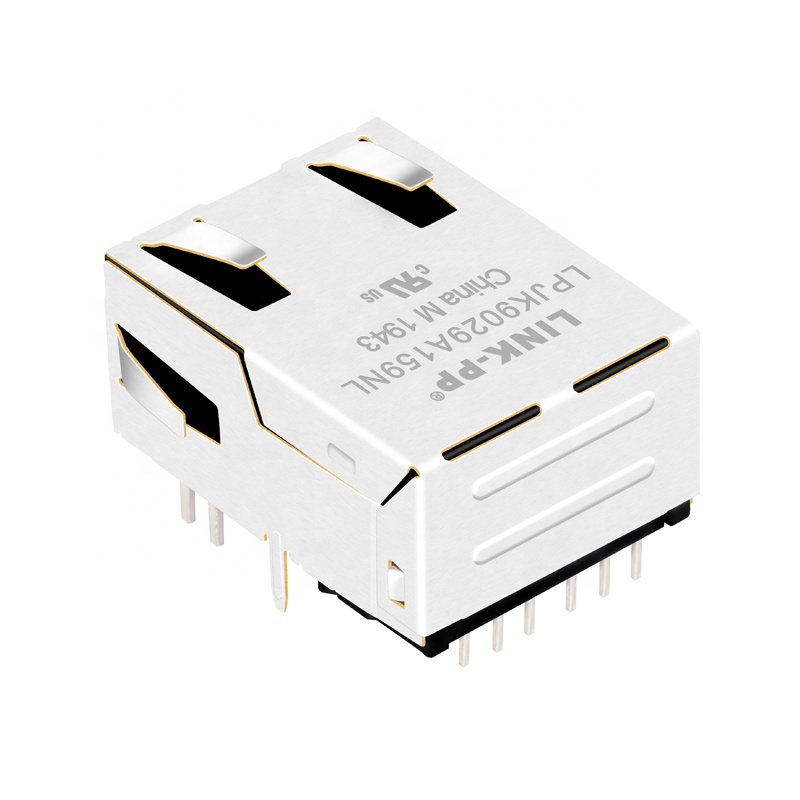

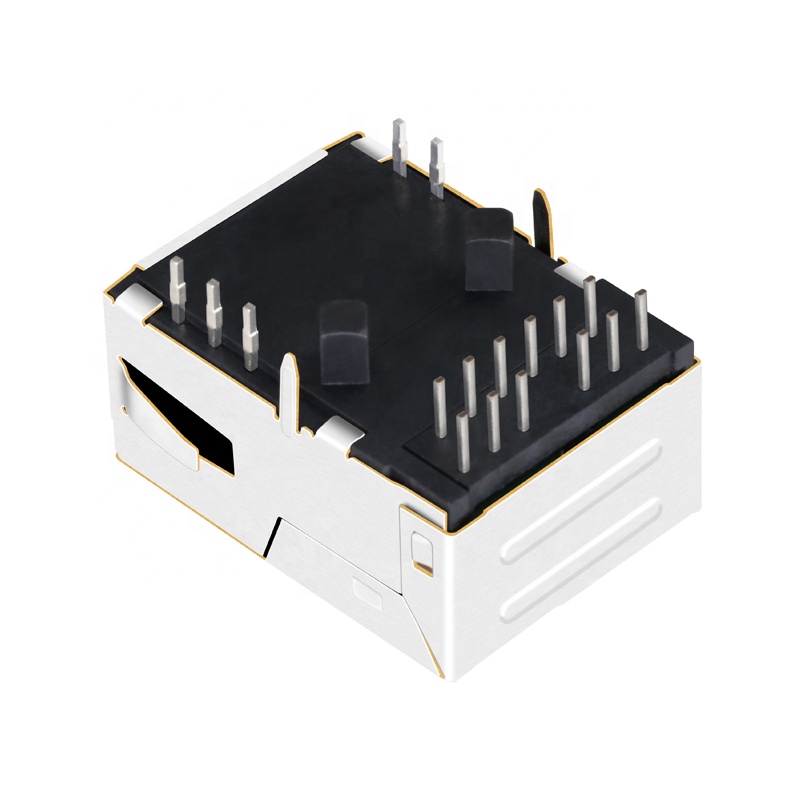

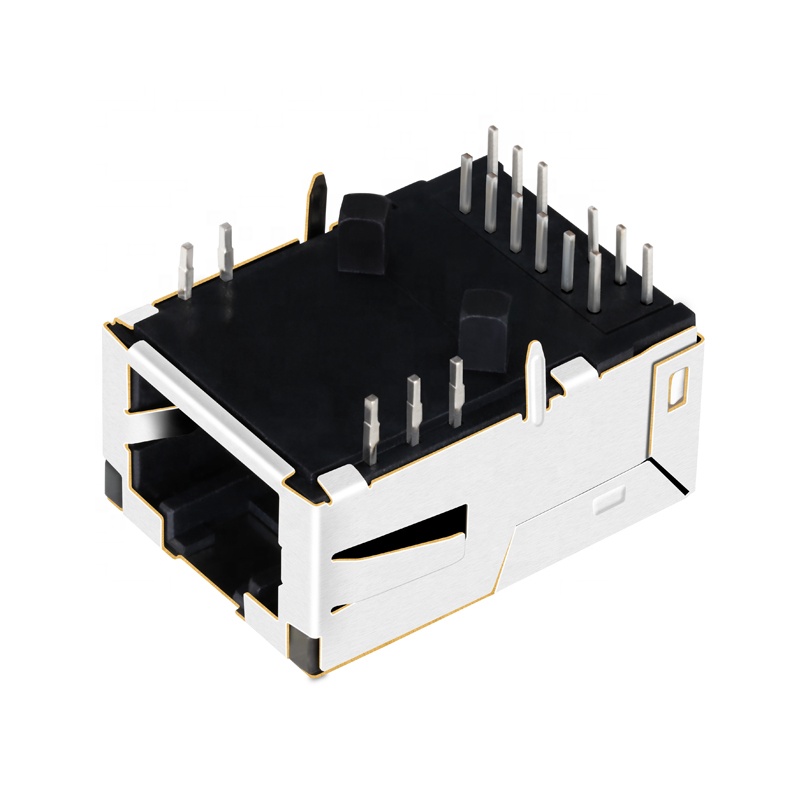

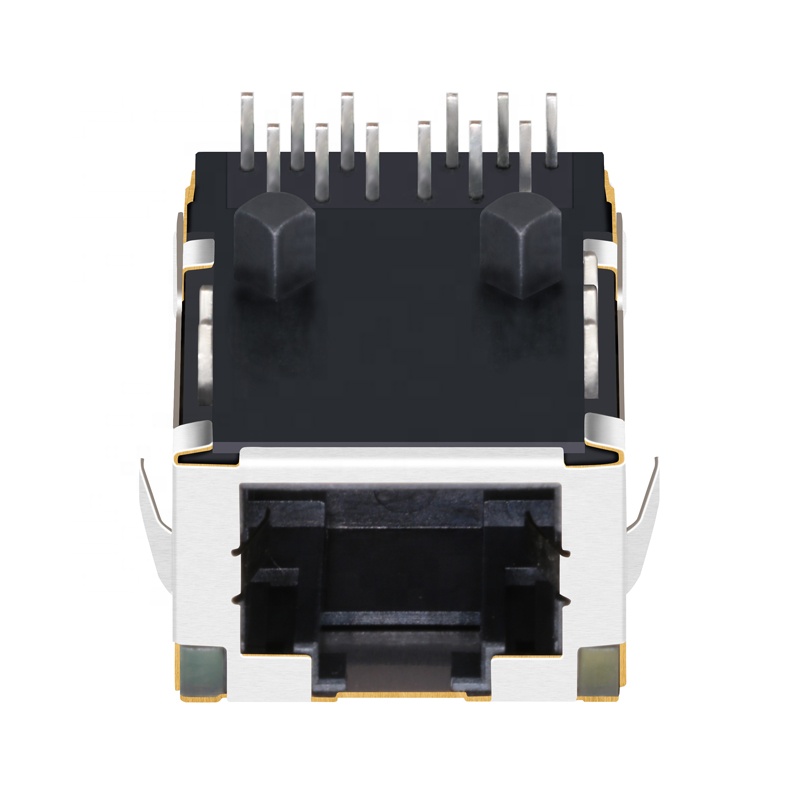

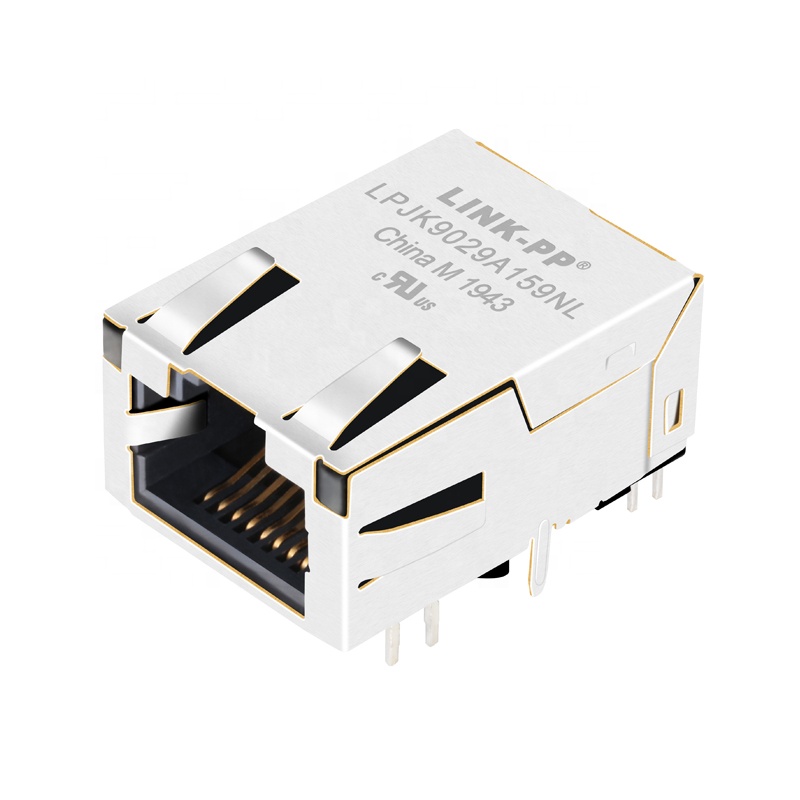

| Model Number | LPJK9029A159NL |
| Part Status | Active |
| Connector Type | RJ45 |
| Applications-Lan | 5G Base-T, AutoMDIX |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| Contact Finish Thickness | 6.00µin (0.152µm) |
| LED Color | Yellow&Green - Yellow |
| Number of Cores per Jack | 8 |
| Shielding | Shielded |
| Number of Ports | Single Port |
| Features | Board Guide |
| Tab Direction | Down |
| Contact Finish | Gold |
| Configuration RX/TX | T,C |
| Turns Ratio RX/TX | 1CT:1CT |
| Operating Temperature | 0°C ~ 70°C |
What is the operating temperature range for this RJ45 connector?
The connector has an operating temperature range of 0°C to 70°C, making it suitable for standard commercial environments.
Does this RJ45 connector support Power over Ethernet (PoE)?
Yes, it supports Power over Ethernet (PoE) configurations up to 50 Watts and handles network transmission speeds up to 10 Gbit/s.
What standards are these magnetic components compliant with?
The components are fully compliant with IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, and upcoming IEEE 802.3bt standards.
What packaging options are standard for this part number?
The standard packaging is 110 pieces per tray. A complete shipping carton contains 550 pieces, dimensions are 34.5*34.5*27cm, with a gross weight of 5.5KGS.
What certifications do your manufacturing facilities hold?
Our manufacturing processes and facilities are fully certified under ISO9001:2000, RoHS, REACH, CE, and UL requirements.
Can you provide custom magnetic component solutions?
Yes, our professional engineering team is dedicated to developing, designing, and manufacturing optimized solutions tailored to unique customer requirements.
