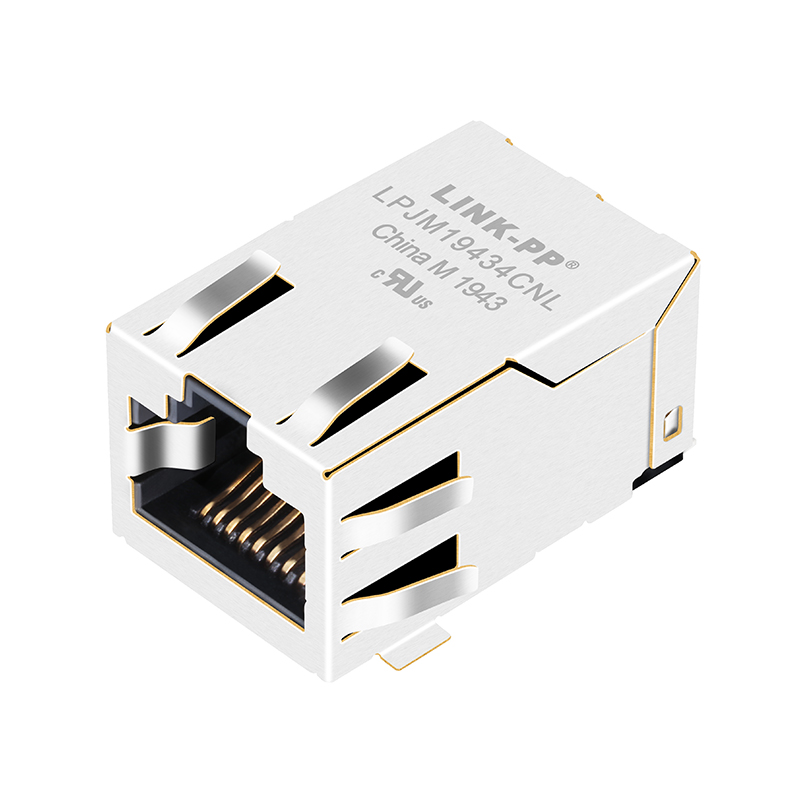

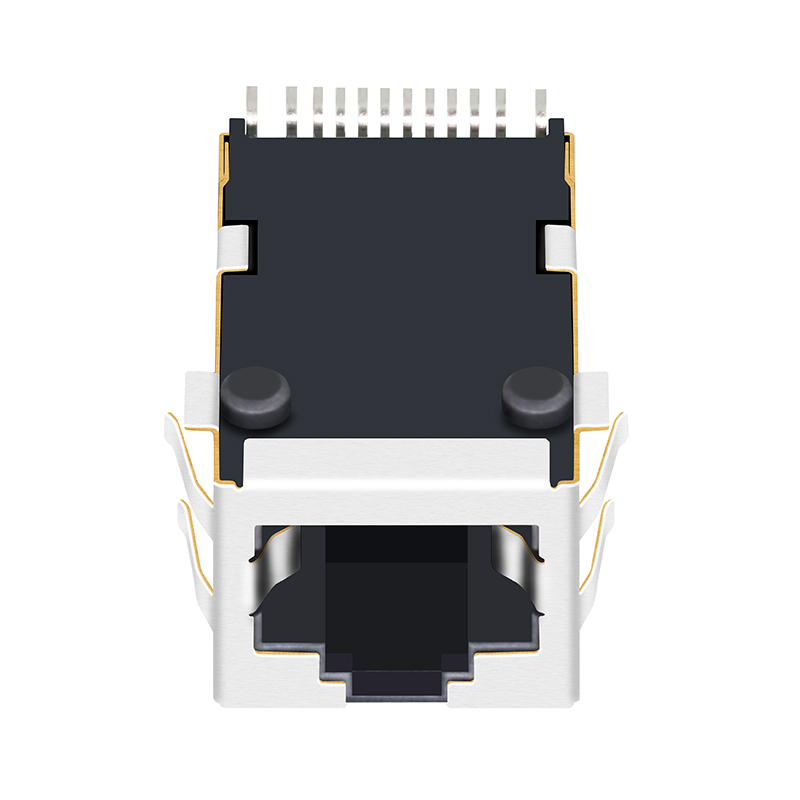

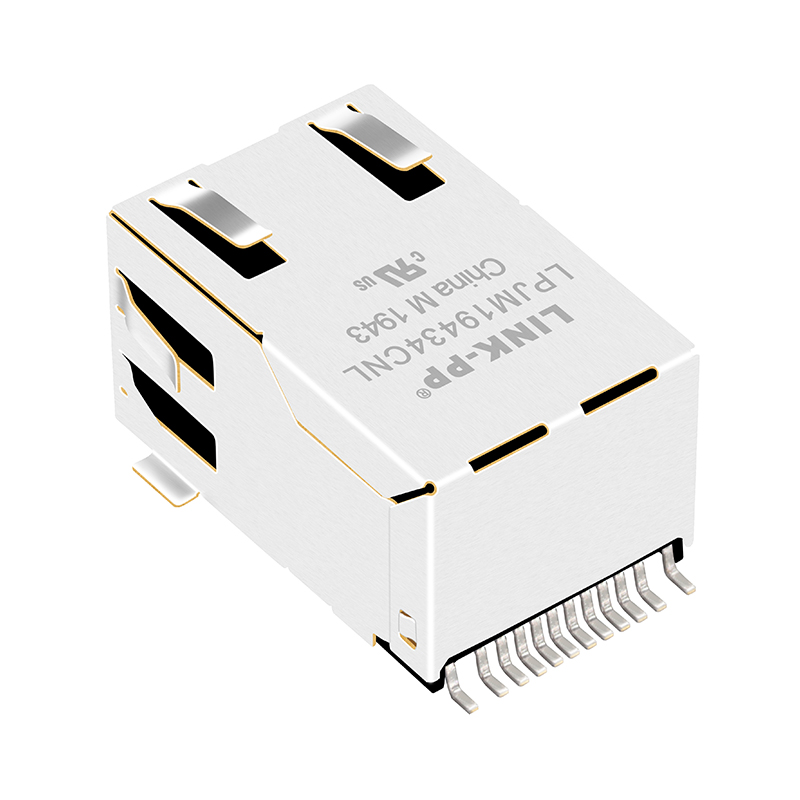

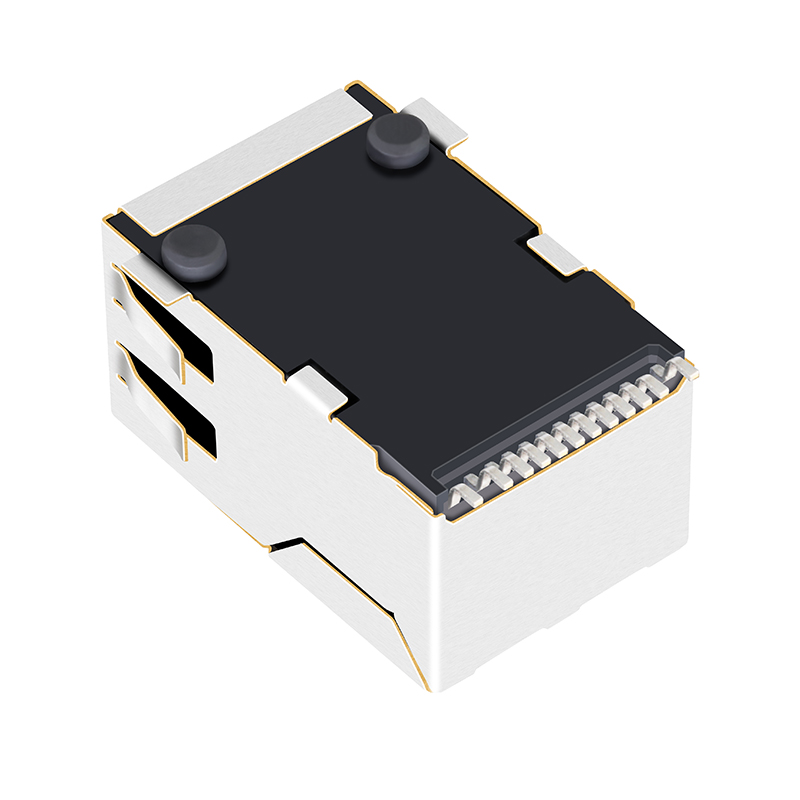

Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
1 / 5
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led

Tab up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led

Send Inquiry

Product Description

RJ45 Jack Connector
Tab Up 1 Port Shielded 2.5G Base-t SMT Female RJ45 Jack Connector Without Led
Products Description
Item RJ45 Female Connector
Part Number LPJM19434CNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 10p8c (RJ45, Ethernet)
Application-Lan Ethernet (Non PoE)
Number of Ports 1x1 Port, SMT
Speed 2.5g Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Without
PCB FR4
PCB Retaining Post T POST
Temperature -40°C TO 85°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

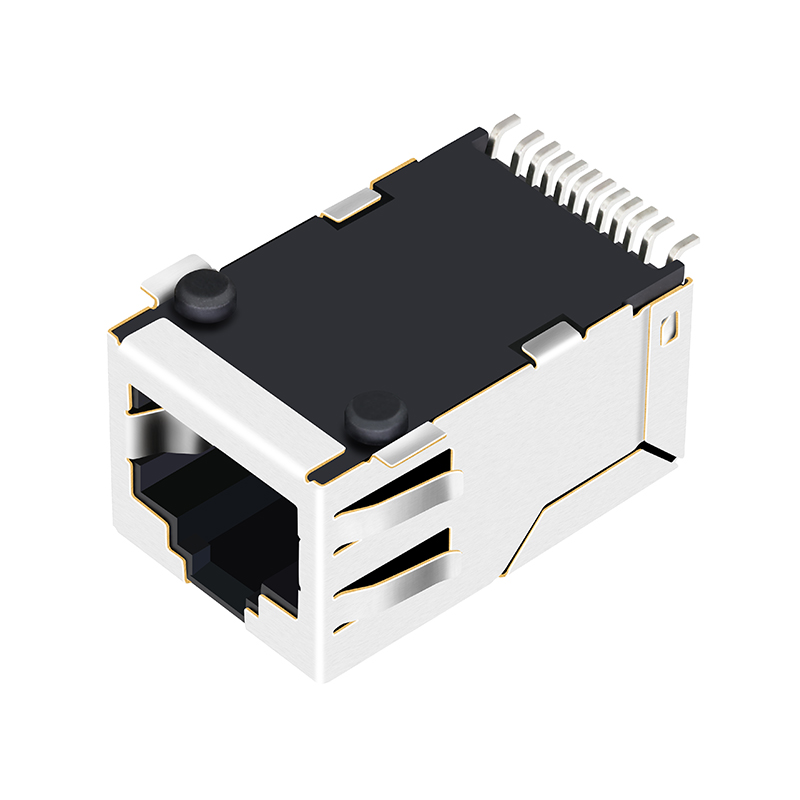

Product View 1 Product View 2
Detail View 1 Detail View 2 Detail View 3 Detail View 4
Product Range Category
Facility 1 Facility 2 Facility 3 Facility 4 Facility 5 Facility 6
Company Profile
Established in 1997, is a professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
As a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we support more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer company.
Company Operation 1 Company Operation 2
FAQ
? Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
? Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but you are responsible for covering the shipping fee.
? What is your delivery time?
We have items ready to ship for stock orders, and it takes 15-30 days for mass production.
? What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
? Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so we can proceed with a detailed discussion of your requirements.
? What is your advantage?
We have 19 years of manufacturing experience and have maintained partnerships with industry leaders for many years.
