Product Description

RJ45 Connectors and SFP Modules

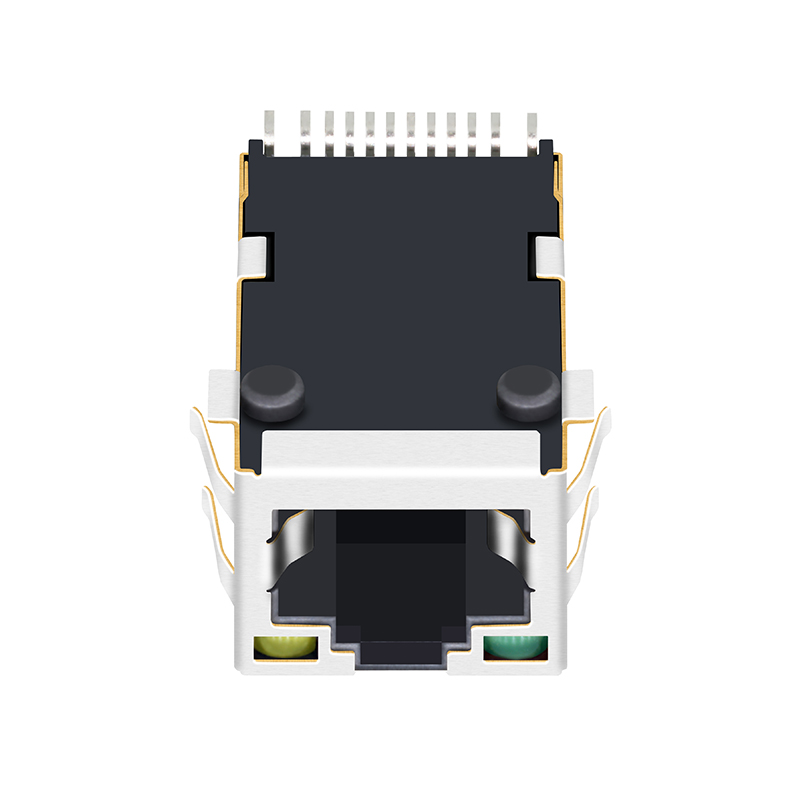

Tab Up 10/100 Base-t SMT RJ45 Connector Magnetic Ethernet Surface Mount RJ45 Jack With Leds
Products Description
Item RJ45 Female Connector
Part Number LPJ3011ABNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Up
Cores per Port 4
Orientation 90° Angle
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

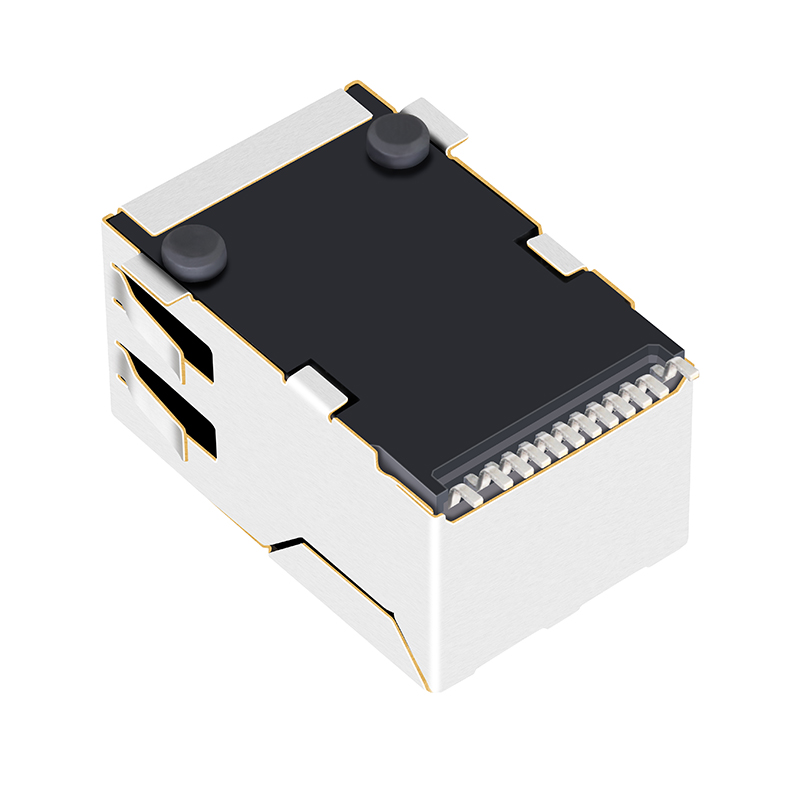

RJ45 SMT Connector Detail 1

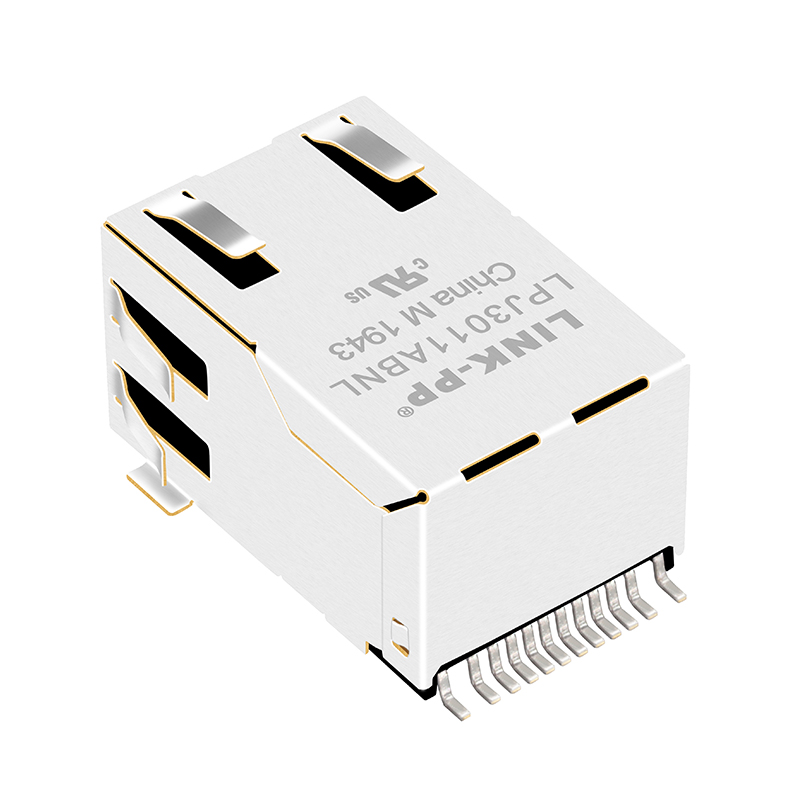

RJ45 SMT Connector Detail 2

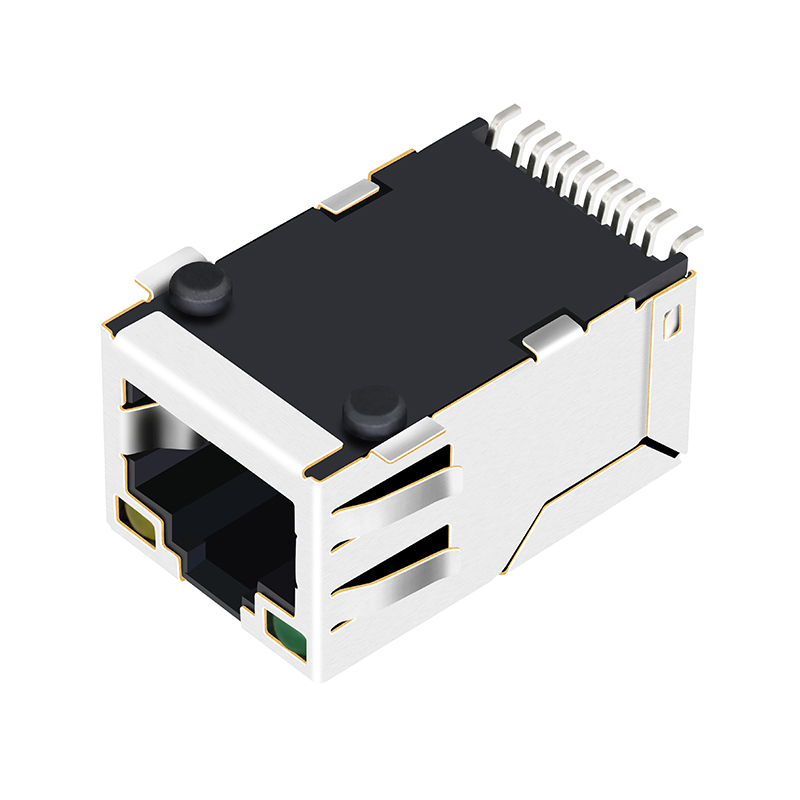

RJ45 SMT Connector Detail 3
RJ45 SMT Connector Detail 4
Product Variety Overview
Dimension Drawing
Recommended PCB Layout
Schematic Diagram
Mechanical Specification
Product Details
Additional Specifications
FAQ
Q Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Q Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but shipping costs will be applied.
Q What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
Q What after-service can you offer?
We provide a one-year guarantee period and offer online technical support 24 hours a day.
Q Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion.
Q What is your advantage?
We have 19 years of professional production experience and have been trusted partners with industry leaders for many years.
