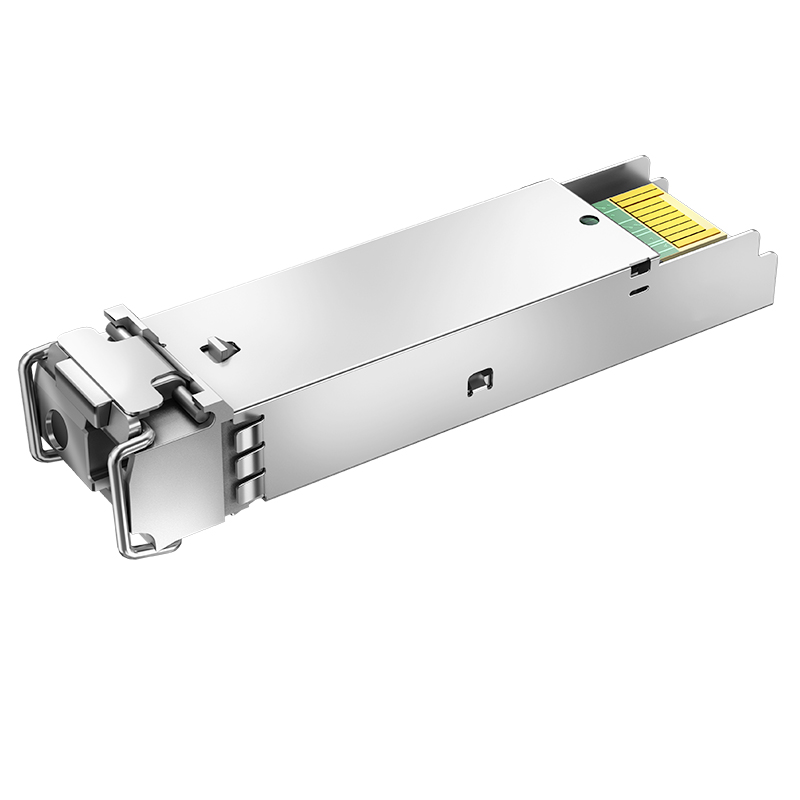

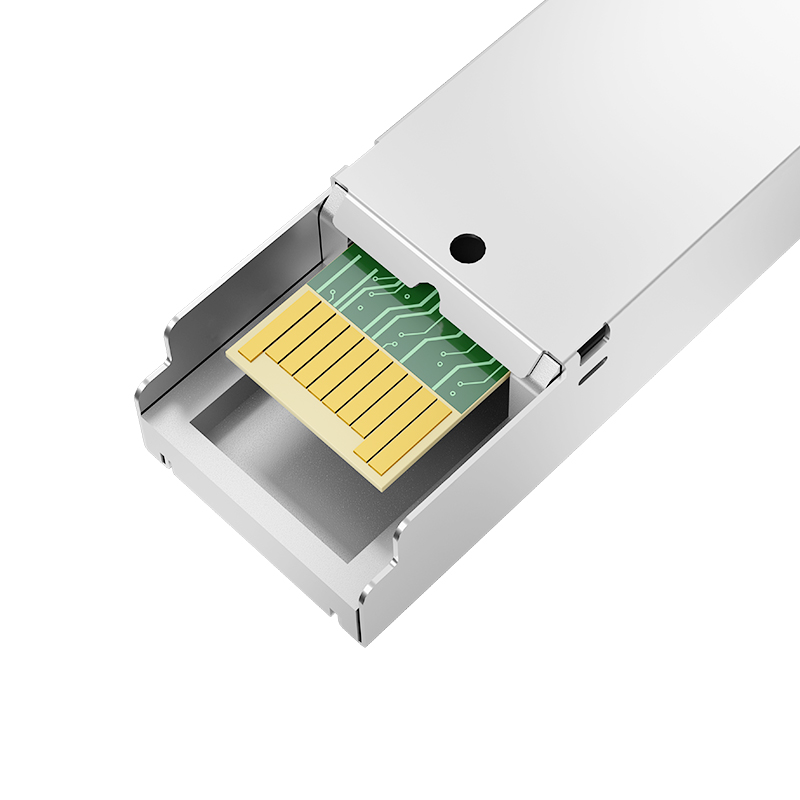

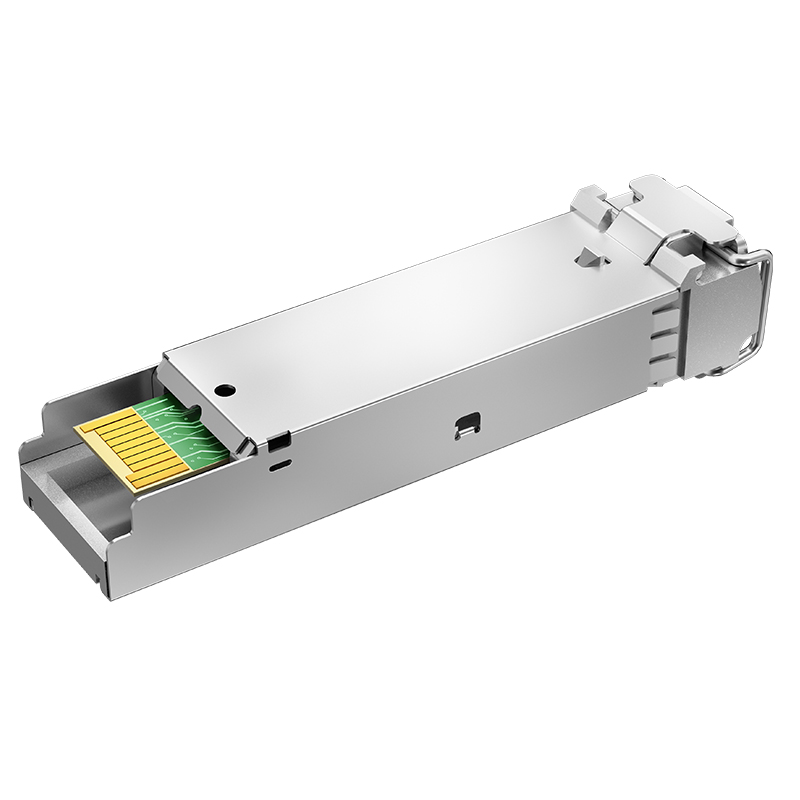

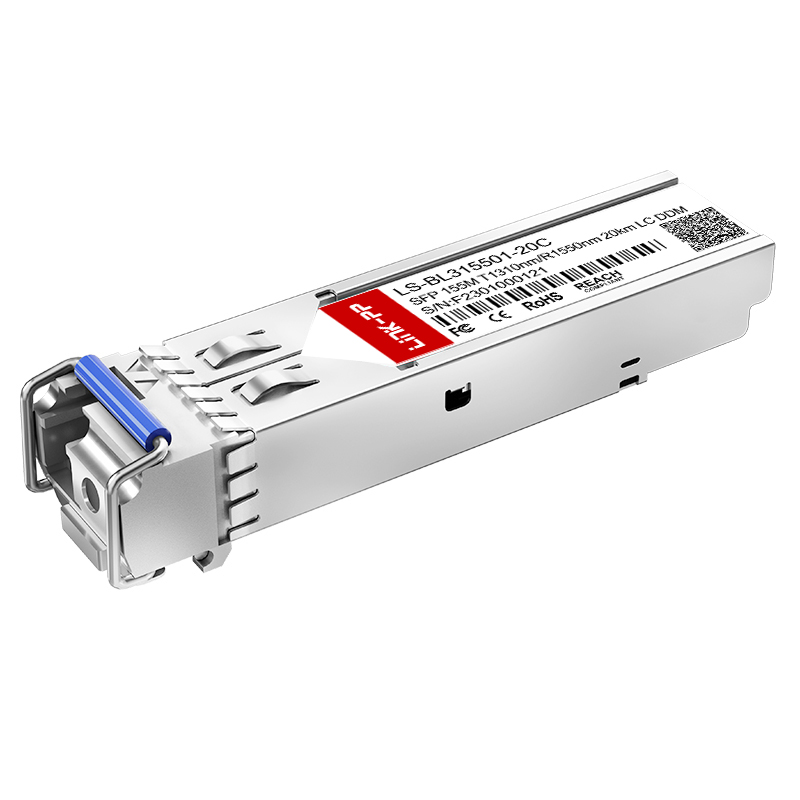

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 155M Bidi 20km LC Optical Transceiver Module

1 / 5

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 155M Bidi 20km LC Optical Transceiver Module

Send Inquiry

Product Description

Form Factor	SFP
Max Data Rate	155Mbps
Wavelength	1310nm-TX/1550nm-RX
Max Cable Distance	20km
Connector	Simplex LC
Media	SMF
Transmitter Type	FP
Receiver Type	PIN
TX Power	-14 ~ -8dBm
Receiver Sensitivity	< -30dBm
EMC (Electro Magnetic Compatibility)	Supported
DDM/DOM	Supported
Protocols	Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range	0 to 70°C / -40 to 85°C
Warranty	5 Years
Sample	Available

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Support Full Range Of 155M BiDi SFP

Part Number	Data Rate	Wavelength	Distance	Components	DDM
LS-BL315501-10C	155Mbps	1310nm-TX/1550nm-RX	10km	FP/PIN	Yes
LS-BL553101-10C	155Mbps	1550nm-TX/1310nm-RX	10km	FP/PIN	Yes
LS-BL315501-15C	155Mbps	1310nm-TX/1550nm-RX	15km	FP/PIN	Yes
LS-BL553101-15C	155Mbps	1550nm-TX/1310nm-RX	15km	FP/PIN	Yes

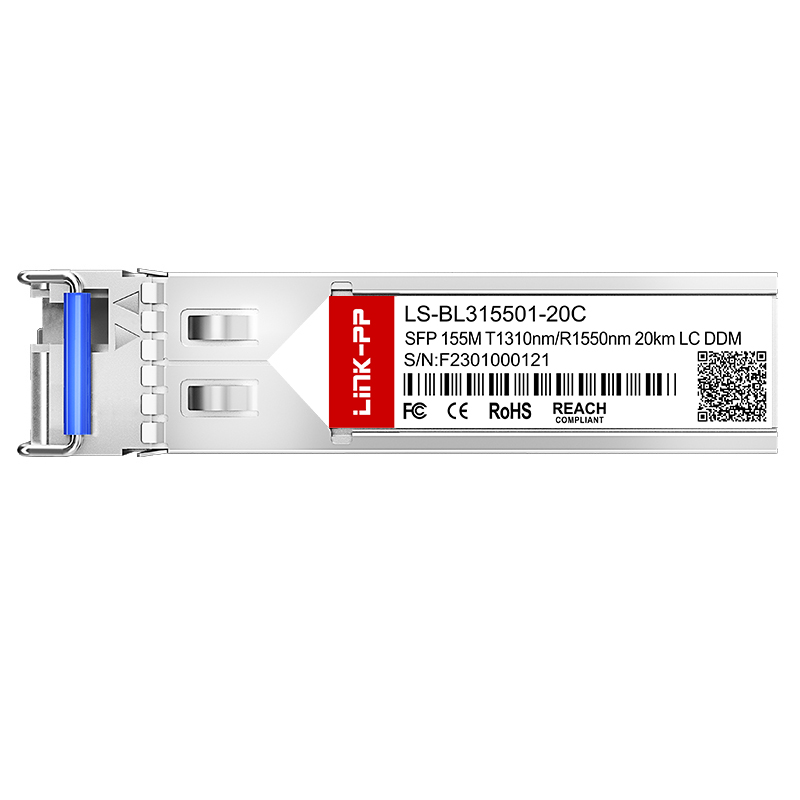

LS-BL315501-20C	155Mbps	1310nm-TX/1550nm-RX	20km	FP/PIN	Yes
LS-BL553101-20C	155Mbps	1550nm-TX/1310nm-RX	20km	FP/PIN	Yes
LS-BL315501-40C	155Mbps	1310nm-TX/1550nm-RX	40km	FP/PIN	Yes
LS-BL553101-40C	155Mbps	1550nm-TX/1310nm-RX	40km	FP/PIN	Yes
LS-BL315501-80C	155Mbps	1310nm-TX/1550nm-RX	80km	FP/PIN	Yes
LS-BL553101-80C	155Mbps	1550nm-TX/1310nm-RX	80km	FP/PIN	Yes
LS-BL495501-80C	155Mbps	1490nm-TX/1550nm-RX	80km	DFB/PIN	Yes
LS-BL554901-80C	155Mbps	1550nm-TX/1490nm-RX	80km	DFB/PIN	Yes

Applications and Solutions

Optical Transport Networks

We provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, OTDR, etc.

Cloud and Enterprise

To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Wireless

Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

FTTx

Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Related Products SFP Cage

Why Choose Us

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but shipping fees are standard and need to be covered.

What is your delivery time?

Products are ready to ship from stock, and it takes 15-30 days for mass production.

What after-service can you offer?

We offer a one-year guarantee period along with technical support online 24 hours.

Can you accept OEM/ODM orders?

Yes, please send an inquiry to us so that we can have a detailed discussion.

What is your advantage?

We have 19 years of dedicated production experience in network components.
