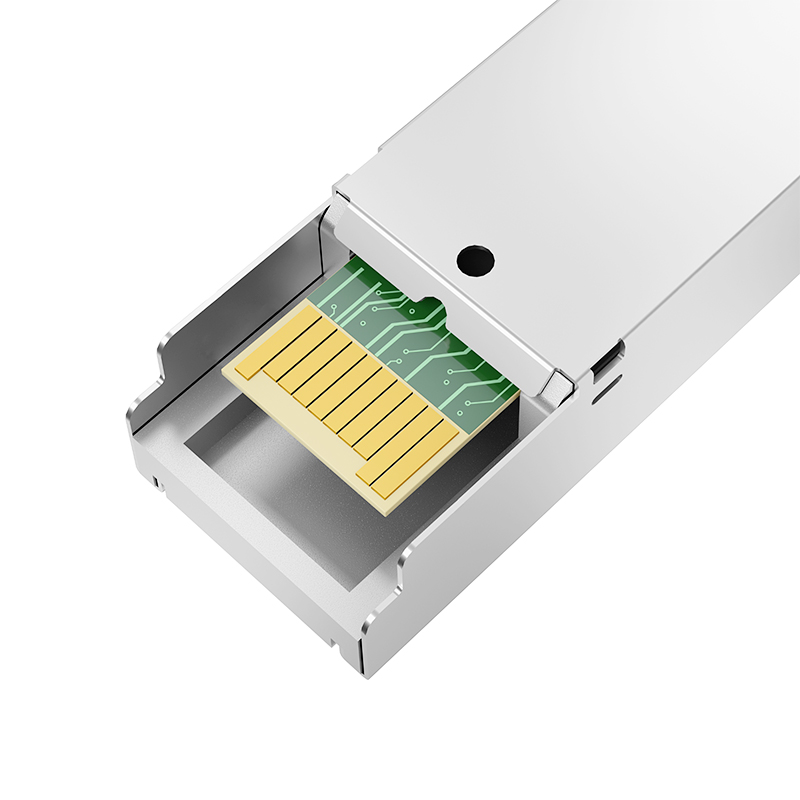

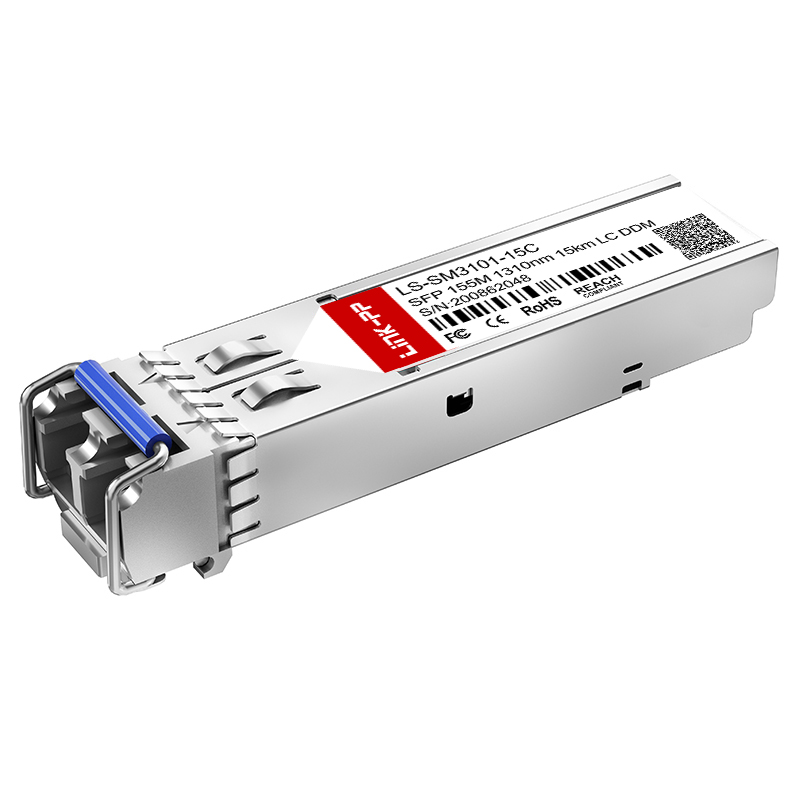

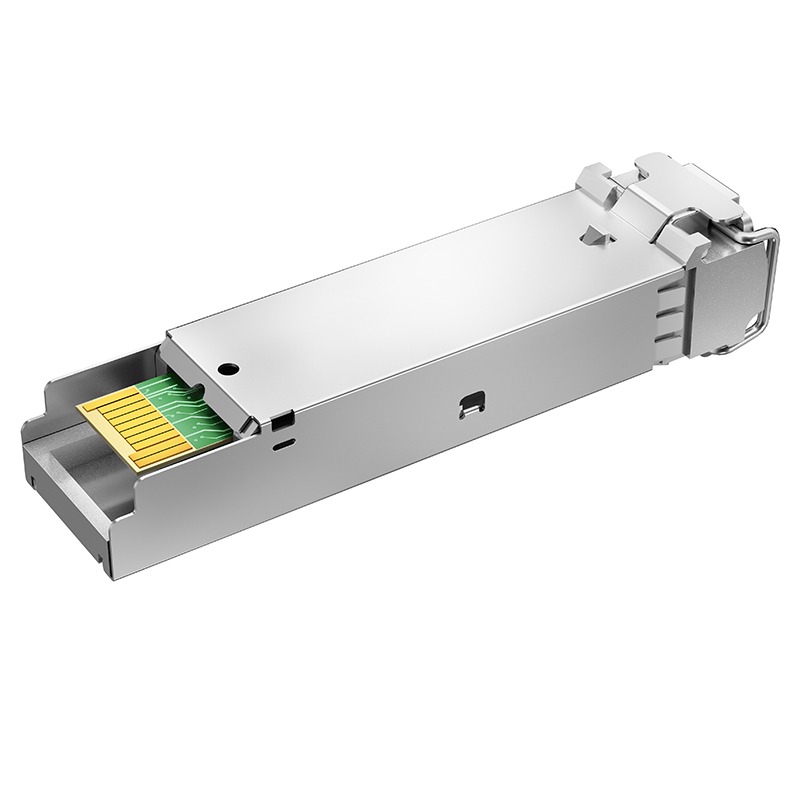

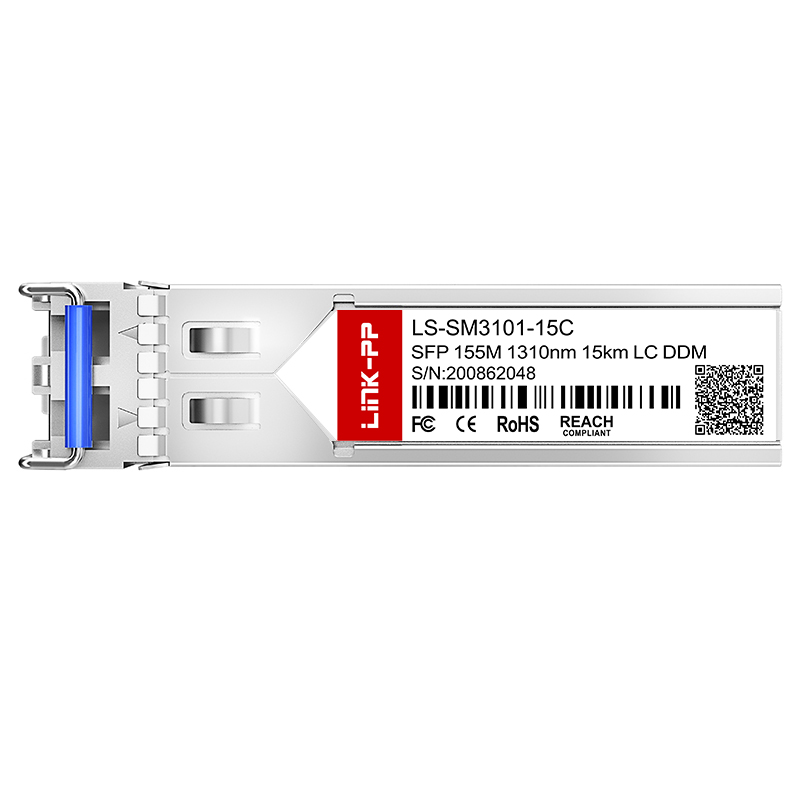

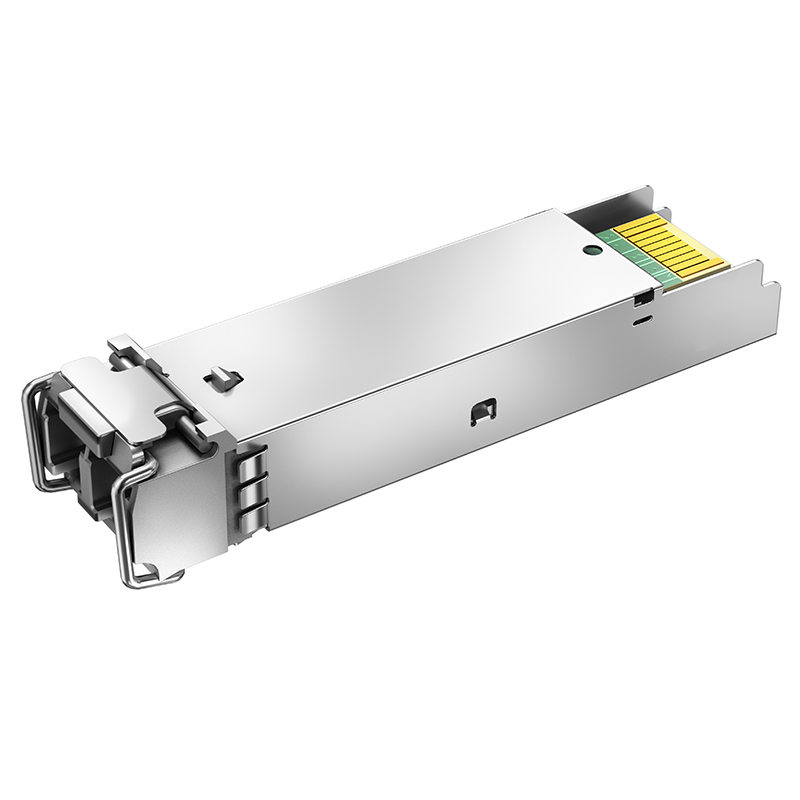

100BASE-LX Dual LC Single Mode SFP 1310nm 15km SMF Optical Transceiver Module
Products Description
| Item |
100BASE SFP |
| Part Status |
Active |
| Form Factor |
SFP |
| Max Data Rate |
100Mbps |
| Wavelength |
1310nm |
| Max Cable Distance |
15km |
| Media |
SMF |
| Connector |
Duplex LC |
| Optical Component |
FP 1310nm |
| TX Power |
-15~-8dBm |
| Receiver Sensitivity |
< -32.5dBm |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0 to 70°C (32 to 158°F) |
| Protocols |
IEEE802.3ab, GR-468, MSA Compliant |
| Warranty |
5 Years |
| Sample |
Available |
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is available for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
End-to-end DWDM devices can be configured with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Providing high reliability and performance products with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructers, FTTx optical fiber access total solutions cover from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
