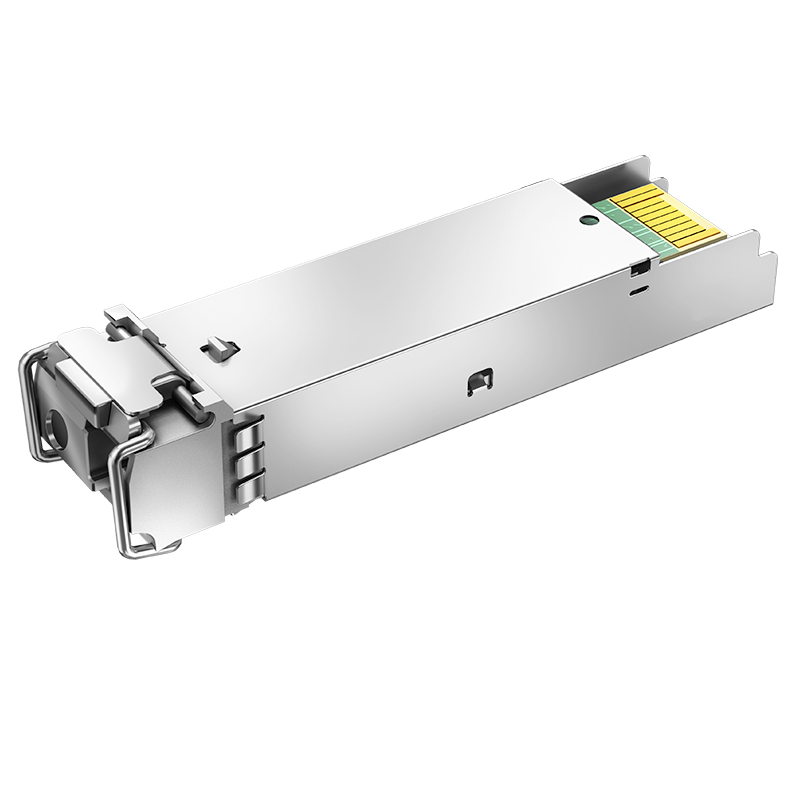

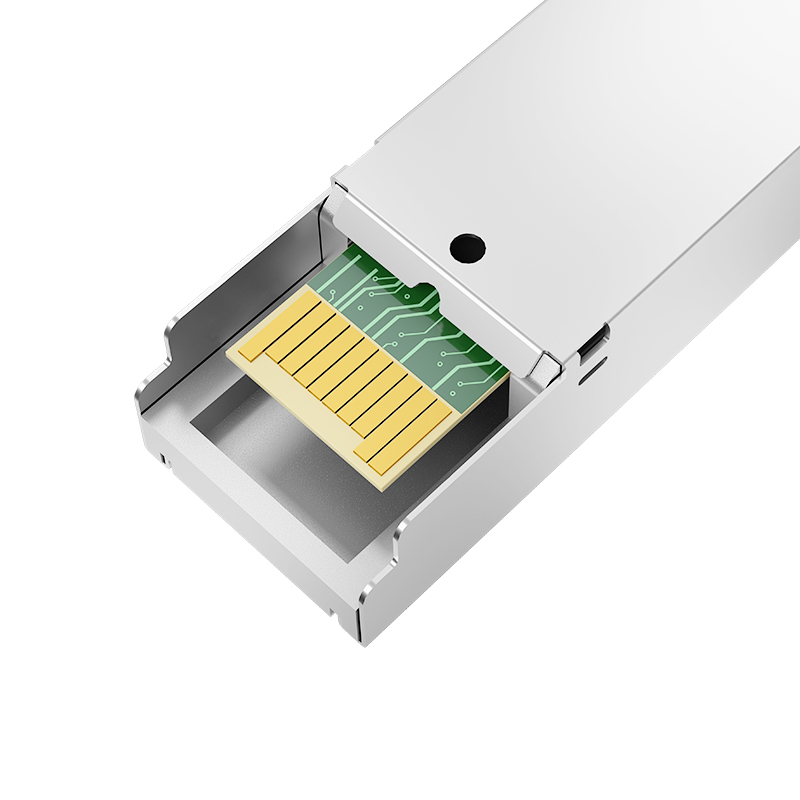

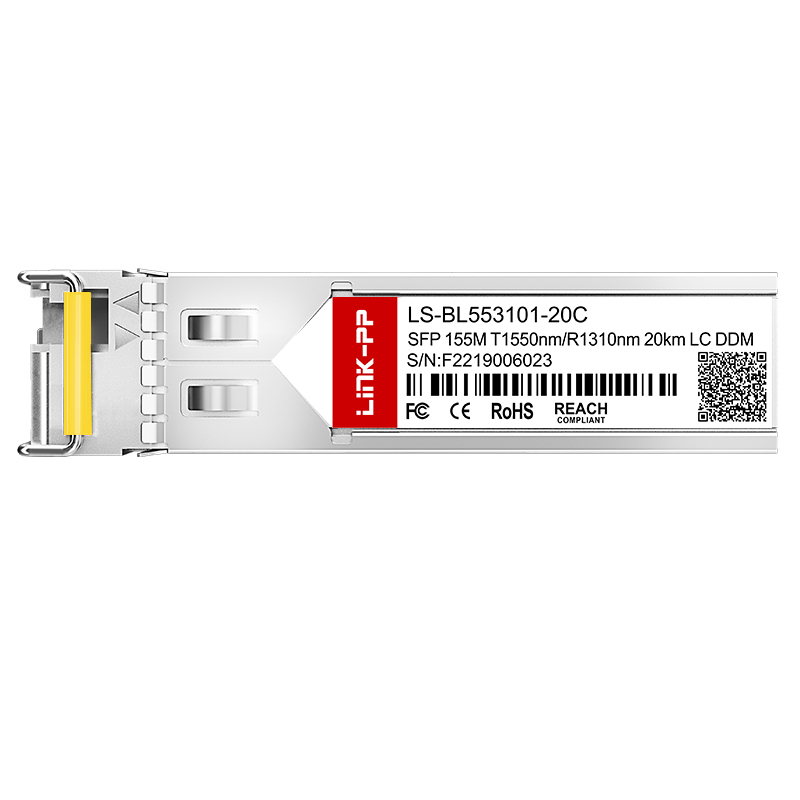

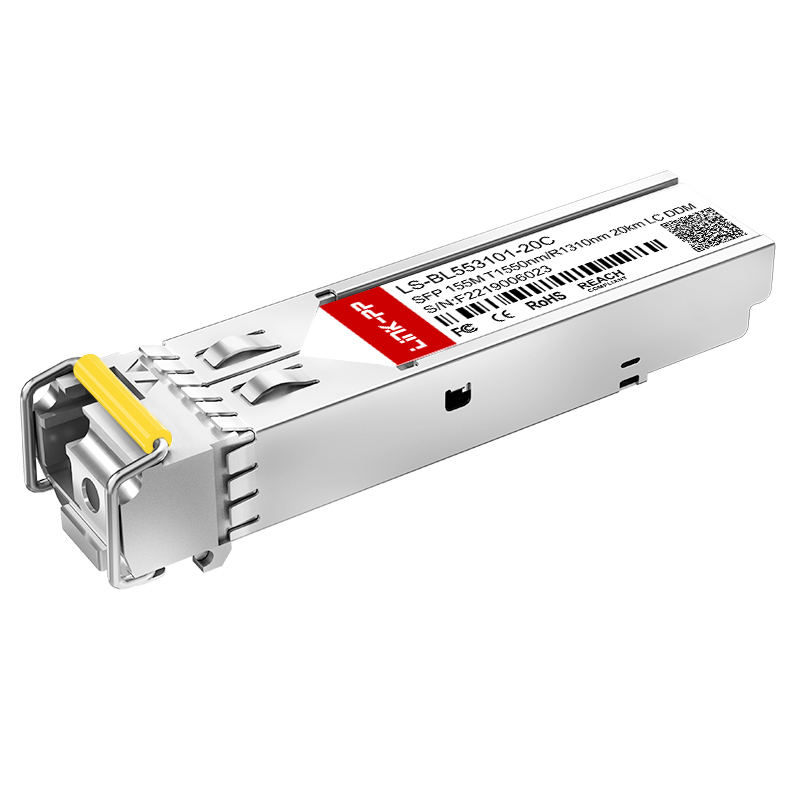

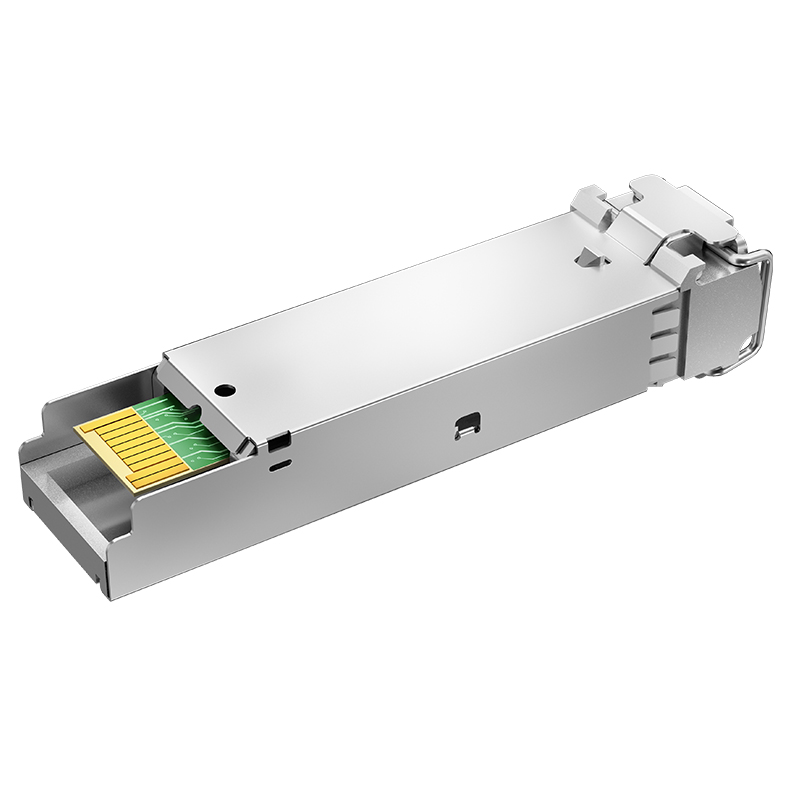

1550nm-TX/1310nm-RX Simplex LC 155M Bidi SFP 20km Single Mode Optic Transceiver Module

Product Description

1550nm-TX/1310nm-RX Simplex LC 155M Bidi SFP 20km Single Mode Optic Transceiver Module
Parameter Specification
Part No. LS-BL553101-20C
Form Factor SFP
Max Data Rate 155Mbps
Wavelength 1550nm-TX/1310nm-RX
Max Cable Distance 20km
Connector Simplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
TX Power -14 ~ -8dBm
Receiver Sensitivity < -30dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module.

Our solutions provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transceiver Module
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C 155Mbps 1310nm-TX/1550nm-RX 10km FP/PIN Yes
LS-BL553101-10C 155Mbps 1550nm-TX/1310nm-RX 10km FP/PIN Yes
LS-BL315501-15C 155Mbps 1310nm-TX/1550nm-RX 15km FP/PIN Yes
LS-BL553101-15C 155Mbps 1550nm-TX/1310nm-RX 15km FP/PIN Yes
LS-BL315501-20C 155Mbps 1310nm-TX/1550nm-RX 20km FP/PIN Yes
LS-BL553101-20C 155Mbps 1550nm-TX/1310nm-RX 20km FP/PIN Yes
LS-BL315501-40C 155Mbps 1310nm-TX/1550nm-RX 40km FP/PIN Yes
LS-BL553101-40C 155Mbps 1550nm-TX/1310nm-RX 40km FP/PIN Yes
LS-BL315501-80C 155Mbps 1310nm-TX/1550nm-RX 80km FP/PIN Yes
LS-BL553101-80C 155Mbps 1550nm-TX/1310nm-RX 80km FP/PIN Yes
LS-BL495501-80C 155Mbps 1490nm-TX/1550nm-RX 80km DFB/PIN Yes
LS-BL554901-80C 155Mbps 1550nm-TX/1490nm-RX 80km DFB/PIN Yes
Specifications Diagram
