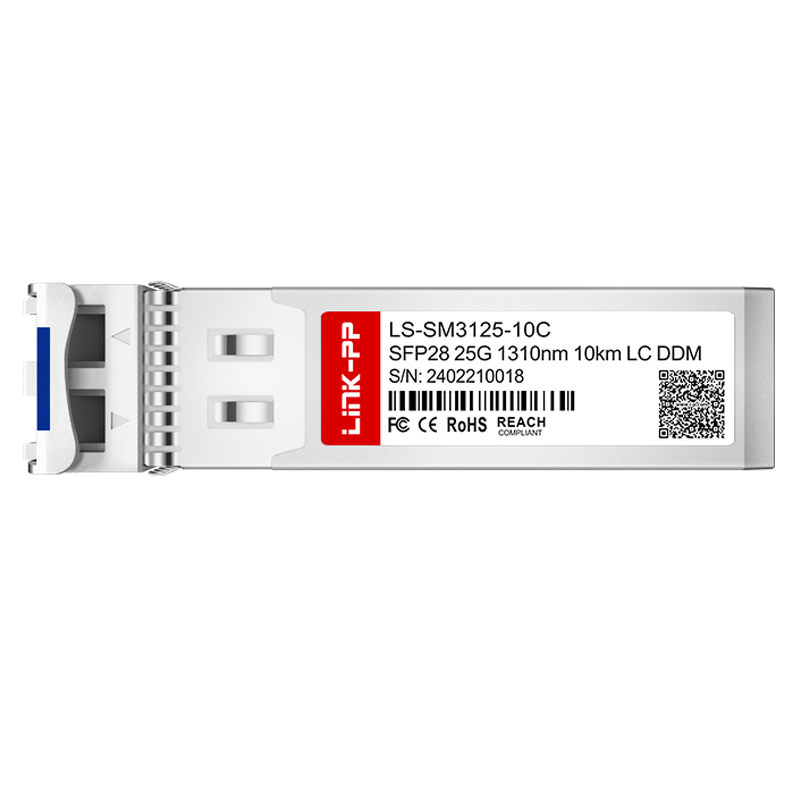

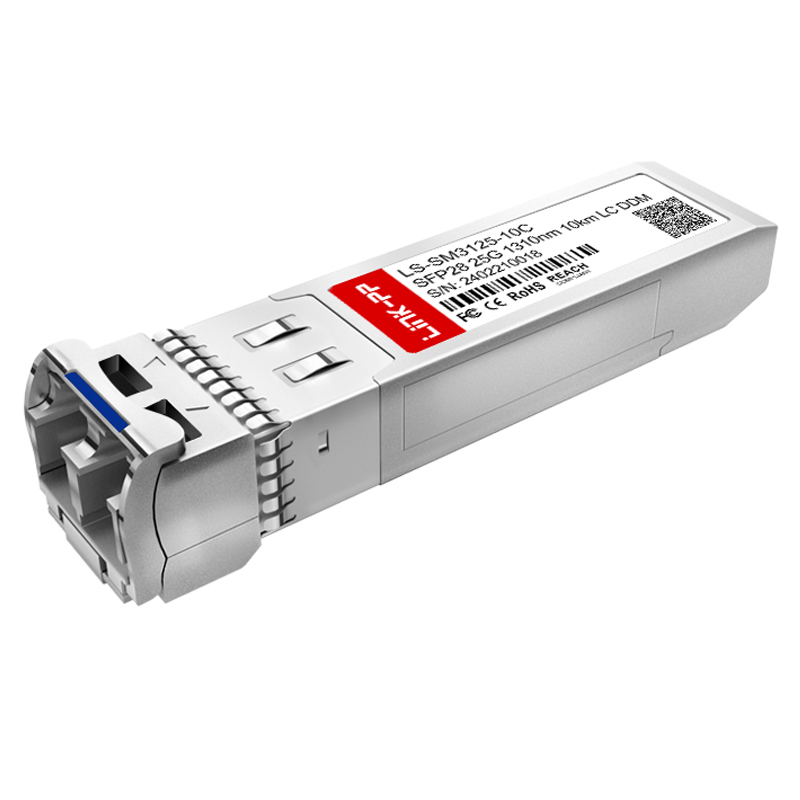

Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
1 / 5
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module

Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module

Send Inquiry

Product Description

Cisco SFP-25G-LR-S Compatible Single Mode 1310nm 25G SFP28 10km SMF LC Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-SM3125-10C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1310nm
Max Cable Distance 10km
Media SMF
Connector Duplex LC
Optical Component DFB/PIN
TX Power -4~2dBm
Receiver Sensitivity <-12dBm
Receiver Overload 2dBm
Power Consumption ≤1.2W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0℃ to 70°C / -40℃ to 85℃
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
