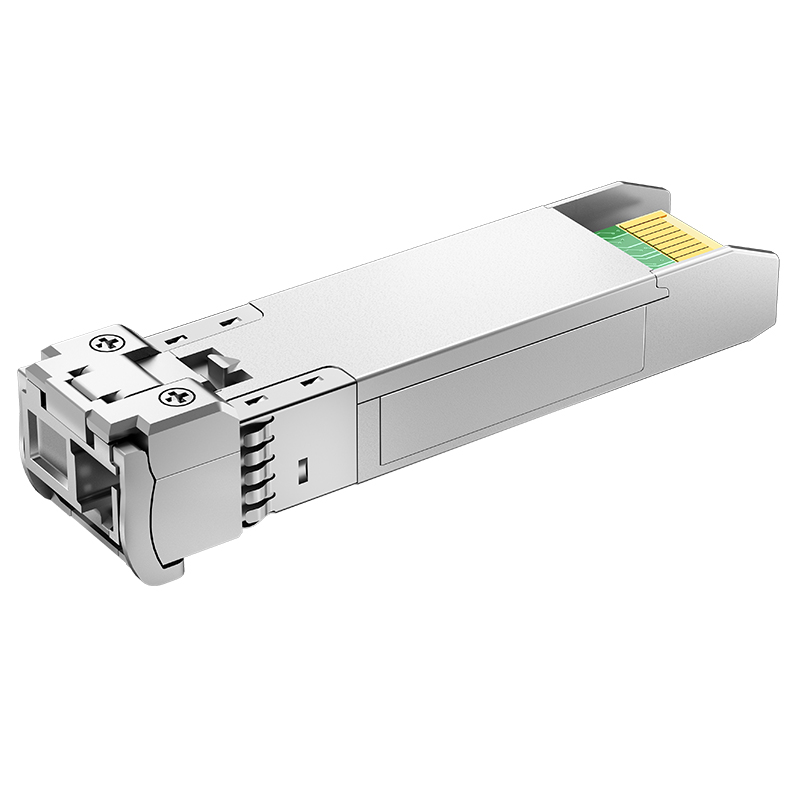

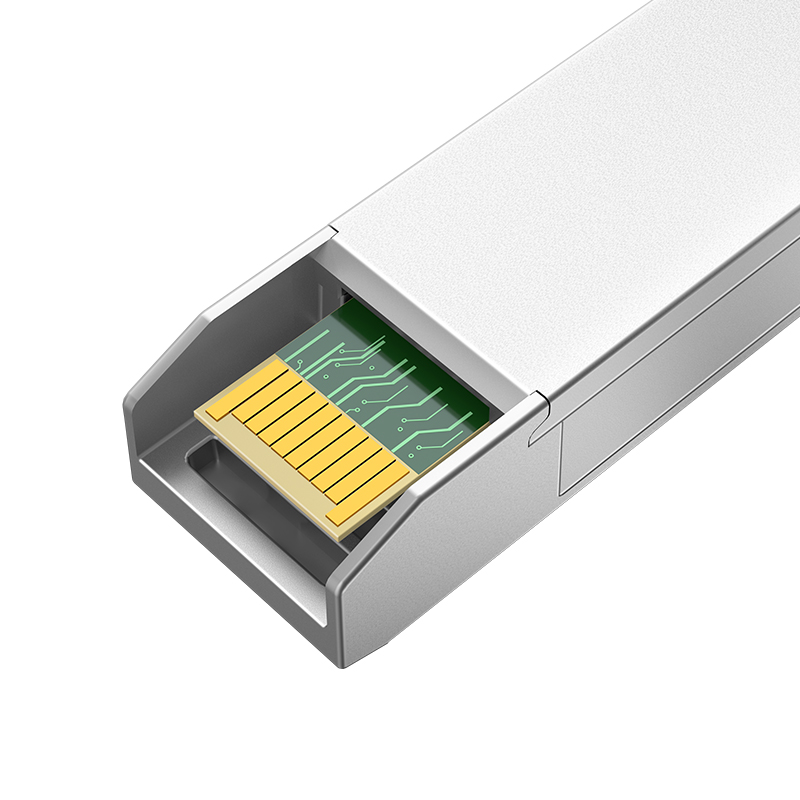

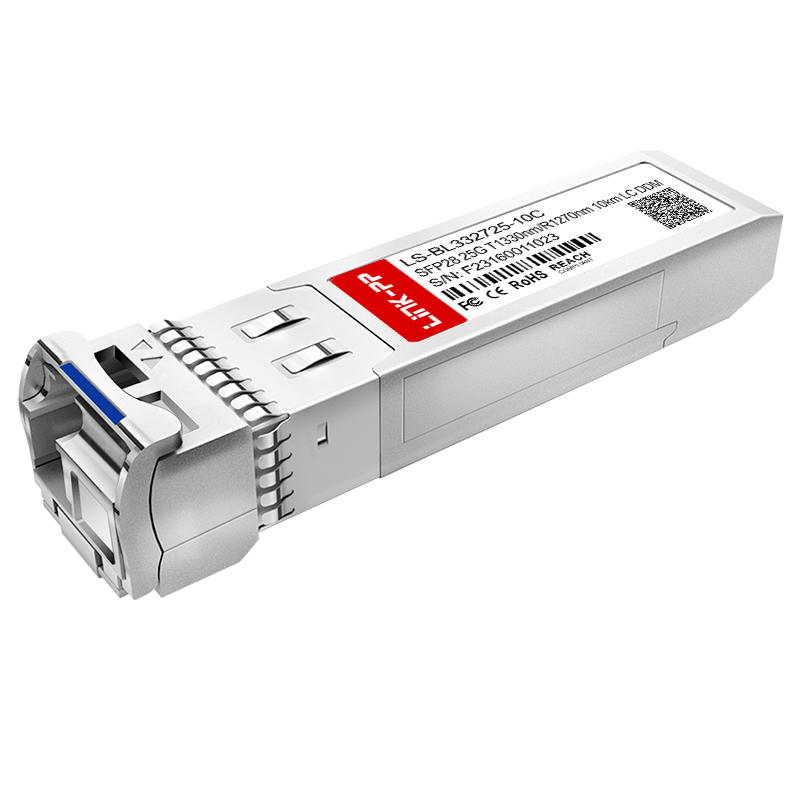

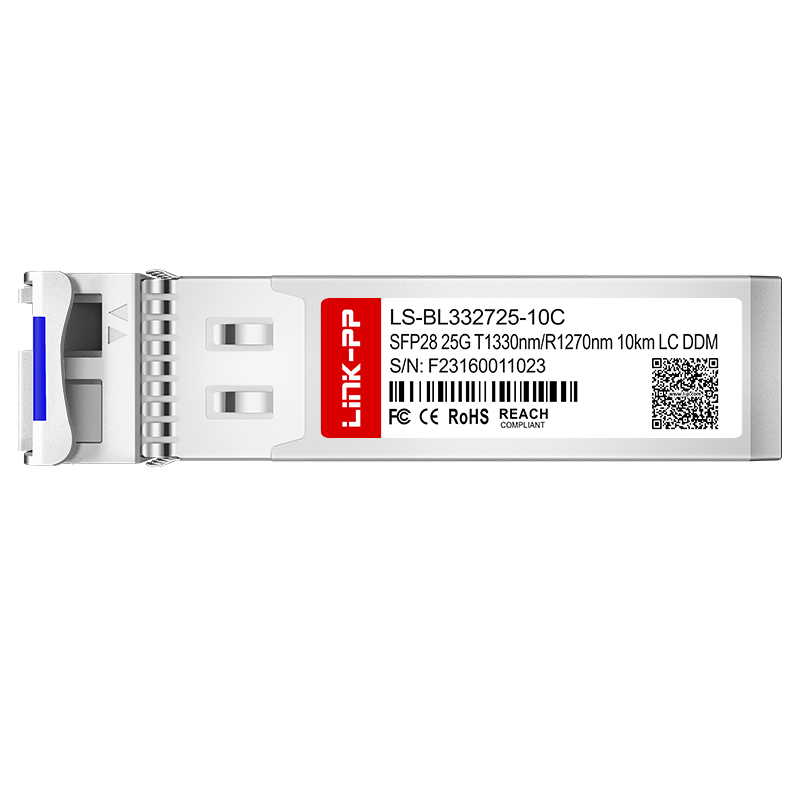

Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
1 / 5
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km

Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km

Send Inquiry

Product Description

Bidirectional Optical Module 1330nm-TX/1270nm-RX Single Mode SFP28 25G BiDi Transceiver 10km
Products Description
Item 25G SFP28 Transceiver
Part No. LS-BL332725-10C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 1330nm-TX/1270nm-RX
Max Cable Distance 10km
Media SMF
Connector Simplex LC
Optical Component DFB/PIN
TX Power -2~4dBm
Receiver Sensitivity <-13dBm
Receiver Overload 2dBm
Power Consumption ≤1W
Extinction Ratio 3.5dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols MSA Compliant, CPRI, eCPRI
Warranty 5 Years
Sample Available
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Architecture
Product Category Matrix
Solution Overview 1
Solution Overview 2
Solution Overview 3
Application Scenarios
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless Networks
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx Broadband Access
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
Subsystems Integration
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
System Interconnectivity
Related Products SFP Cage
Related SFP Cage Products
Why Choose Us
Quality Standard Certificate
Production Capability Info
Professional Testing Equipment
Global Supply Chain Support
Manufacturing Facilities
Factory Testing Laboratory
Automatic Production Line
Global Quality Standards Overview
Frequently Asked Questions
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
2. Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but shipping costs must be covered by the customer.
3. What is your delivery time?
We have products ready to ship for stock items. For mass production orders, the delivery time is between 15 to 30 days.
4. What after-service can you offer?
We provide a one-year guarantee period along with 24-hour online technical support.
5. Can you accept OEM/ODM orders?
Yes, please contact us with your specifications so that we can have a detailed discussion regarding your project requirements.
6. What is your competitive advantage?
We have over 19 years of manufacturing and design experience, and we have been trusted partners with global top-tier enterprises for many years.
