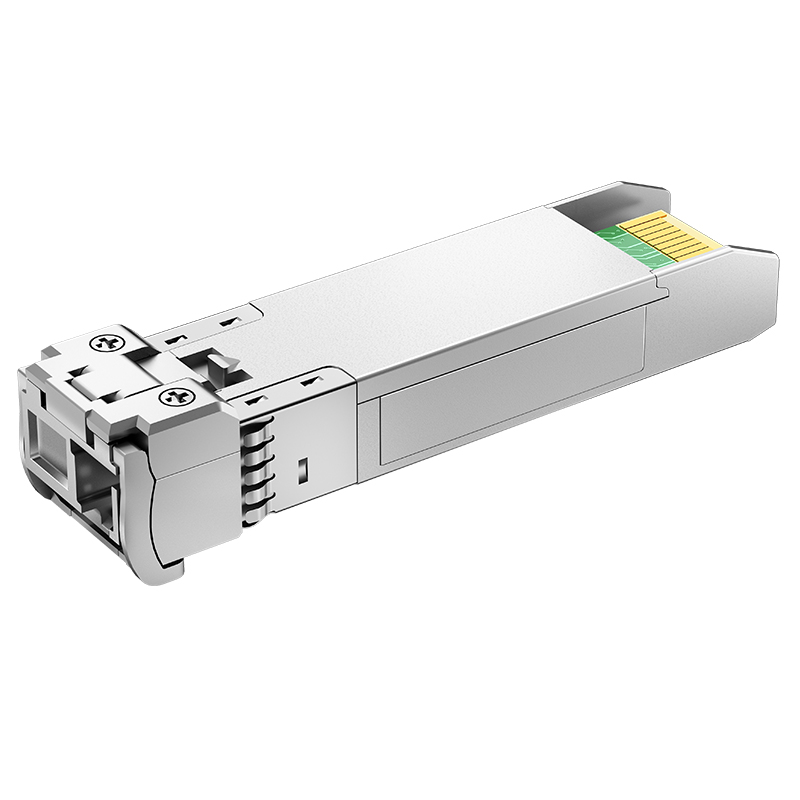

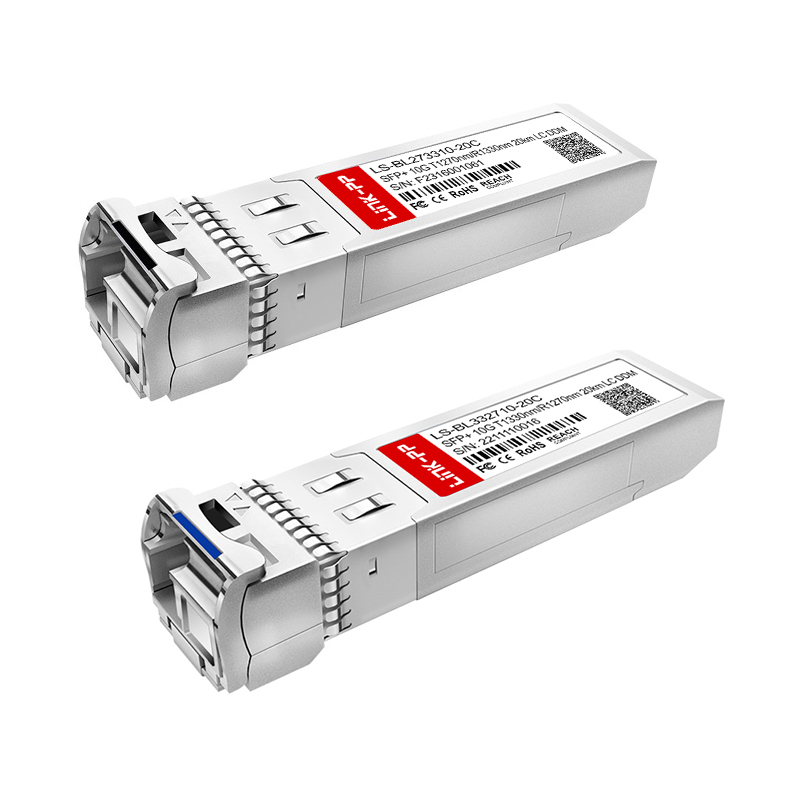

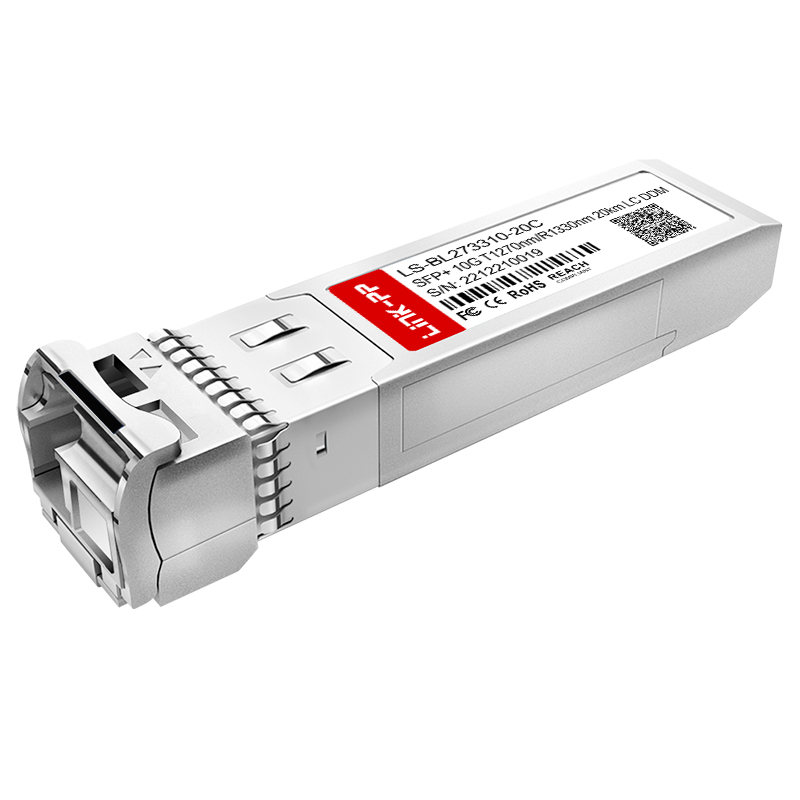

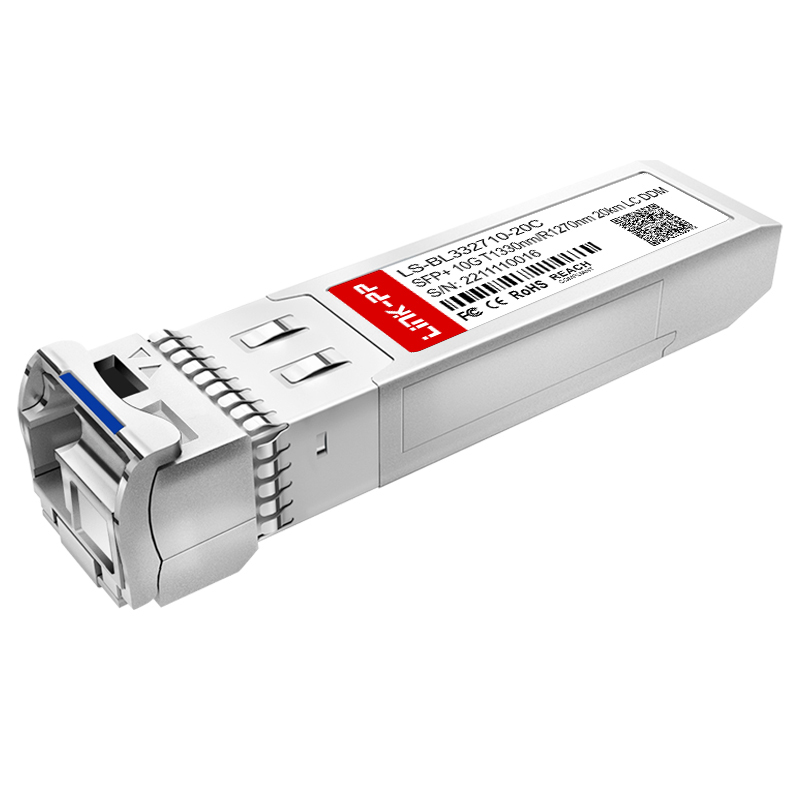

| Item | 10G BiDi SFP+ |
| Part Status | Active |
| Form Factor | SFP+ |
| Max Data Rate | 10G |
| Max Cable Distance | 20km |
| Wavelength | 1270nm/1330nm |
| Connector | Simplex LC |
| Optical Components | DFB/PIN |
| Media | SMF |
| TX Power | -6~3dBm |
| Receiver Sensitivity | <-14.4dBm |
| Powerbudget | 8.4dB |
| Receiver Overload | 0.5dBm |
| Power Consumption | ≤1W |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | SFP+ MSA Compliant, CPRI, eCPRI |
| Warranty | 5 Years |
| Sample | Available |
We provide end-to-end DWDM devices with almost all optical elements - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR, etc.
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
Aiming at global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
