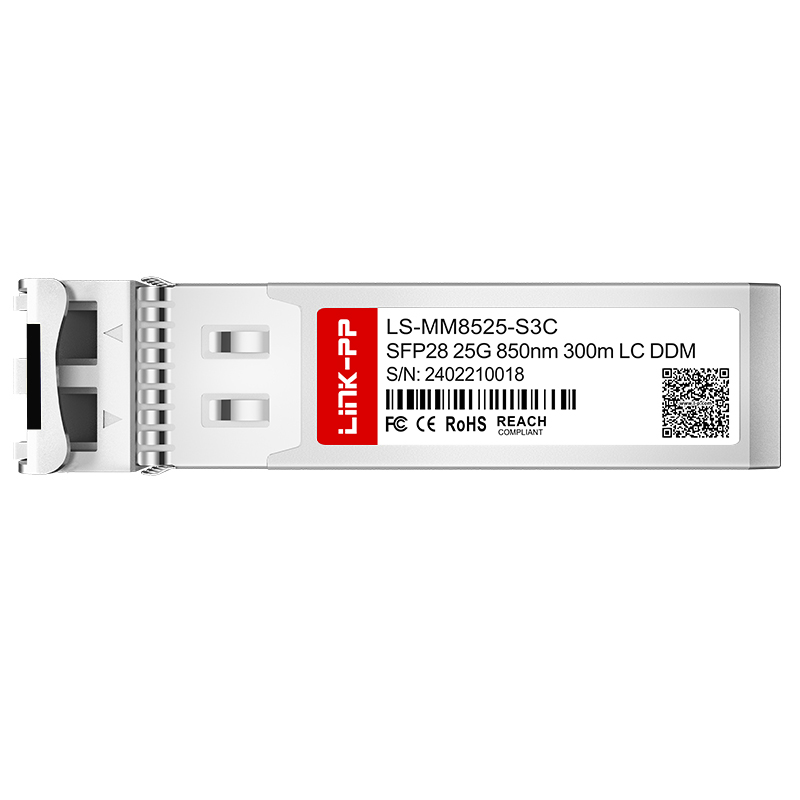

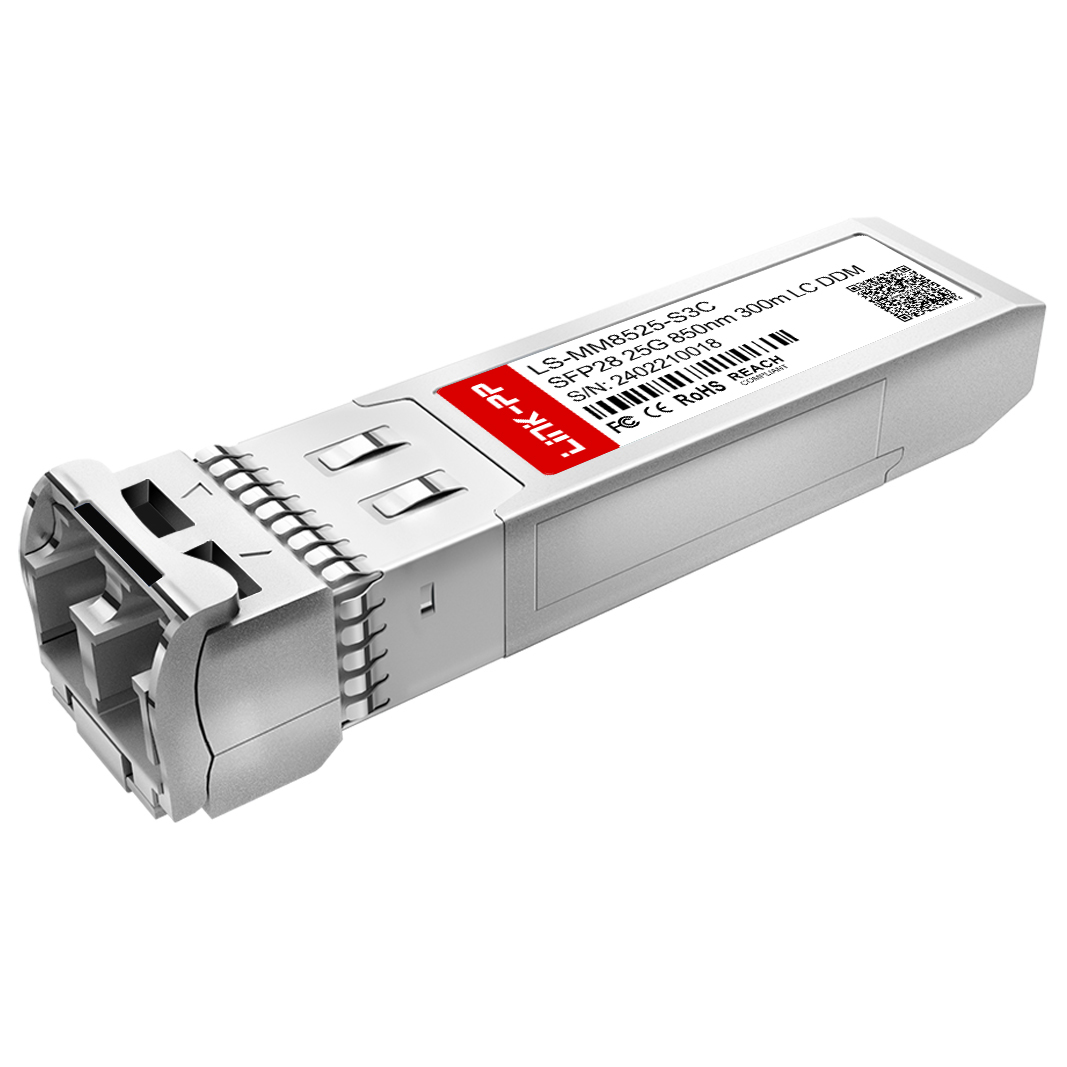

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
1 / 5
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module

Send Inquiry

Product Description

Multimode 850nm 25G SFP28 Transceiver 300m DDM MMF LC Optical Transceiver Module
Products Description
Item 25G SFP28 Transceiver
Part No. LS-MM8525-S3C
Part Status Active
Form Factor SFP28
Max Data Rate 25Gbps
Wavelength 850nm
Max Cable Distance 300m
Media MMF
Connector Duplex LC
Optical Component VCSEL/PIN
TX Power -6.4~2.4dBm
Receiver Sensitivity <-6dBm
Receiver Overload 2.4dBm
Power Consumption ≤1W
Extinction Ratio 2dB
DDM/DOM Supported
Commercial Temperature Range 0°C to 70°C / -40°C to 85°C
Protocols SFP28 MSA Compliant, SFF-8472, SFF-8024, SFF-8431, SFF-8432
Warranty 5 Years
Sample Available
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Solution Overview
SFP Module Family
Quality Standard Control
Testing and Verification
Global Network Solution
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier(EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aim to global communication network constructers, we provide FTTx optical fiber access total solutions covered from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Integrated Telecom Solution
★ Related Products SFP Cage ★
SFP Cage Related Products
Why Choose Us
Quality Testing Verification R&D Capabilities Automated Manufacturing Line Global Shipping Safety
Manufacturing Facilities
Production Workshop Testing Equipment Laboratory
FAQ
QAre you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
QCan I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee needs to be paid by the customer.
QWhat is your delivery time?
Ready-to-ship items are dispatched quickly from stock, and it takes 15-30 days for mass production orders.
QWhat after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
QCan you accept OEM/ODM orders?
Yes, please send your requirements to us so that we can have a detailed discussion regarding customization.
QWhat is your main advantage?
We have over 19 years of dedicated production experience in optical modules and network components, backed by advanced manufacturing and testing equipment.
