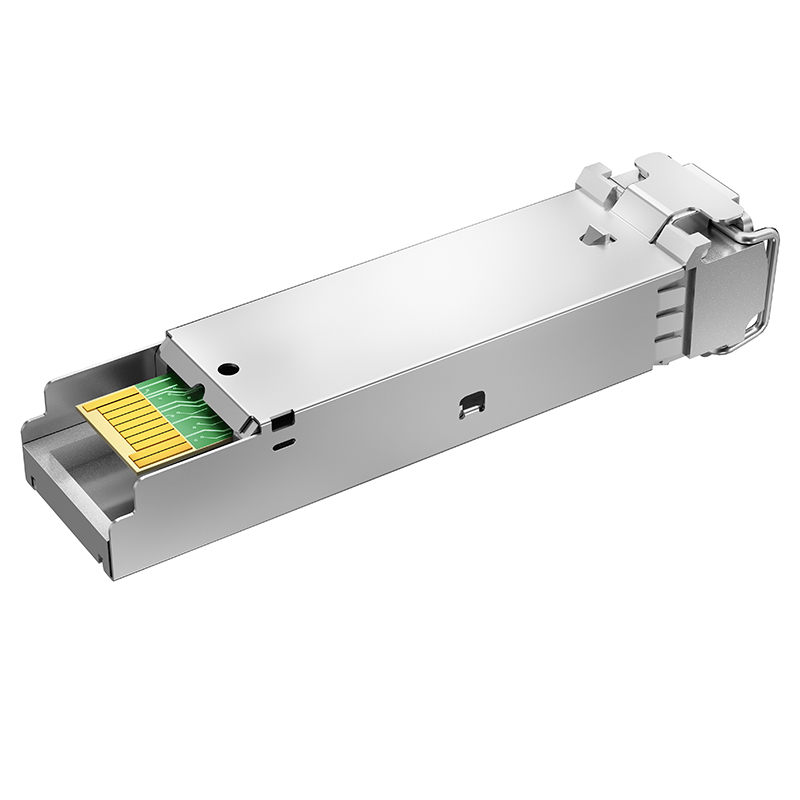

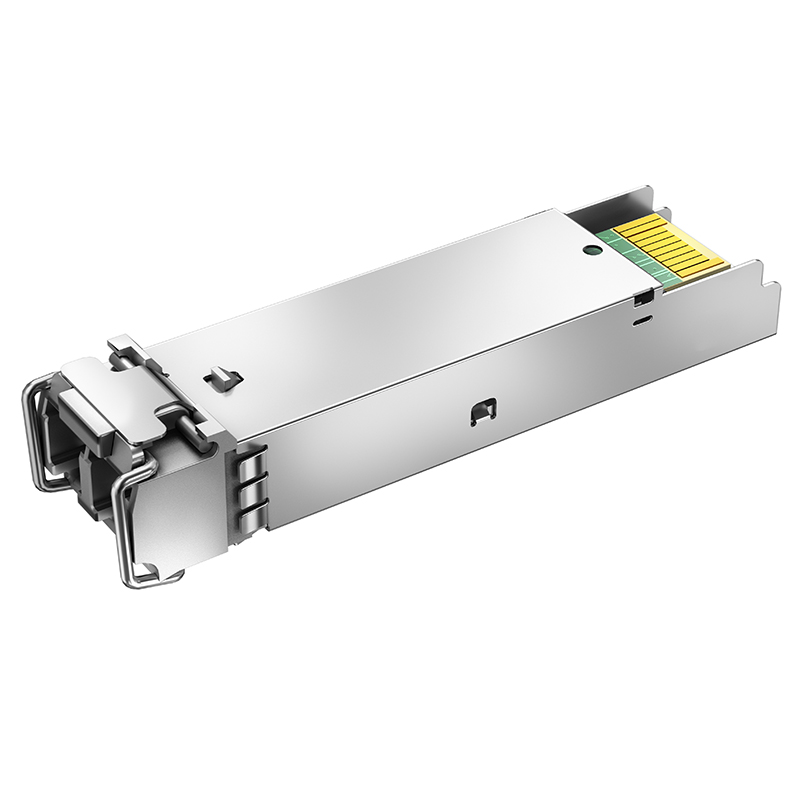

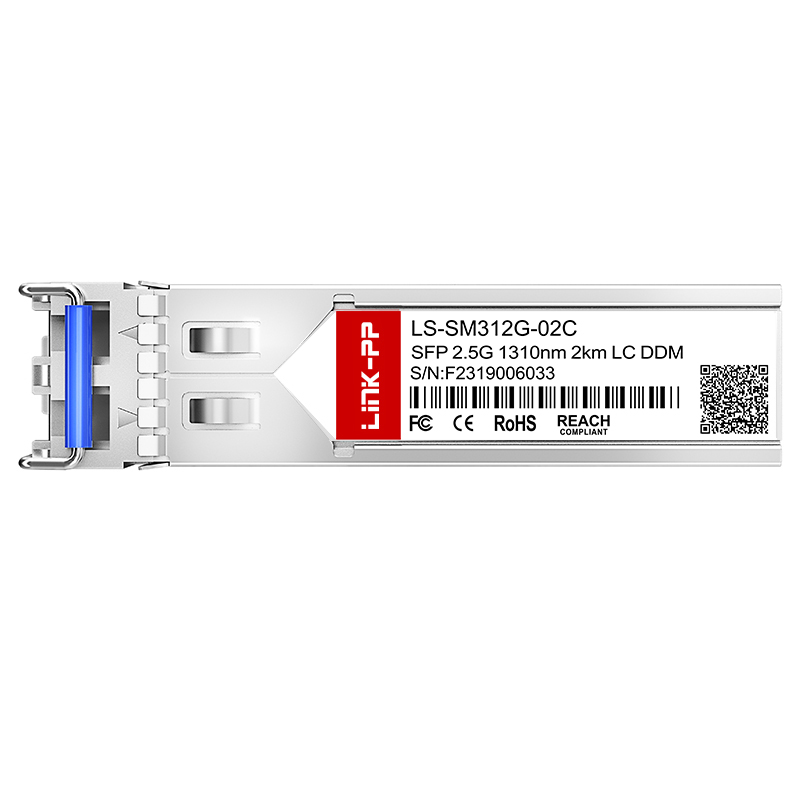

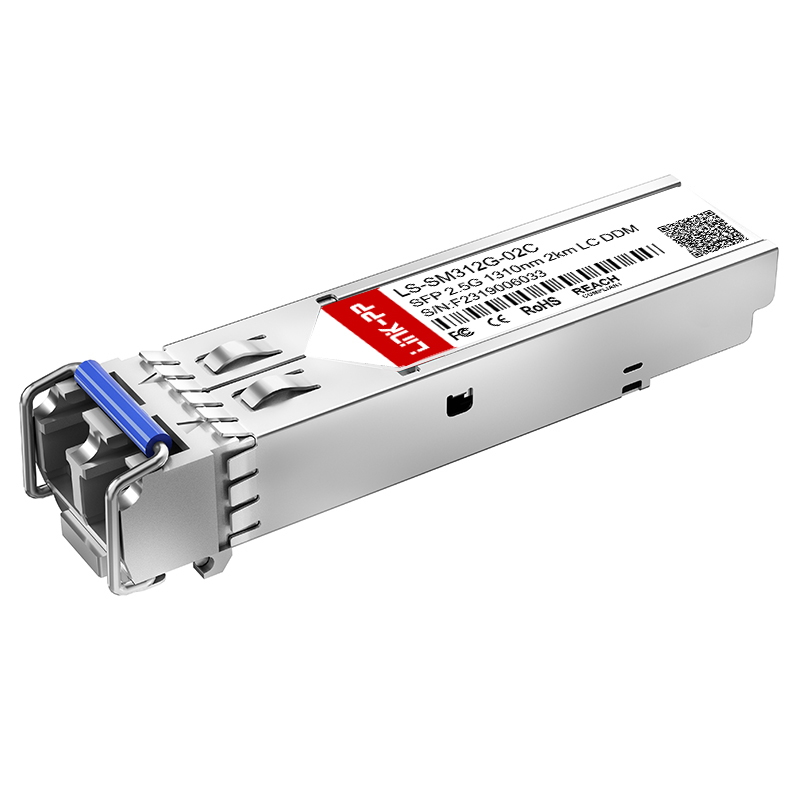

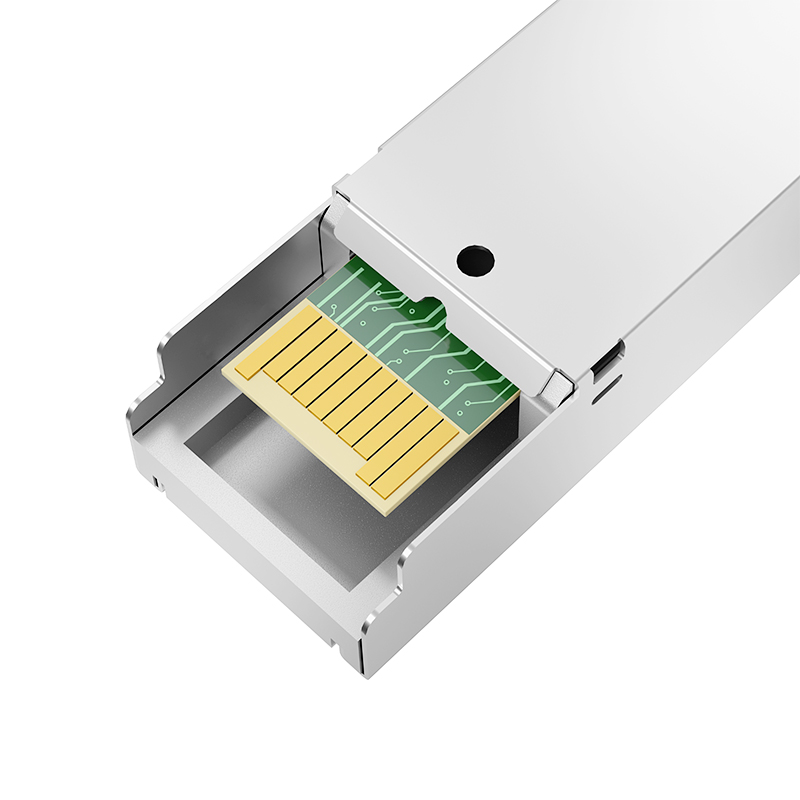

2.5GBASE-LX Single Mode 1310nm SFP 2.5G 2km Dual LC Optic Transceiver Module

Product Description

2.5GBASE-LX Single Mode 1310nm SFP 2.5G 2km Dual LC Optic Transceiver Module

Parameter Specification
Form FactorSFP
Max Data Rate2.5Gbps
Wavelength1310nm
Max Cable Distance2km
ConnectorDuplex LC
MediaSMF
Transmitter TypeFP
Receiver TypePIN
TX Power-10 ~ 3dBm
Receiver Sensitivity< -18dBm
Receiver Overload-3dBm
EMC (Electro Magnetic Compatibility)Supported
DDM/DOMSupported
ProtocolsMSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
SampleAvailable

VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. A full series of optical modules is available for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
2.5G SFP Transceiver

Support Full Range Of 2.5G SFP

Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C2.5Gbps850nm300mMulti-modeYes
LS-MM852G-S5C2.5Gbps850nm550mMulti-modeYes
LS-SM312G-02C2.5Gbps1310nm2kmSingle ModeYes
LS-SM312G-10C2.5Gbps1310nm10kmSingle ModeYes
LS-SM312G-15C2.5Gbps1310nm15kmSingle ModeYes
LS-SM312G-20C2.5Gbps1310nm20kmSingle ModeYes
LS-SM552G-20C2.5Gbps1550nm20kmSingle ModeYes
LS-SM312G-40C2.5Gbps1310nm40kmSingle ModeYes
LS-SM552G-40C2.5Gbps1550nm40kmSingle ModeYes
LS-SM552G-80C2.5Gbps1550nm80kmSingle ModeYes
