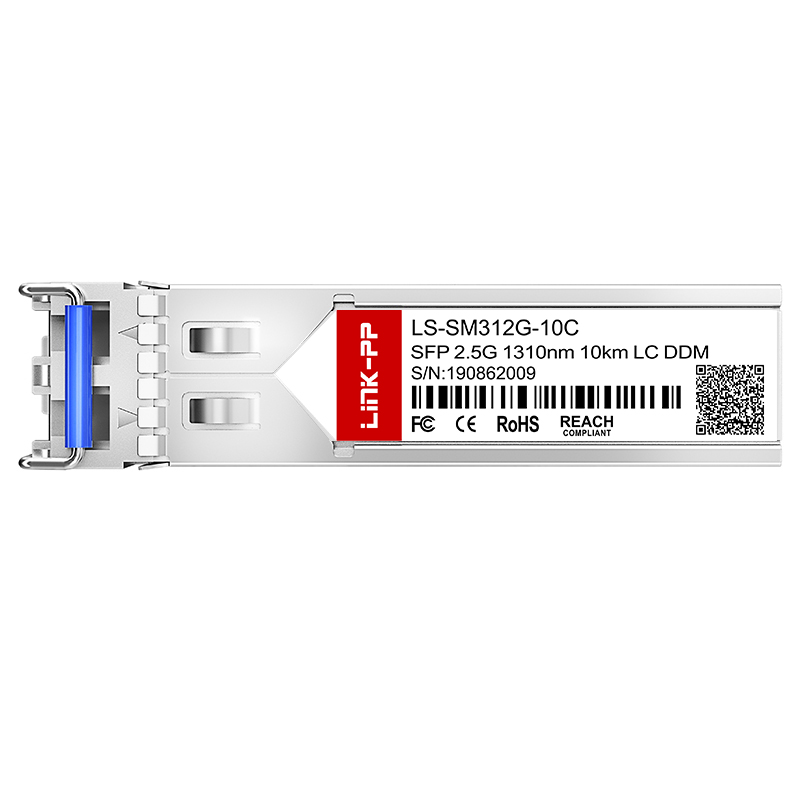

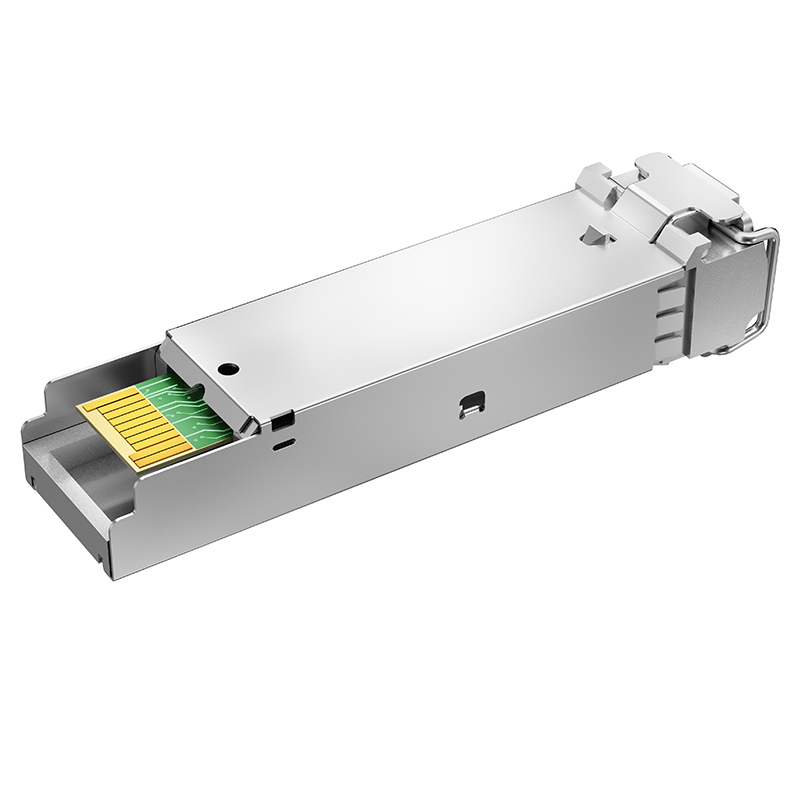

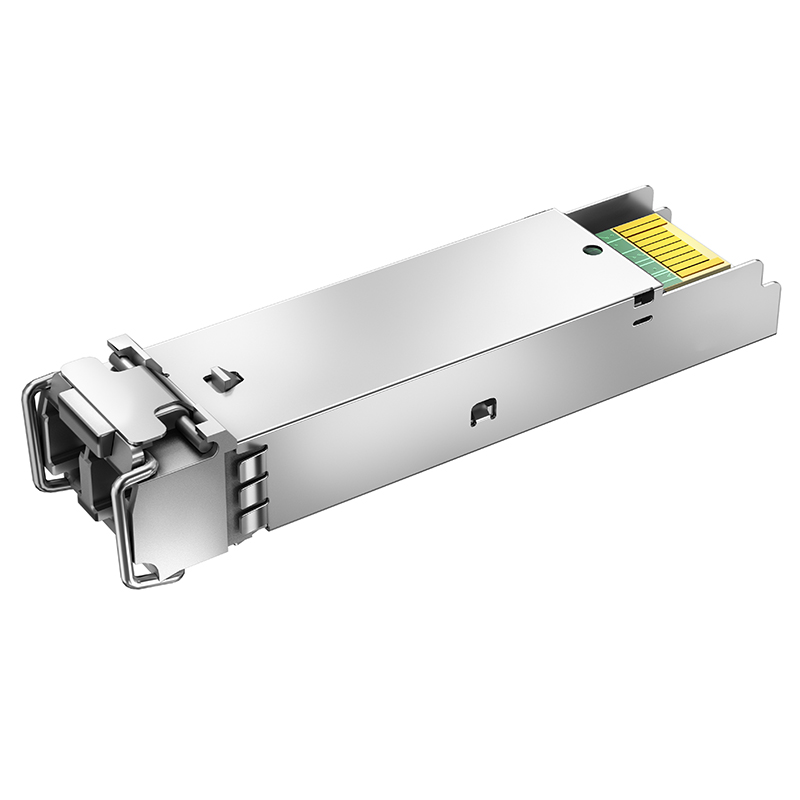

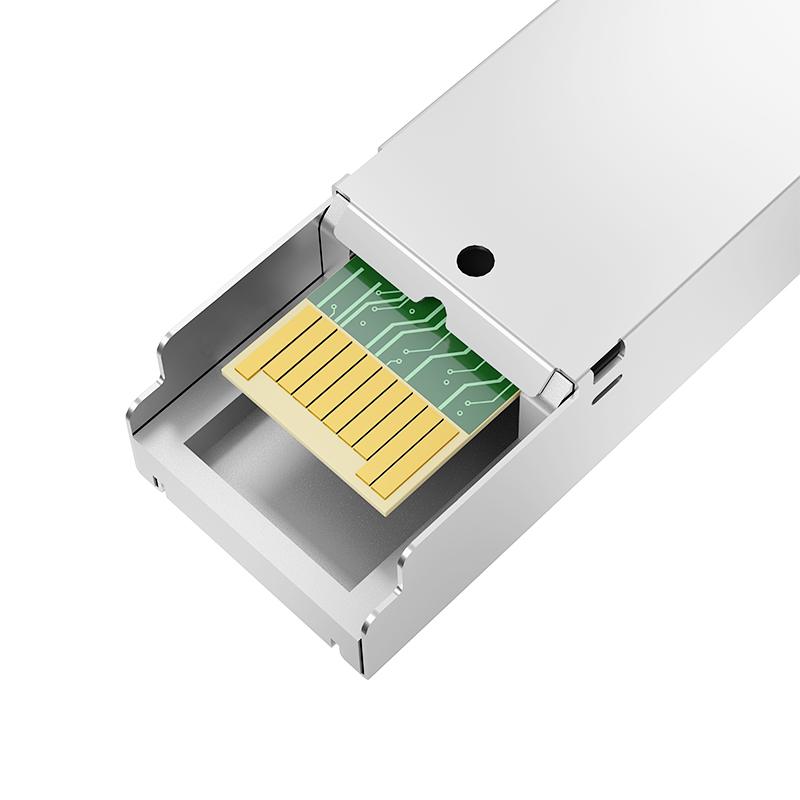

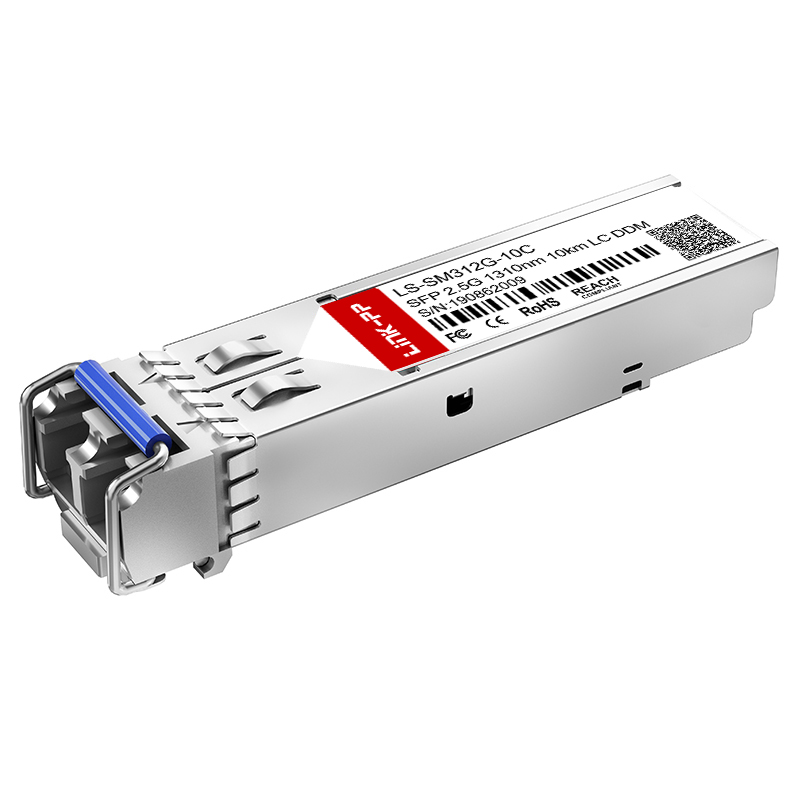

Single Mode 2.5G SFP 1310nm 10km DDM Duplex LC Optical Transceiver Module

Product Description

Single Mode 2.5G SFP 1310nm 10km DDM Duplex LC Optical Transceiver Module
Part No. LS-SM312G-10C
Form Factor SFP
Max Data Rate 2.5Gbps
Wavelength 1310nm
Max Cable Distance 10km
Connector Duplex LC
Media SMF
Transmitter Type FP
Receiver Type PIN
TX Power -11.7 ~ -3dBm
Receiver Sensitivity < -18dBm
Receiver Overload -3dBm
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
💡 VIEW OUR SOLUTIONS
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
2.5G SFP Transceiver
Support Full Range Of 2.5G SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM852G-S3C 2.5Gbps 850nm 300m Multi-mode Yes
LS-MM852G-S5C 2.5Gbps 850nm 550m Multi-mode Yes
LS-SM312G-02C 2.5Gbps 1310nm 2km Single Mode Yes
LS-SM312G-10C 2.5Gbps 1310nm 10km Single Mode Yes
LS-SM312G-15C 2.5Gbps 1310nm 15km Single Mode Yes
LS-SM312G-20C 2.5Gbps 1310nm 20km Single Mode Yes
LS-SM552G-20C 2.5Gbps 1550nm 20km Single Mode Yes
LS-SM312G-40C 2.5Gbps 1310nm 40km Single Mode Yes
LS-SM552G-40C 2.5Gbps 1550nm 40km Single Mode Yes
LS-SM552G-80C 2.5Gbps 1550nm 80km Single Mode Yes
Solutions Map
Product Categorization
Application Scenarios
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, we have developed a series of high-speed optical module which the product rate ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud and Enterprise
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aiming at global communication network constructors, we provide FTTx optical fiber access total solutions covering all-optical or optical copper combined access solutions and products.
FTTx
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Related Products SFP Cage
Related SFP Cage
Why Choose Us
Quality Control
R&D Capacity
Manufacturing Line
Testing Equipment
Company Profile
We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Our company was established in 1997, and we currently have about 2,000 employees. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short time.

In addition, we can provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture, and sell products worldwide.
Factory Office
Manufacturing Plant
FAQ
?1. Are you a factory or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.
?2. Can I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should pay the shipping fee.
?3. What is your delivery time?
Ready to ship for stock items, and 15-30 days for mass production.
?4. What after-service can you offer?
One year guarantee period and we can offer online technical support 24 hours.
?5. Can you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
?6. What is your advantage?
Over 19 years of production experience and we have partnered with top global enterprises for many years.
