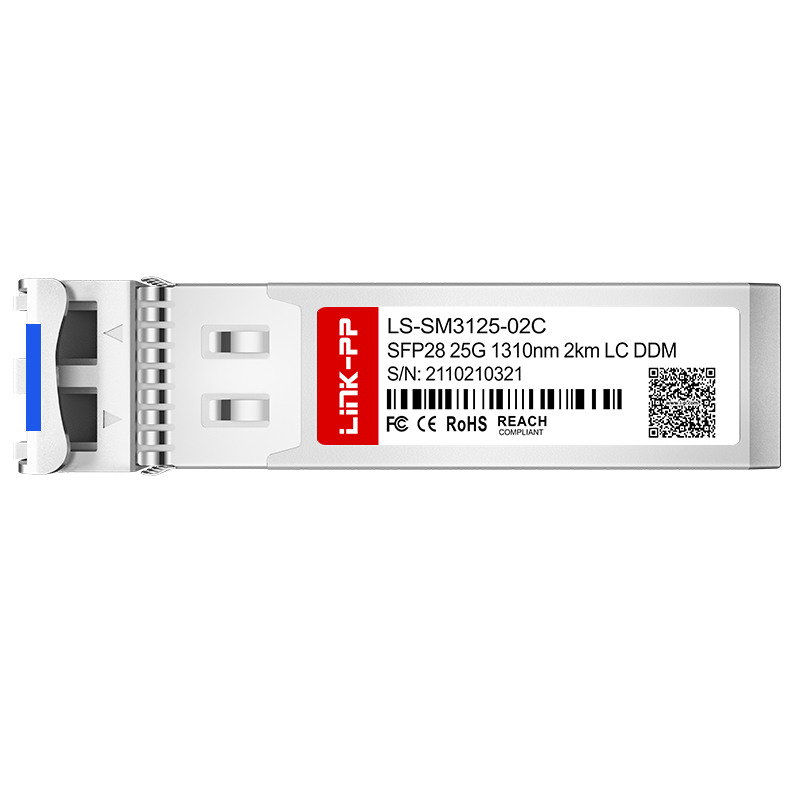

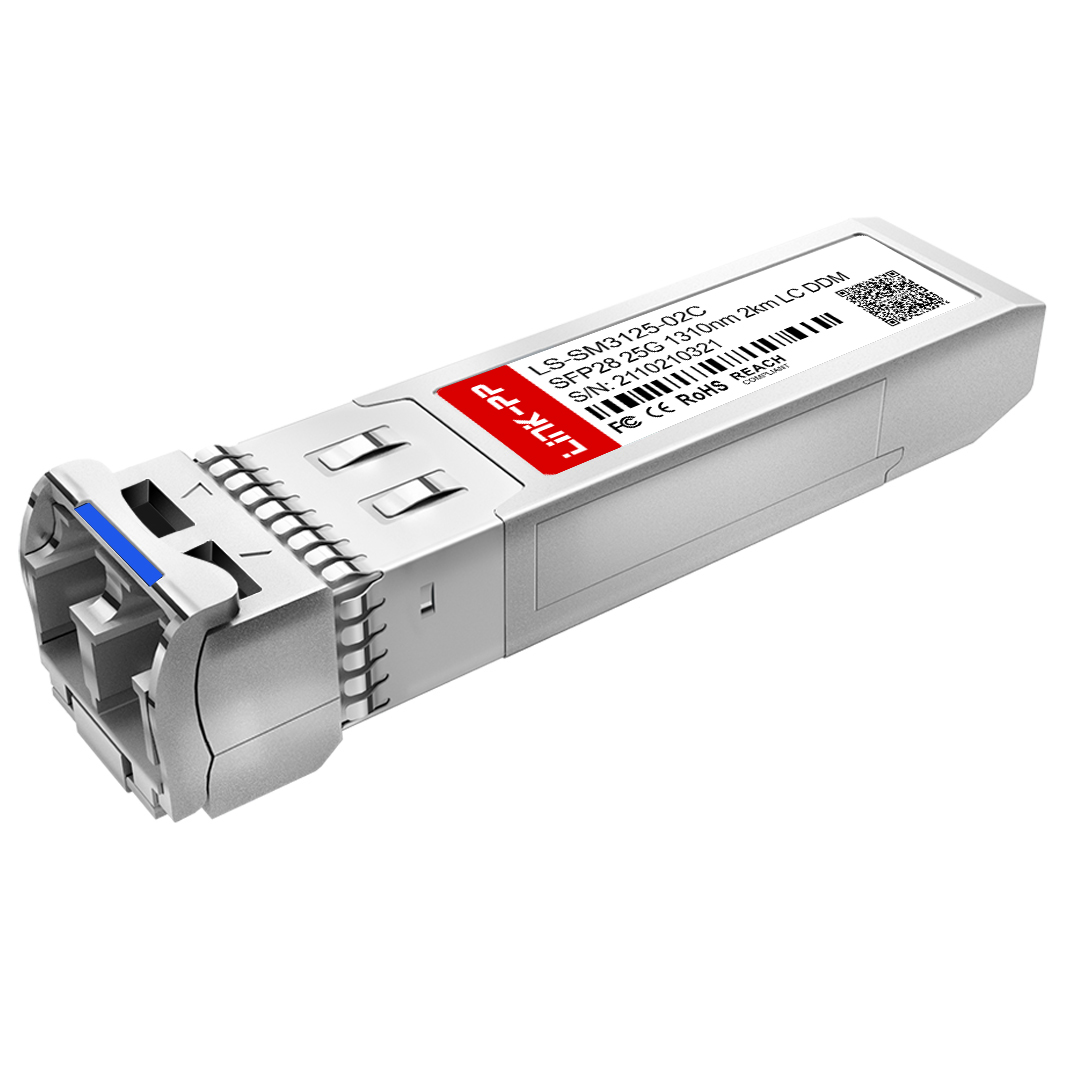

Single Mode 1310nm 25G SFP28 Transceiver 2km SMF LC Fiber Optical Transceiver Module
Products Description
| Item |
25G SFP28 Transceiver |
| Part No. |
LS-SM3125-02C |
| Part Status |
Active |
| Form Factor |
SFP28 |
| Max Data Rate |
25Gbps |
| Wavelength |
1310nm |
| Max Cable Distance |
2km |
| Media |
SMF |
| Connector |
Duplex LC |
| Optical Component |
DFB/PIN |
| TX Power |
-7~2.5dBm |
| Receiver Sensitivity |
<-12dBm |
| Receiver Overload |
2dBm |
| Power Consumption |
1.2W |
| DDM/DOM |
Supported |
| Commercial Temperature Range |
0°C to 70°C / -40°C to 85°C |
| Protocols |
SFP28 MSA, SFF-8472 |
| Warranty |
5 Years |
| Sample |
Available |
VIEW OUR SOLUTION
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transport Networks
End-to-end DWDM devices can be provided with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
High reliability and performance products are provided with mature and efficient lasers and mainstream chip solutions to customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
Aimed at global communication network constructors, total FTTx optical fiber access solutions cover from all-optical or optical copper combined access solutions and products.
Subsystems
To ensure the normal operation of the communication line, the optical cable O&M solution integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
☞ Related Products SFP Cage ☞
Why Choose Us
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
