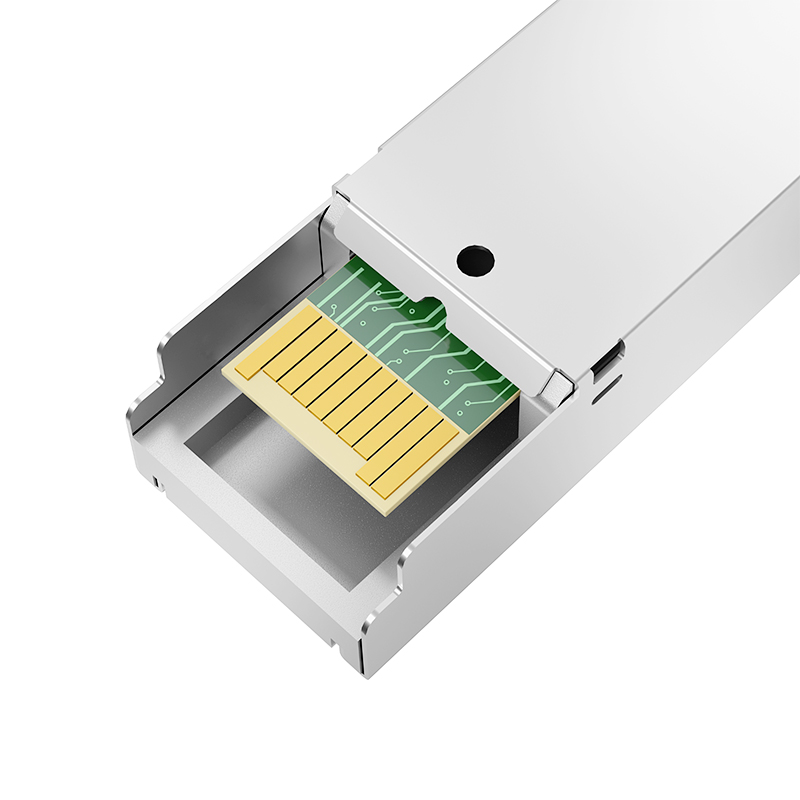

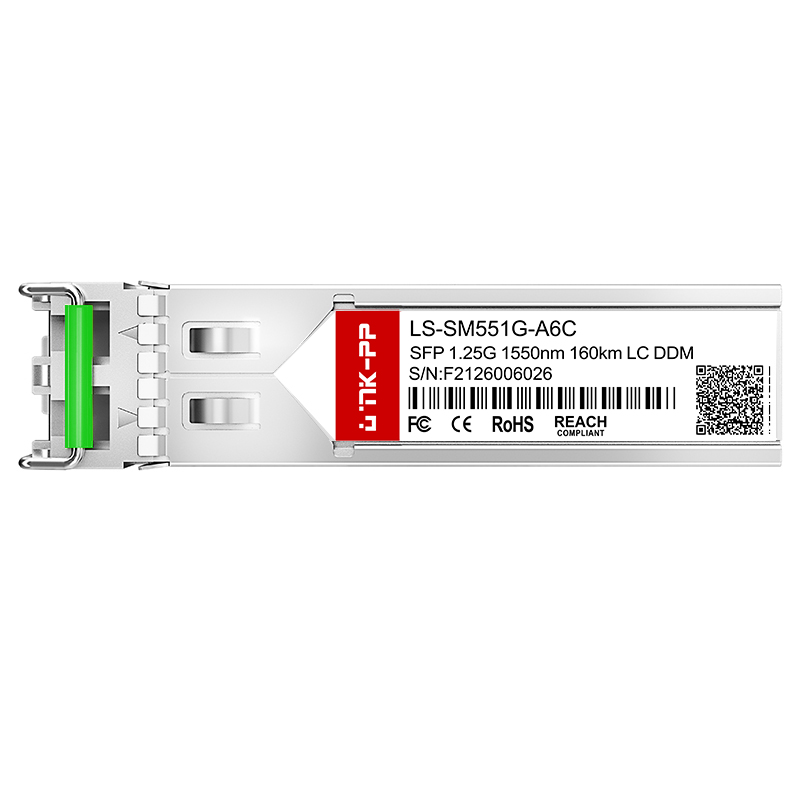

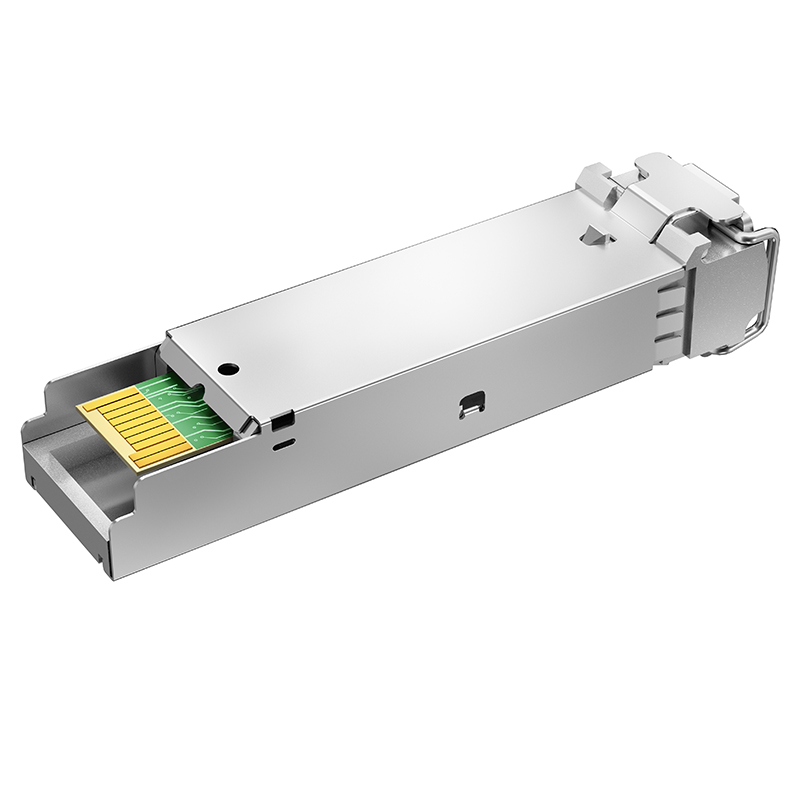

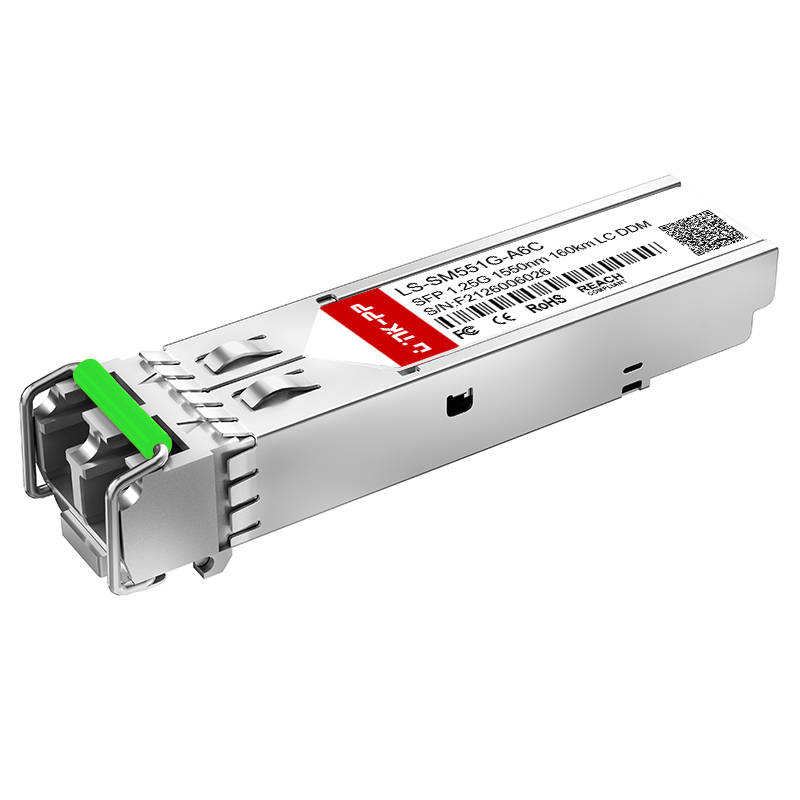

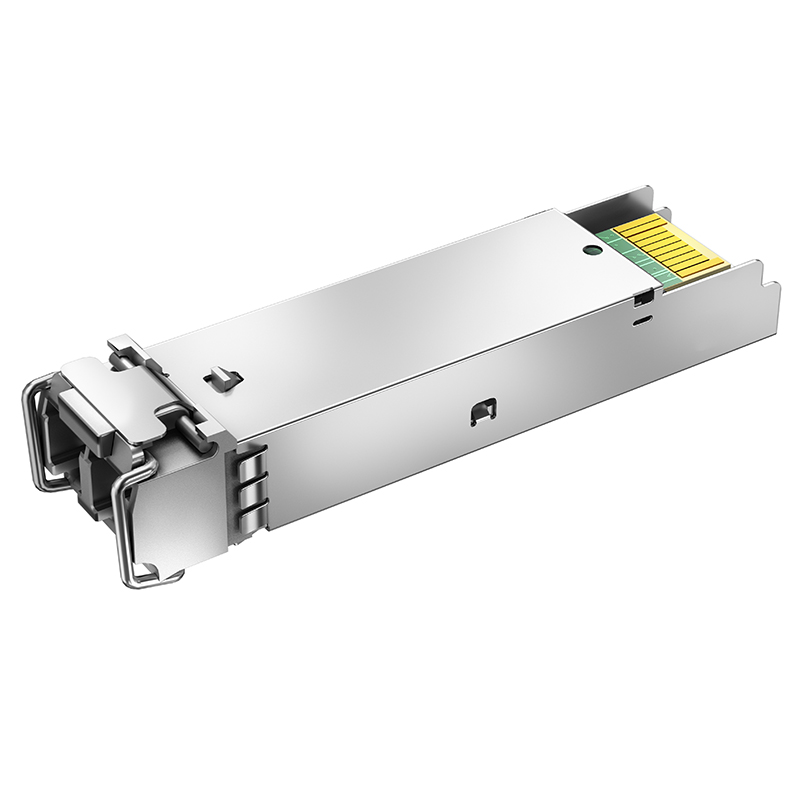

1000BASE-ZXC SFP Module 1550nm 160km Duplex LC SMF Fiber Optical Transceiver

Product Description

1000BASE-ZXC SFP Module 1550nm 160km Duplex LC SMF Fiber Optical Transceiver
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor SFP
Max Data Rate 1000Mbps
Wavelength 1550nm
Max Cable Distance 160km
Fiber Type SMF
Media 1x1 Port
Connector LC
Power Consumption <1W
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
EMC (Electro Magnetic Compatibility) Supported
MTBF 1,000,000 Hours
Protocols IEEE Std 802.3 and 802.3ab, SFP MSA Compliant
Warranty 5 Years
Sample Available
Optical Transceiver Overview
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Solution Mapping
Optical Transport Networks
Optical Transport Networks
We can provide end-to-end DWDM device with almost all optical devices - from active modules to optical passive devices, including optical amplifier (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR etc.
Cloud and Enterprise
Cloud and Enterprise
To meet the demand of mass data transmission in data centers, a series of high-speed optical modules has been developed with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Wireless
Wireless
We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul, and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.
FTTx
FTTx
Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.
Subsystems
Subsystems
To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).
Subsystem Details
Production Process 1 Production Process 2
Related Products SFP Cage
Related SFP Cage 1 Related SFP Cage 2
Why Choose Us
Quality Assurance Technical Support Fast Shipping Production Capacity
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL, owning advanced manufacturing facilities and testing equipment.

Established in 1997, we have around 2000 staff at present. With an abundant production capacity of 3000K per month, we are able to deliver products within a short time.

Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
Factory Overview Testing Equipment
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
Can I get a sample before mass production?
Yes, we can offer you free samples to test the quality, but the shipping fee should be covered by the buyer.
What is your delivery time?
We are ready to ship for stock items, and the lead time is 15-30 days for mass production.
What after-service do you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, please send your inquiry to us so that we can have a detailed discussion on your requirements.
What is your advantage?
We have over 19 years of professional manufacturing experience and have been a trusted partner of major global technology brands for many years.
